078115631R Tube For Oil Dipstick
- 078115609ENot stocked
Apr 1998 - 078115609QNot stocked
Jun 2002 - 078115631RThis pageDiscontinued
May 2020
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

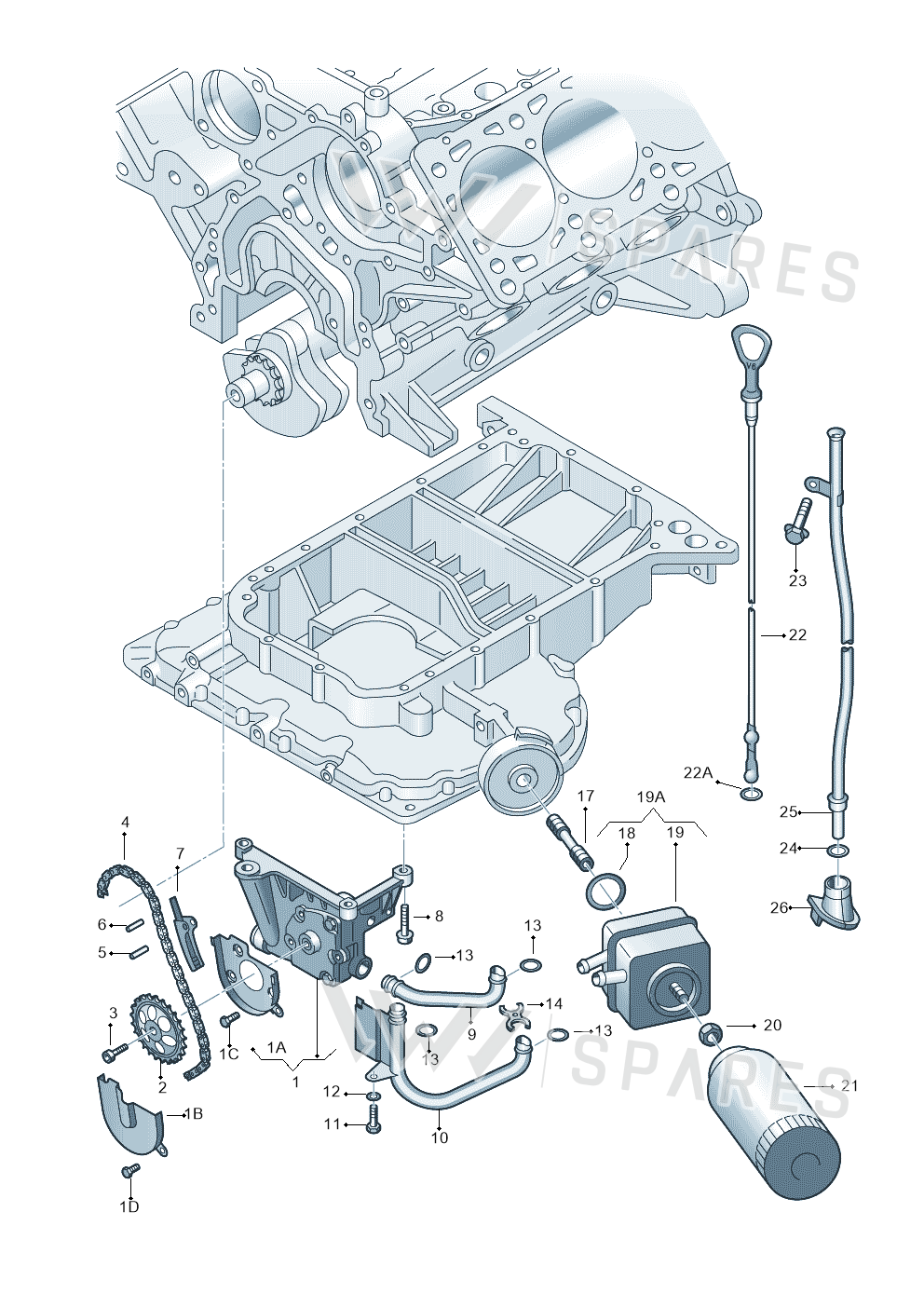

25 vehiclesTube For Oil Dipstick — locate Tube For Oil Dipstick in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Part 078115105D
- 1AProt Plate 078115142C
- 1BProt Plate 078115132C
- 1CBolt N01021720
- 1DBolt N10100503
- 2Chn Sprckt 078115121C
- 3Bolt N90365907
- 4Chain 078115125
- 5Part N10105801
- 6Sleeve N0133351
- 7Tensioner 078115124
- 8Screw N90215602
- 9Oil Pipe 078115278B
- 10Oil Pipe 078115277C
- 11Bolt N01021527
- 12Washer N01152423
- 13Seal Ring N90613201
- 14Strap 078115271A
- 17Union 028115721
- 18Seal 038117070A
- 19Oil Cooler 078117021A
- 20Part 068115723
- 21Oil Filter 078115561J
- 22Oil Dipsti 078115611N
- 23Bolt N10005204
- 24Seal Ring 034115427B
Vehicle fitment table25
Europe (21)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT/4MOTION/W8 | 2002-2005 | 25 | 1 | T7F | |
| SUPERB 02> | 2001- | 25 | 1 | ||
| Audi A6/Wagon/quattro | 2001-2004 | 25 | 1 | ASM,AMM,BDV | D0N,D5B,MT3 |
| PASSAT 00> | 2000- | 25 | 1 | G0F | |
| Passat/4Motion/W8 | 2000-2002 | 25 | 1 | T7F | |
| Audi A8 quattro | 1999-2002 | 25 | 1 | ||
| AUDI A8 | 1998-2002 | 25 | 1 | ||
| Passat syncro/4Motion | 1998-2000 | 25 | 1 | ||
| Audi A6/Avant | 1997-2001 | 25 | 1 | AGA,AJG,ALW, | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 25 | 1 | AGA,AJG,ALG, | |
| Passat | 1997-2000 | 25 | 1 | ||
| Audi A4/Avant F8D-W-> | 1997-1998 | 25 | 1 | AGA,ALF,ACK, | |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 25 | 1 | ALF,AGA,AJG, | |
| Audi A8 | 1996-1998 | 25 | 1 | ACK | |
| Audi A8 qu. | 1996-1998 | 25 | 1 | ACK | |
| Audi A6/S6/Wg.qu.F>4A | 1996-1997 | 25 | 1 | ACK | |
| Audi A6/Wagon F >4A-W | 1996-1997 | 25 | 1 | ACK | |
| Audi A4 F>8D-W-.. | 1995-1997 | 25 | 1 | ACK | |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 25 | 1 | ACK | |
| Audi A6/Wagon 96 | 1995-1996 | 25 | 1 | ACK | |
| Audi A6/S6/Wagon qu. 96 | 1995-1996 | 25 | 1 | ACK |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT LINGYU "CN."06> | 2005- | 25 | 1 | G0F | |
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 25 | 1 | ||
| AUDI A6L CHINA | 1999-2005 | 25 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 3B0 platform | 25 |
Diagrams & fitment data powered by oemdiagrams.com
Tube For Oil Dipstick is fitted on: PASSAT/4MOTION/W8 2002-2005; SUPERB 02> 2001-; Audi A6/Wagon/quattro 2001-2004; PASSAT 00> 2000-; Passat/4Motion/W8 2000-2002; Audi A8 quattro 1999-2002; AUDI A8 1998-2002; Passat syncro/4Motion 1998-2000; Audi A6/Avant 1997-2001; Audi A6/Av.qu.F4B-W-> 1997-2001; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A8 1996-1998; Audi A8 qu. 1996-1998; Audi A6/S6/Wg.qu.F>4A 1996-1997; Audi A6/Wagon F >4A-W 1996-1997; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997; Audi A6/Wagon 96 1995-1996; Audi A6/S6/Wagon qu. 96 1995-1996; PASSAT LINGYU "CN."06> 2005-; AUDI A4/AV./QU. "CN"03>05 2003-2005; AUDI A6L CHINA 1999-2005; 3B0 platform.
