078121075AF Coolant Pipe
- 078121075HNot stocked
Jun 1998 - 078121075KNot stocked
Mar 2000 - 078121075MNot stocked
Sep 2001 - 078121075RNot stocked
Apr 2000 - 078121075ABNot stocked
Sep 2010 - 078121075AFThis pageDiscontinued
Aug 2020
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

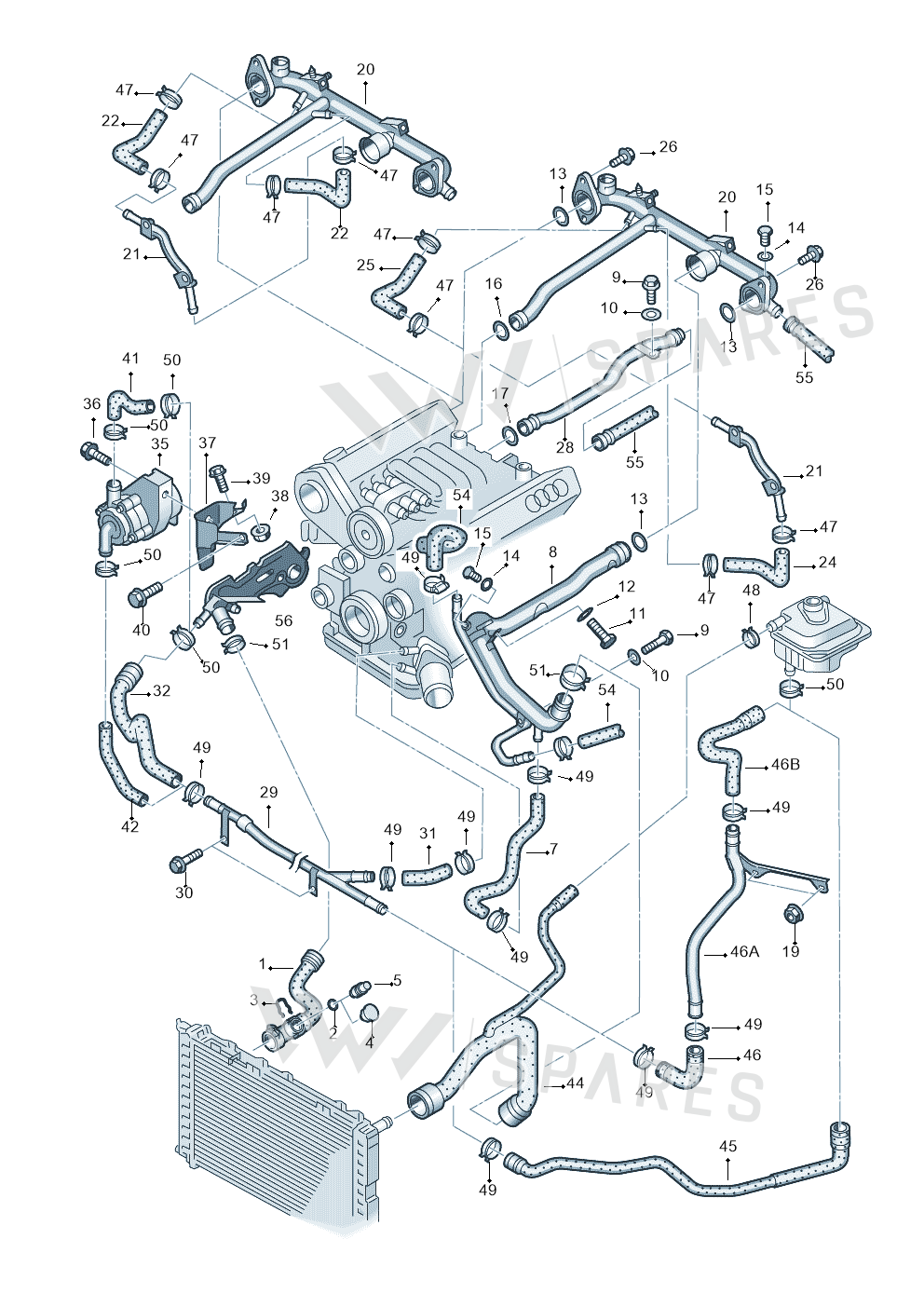

5 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly46
- 1Hose 8D0121055T
- 1Part 8D0121055AA
- 2Seal Ring N90316801
- 3Spring 032121142
- 4Bungs 357121140
- 7Hose 078121058AT
- 8Water Pipe 078121070CG
- 9Screw N01470213
- 9Screw N01470210
- 10Washer N01152423
- 11Bolt N01024022
- 12Washer N90179103
- 13Seal Ring N90912501
- 14Seal Ring N0138115
- 15Screw N0160243
- 16Seal Ring N90380002
- 17Seal Ring N90365302
- 19Collar Nut N01508210
- 20Water Pipe 078121071BS
- 24Hose 078121188B
- 25Hose 078121188A
- 26Screw N90271604
- 28Water Pipe 078121075AB
- 29Water Pipe 078121081Q
- 30Bolt N01953310
- 31Hose 078121096AD
- 32Hose 078121096AM
- 35Pump 078121601B
- 36Bolt N10124408
- 37Bracket 078121521E
- 38Part N01100840
- 39Bolt N10668401
- 40Bolt N10338903
- 40Bolt N10338901
- 41Part 078121096L
- 42Part 078121096AN
- 44Hose 8D0121101AF
- 46Hose 078121096AP
- 46AWater Pipe 078121065N
- 46BHose 8D0121109N
- 47Clamp N10292201
- 48Clamp N90770201
- 48Clamp N90655301
- 49Clamp N90686902
- 50Clamp N90687001
- 51Clamp N90687201
Vehicle fitment table5
Europe (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| SUPERB 02> | 2001- | 28 | 1 | |
| Audi A6/Wagon/quattro | 2001-2004 | 16 | 1 | T7Z,8Z5,8Z8 |
| AUDI RS4 AV. QU. | 2000-2001 | 16 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 28 | 1 | |
| AUDI A6L CHINA | 1999-2005 | 11 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: SUPERB 02> 2001-; Audi A6/Wagon/quattro 2001-2004; AUDI RS4 AV. QU. 2000-2001; AUDI A4/AV./QU. "CN"03>05 2003-2005; AUDI A6L CHINA 1999-2005.
