078198627 Repair Set For Var Intake Manifold
- 078198627This pageNot stocked
Apr 2012 - 078198627ACurrent · not stocked
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

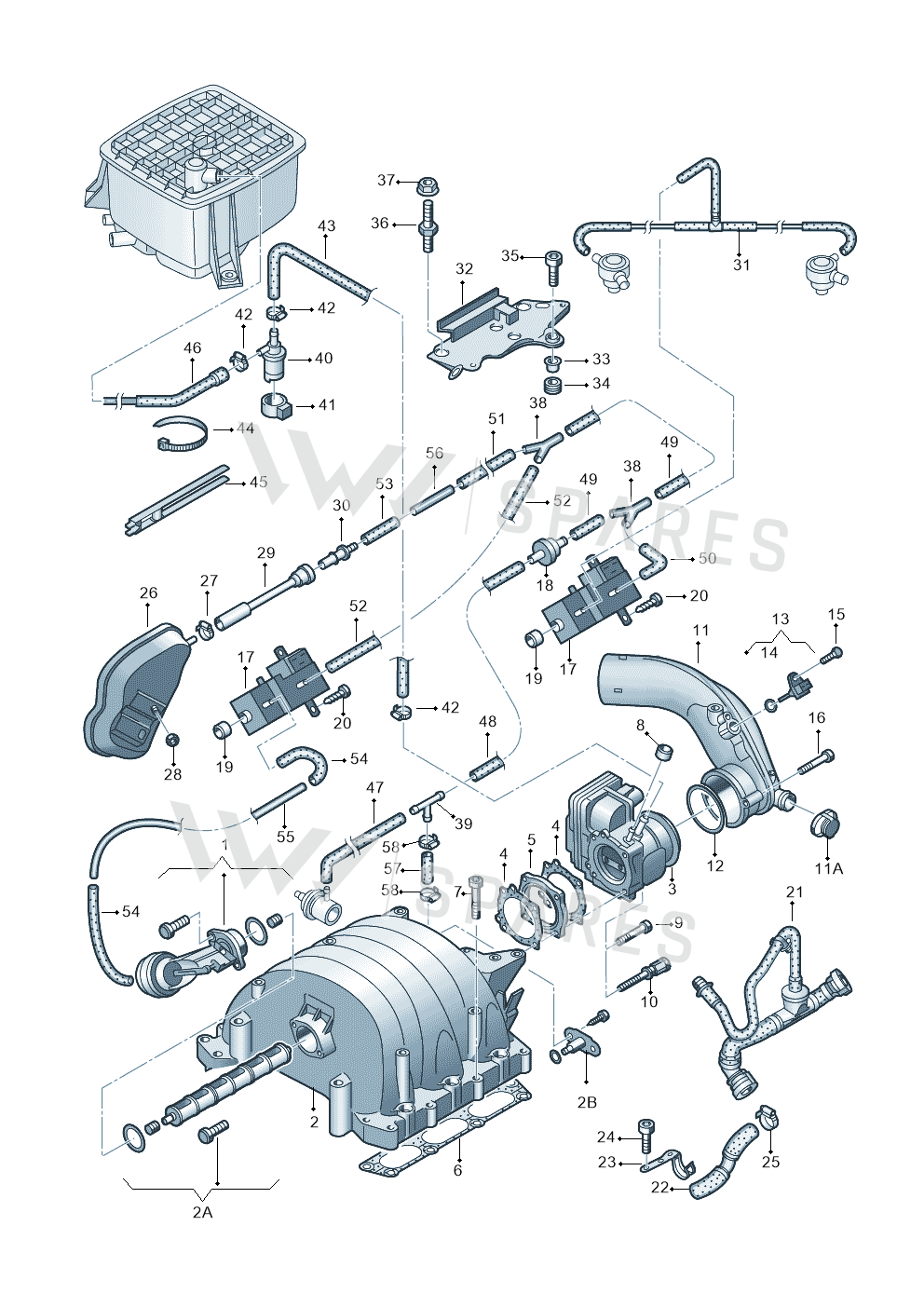

10 vehiclesRepair Set For Var Intake Manifold — locate Repair Set For Var Intake Manifold in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Drive 078133619
- 2Part 078133201BJ
- 2BPart 078198667
- 3Adapter 078133062B
- 4Seal 078133073B
- 5Plate 078133461
- 6Seal 078129717J
- 7Screw N90338204
- 8Cap Closure 034133335
- 9Screw N10158203
- 10Bush 078133675A
- 11Air Guide 078133356S
- 11APart 078133335
- 12Seal 078129949C
- 13Temperature Sensor 06B905379D
- 14Seal Ring 095323969
- 15Bolt 058133479A
- 17Valve 026906283J
- 18Valve 433862117
- 19Part 078906315
- 20Screw N0139655
- 21Pump 078133701AN
- 22Hose 078103221AK
- 22Hose 078103221AH
- 23Bracket 078133419A
- 24Screw N10248001
- 25Clamp N90409501
- 26Tank 8D0131541B
- 27Clamp N10196901
- 28Part N90488005
- 29Press Pipe 8E0201935D
- 30Connection 06C133382
- 31Line 078145718AE
- 32Plate 078133365C
- 33Spacer 078129734A
- 34Grommet 078129669
- 35Screw N10080102
- 36Bolt N90551602
- 37Collar Nut N01508213
- 38Y-piece 056129971
- 38Y-piece 2D0133381
- 38ATpiece 2D0129737A
- 39Tpiece 078129737A
- 40Valve 1C0906517A
- 41Thrustring 8E0133459
- 42Clamp N10233401
- 43Hose 078133394J
- 44Cable Tie 3D0971838N
Vehicle fitment table23
Europe (8)
| Vehicle | Years | Pos. |
|---|---|---|
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 2A |
| PASSAT/4MOTION/W8 | 2002-2005 | 2A |
| Audi A4/S4/Av./qu. | 2001-2004 | 2A |
| Audi A6/Wagon/quattro | 2001-2004 | 2A |
| PASSAT 00> | 2000- | 2A |
| Passat/4Motion/W8 | 2000-2002 | 2A |
| Passat syncro/4Motion | 1998-2000 | 2A |
| Passat | 1997-2000 | 2A |
Other markets (2)
| Vehicle | Years | Pos. |
|---|---|---|
| PASSAT LINGYU "CN."06> | 2005- | 2A |
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 2A |
Listed without a diagram position (13)
| Vehicle | Years | Pos. |
|---|---|---|
| Audi A8 quattro | 1999-2002 | |
| Audi A4/Avant | 1999-2001 | |
| Audi A4/Av.qu. | 1999-2001 | |
| AUDI A8 | 1998-2002 | |
| Audi A6/Avant | 1997-2001 | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | |
| Audi A4/Avant F8D-W-> | 1997-1998 | |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | |
| Audi A6/S6/Wg.qu.F>4A | 1996-1997 | |
| Audi A4 F>8D-W-.. | 1995-1997 | |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | |
| Audi A6/Wagon 96 | 1995-1996 | |
| Audi A6/S6/Wagon qu. 96 | 1995-1996 |
Diagrams & fitment data powered by oemdiagrams.com
Repair Set For Var Intake Manifold is fitted on: Audi A4/S4 Cabrio./qu. 2002-2006; PASSAT/4MOTION/W8 2002-2005; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; PASSAT 00> 2000-; Passat/4Motion/W8 2000-2002; Passat syncro/4Motion 1998-2000; Passat 1997-2000; PASSAT LINGYU "CN."06> 2005-; AUDI A4/AV./QU. "CN"03>05 2003-2005.
