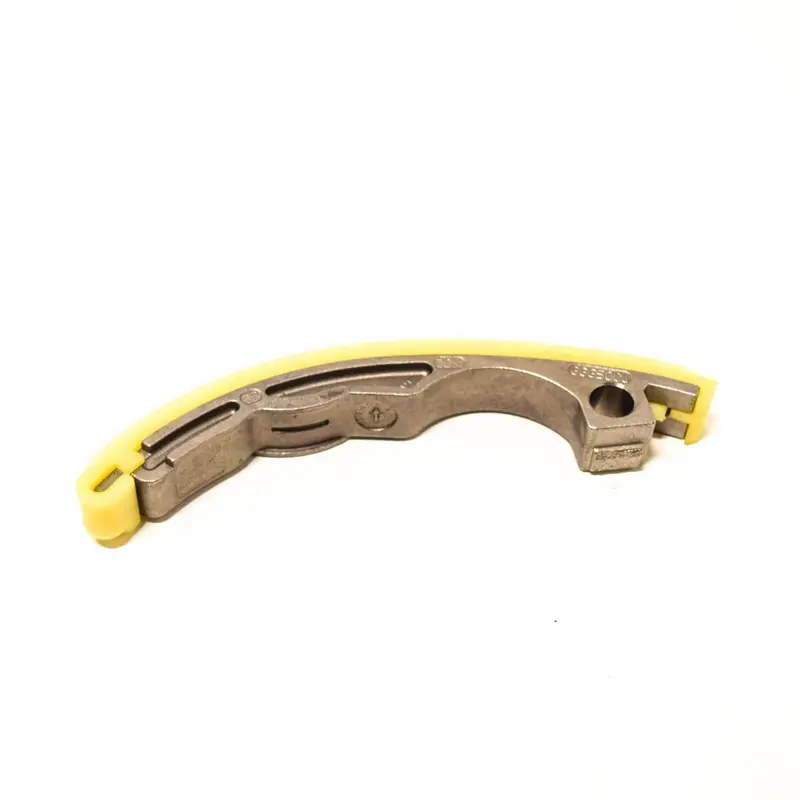

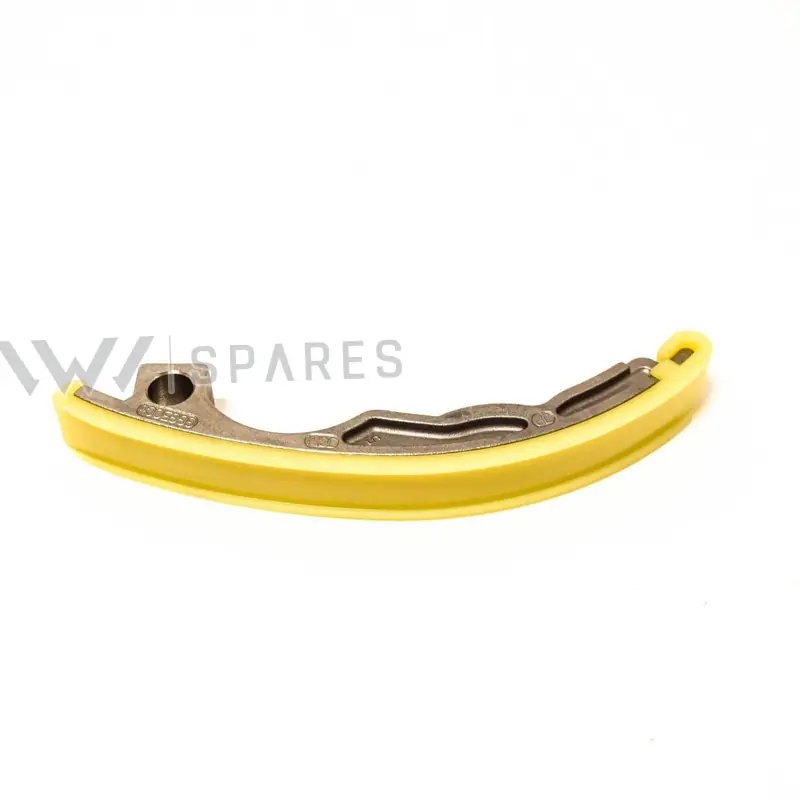

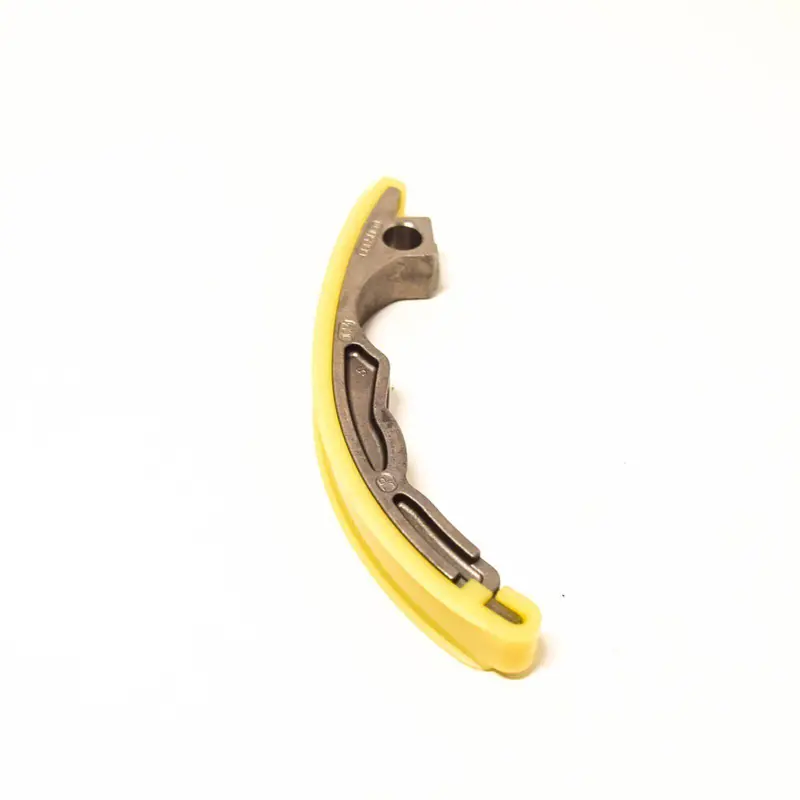

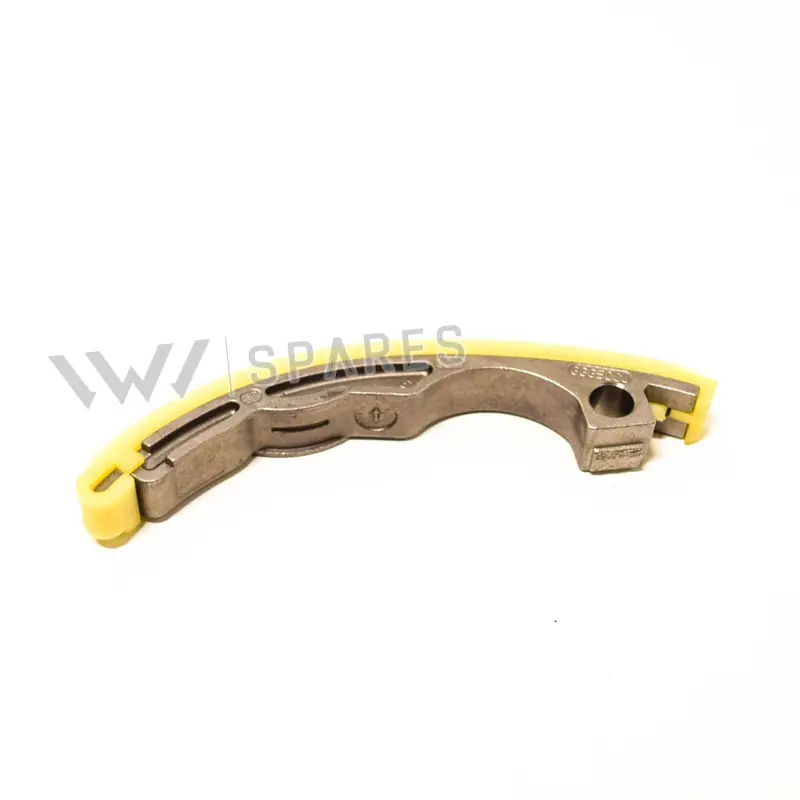

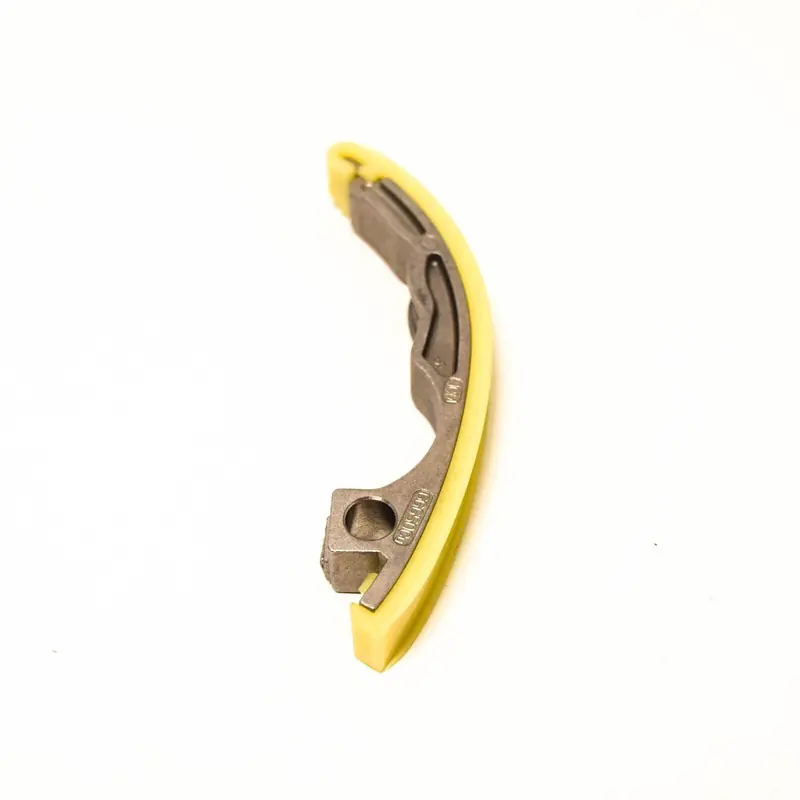

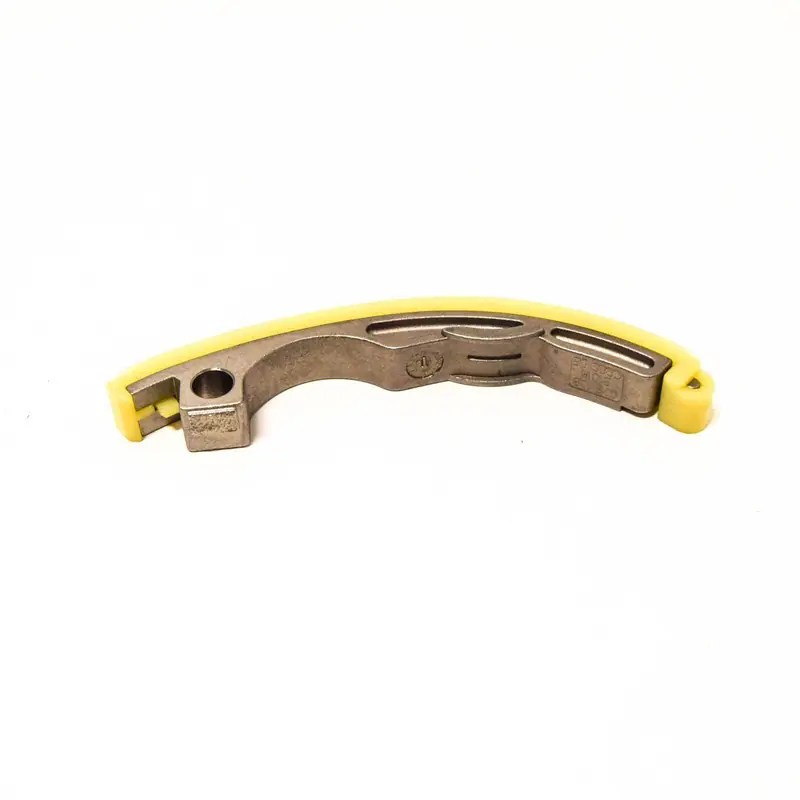

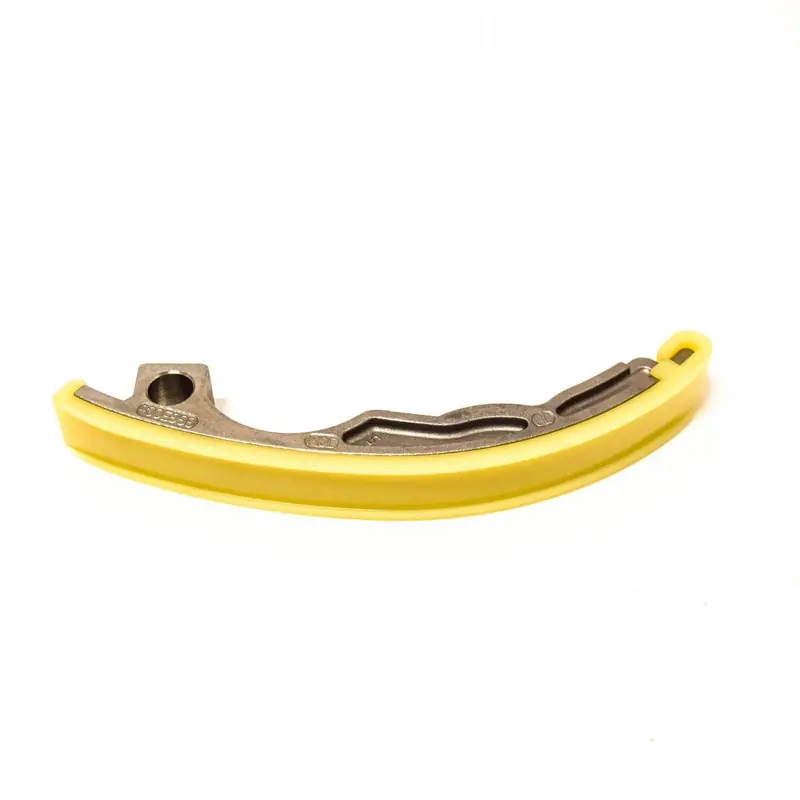

Genuine OEM Audi Timing Chain Guide Rail, part number 079109510M. This component is crucial for the engine's timing system, providing a smooth and controlled path for the timing chain. Its function is to guide the chain, preventing slack and ensuring precise synchronization between the crankshaft and camshafts, which is vital for valve operation. The rail features a durable metal base with a low-friction polymer surface, measuring approximately 0.149 meters in length. Choosing a genuine OEM guide rail ensures exact dimensions, material quality, and resistance to wear, critical for the long-term reliability and performance of the engine's timing mechanism.
Catalogue entry: RAIL right.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 14.9 × 3.8 × 1.8 cm
- Shipping weight
- 0.14 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- G1G
- TE5
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
30 vehiclesGuide Rail — locate 079109510M Audi Timing Chain Guide Rail | Engine Timing in the official exploded view and explore the surrounding assembly.
Parts in this assembly42
- 1Timing Cha 059109229J
- 2Chn Sprckt 059109077E
- 3Chn Sprckt 057109077
- 4Washer WHT000124
- 5Part 057109224D
- 6Screw N10660901
- 7Part 057109224B
- 8Bolt N90954903
- 9Washer 079109435G
- 10Bolt N10451409
- 11Tensioner 06E109467H
- 12Seal Ring N90364901
- 13Bolt N10124304
- 15Screw WHT000265
- 16Rail 057109469G
- 17Rail 057109469H
- 18Bolt N10156205
- 21Plate 057109359H
- 22Chn Sprckt 079109570AP
- 23Bolt N90893202
- 24Seal 079103051J
- 25Bush 079109135E
- 26Ring N0124161
- 27Seal Ring N90740801
- 28Screw N10582103
- 29Press Spring 079109481C
- 31Chn Sprckt 079109570AD
- 32Plate 079109315
- 33Part 079109512E
- 35Tensioner 059109507D
- 36Seal 079109139M
- 37Screw N10554002
- 39Timing Cha 059109229N
- 41Timing Cha 059109229K
- 42Tensioner 057109218K
- 44Chn Sprckt 057109116J
- 45Screw N91052201
- 46Timing Cha 059109229M
- 47Tensioner 057109510A
- 49Tensioner 057109217J
- 51Seatrunner 057109513B
- 53Chn Sprckt 057109116H
Compatible / alternative parts(12)
Vehicle fitment table30
Europe (28)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Touareg BlueMotion | 2014-2018 | 14 | 1 | ||
| Audi A8L qu. 3.0 TDI | 2013-2018 | 13 | 1 | G1G | |
| touareg | 2012-2014 | 14 | 1 | D57 | |
| phaeton 4motion | 2010-2016 | 14 | 1 | ||
| touareg | 2010-2012 | 14 | 1 | T41 | |
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 10, 13 | 1 | ||
| Audi A8L qu. 3.0 TDI | 2009-2014 | 13 | 1 | G1G | |
| Audi A4 Av. Allroad | 2008-2016 | 10 | 1 | ||
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 10 | 1 | ||
| Audi A5 Cabrio 2.0 | 2008-2012 | 10 | 1 | D1W | |
| Audi A6 2.7 TDI | 2008-2011 | 27, 10 | 1 | BKH | D2G |
| phaeton 4motion | 2008-2010 | 14 | 1 | D50 | |
| Audi RS4 Cabrio qu. 08> | 2007- | 27 | 1 | D0W | |
| Audi R8 08> | 2007- | 27 | 1 | ||
| Audi A5/S5 Coupe 08> | 2007- | 10 | 1 | ||
| Audi A8/S8/qu. lang 08> | 2007- | 27, 28 | 1 | D62 | |
| AUDI A4 08> | 2007- | 10 | 1 | D4V | |
| Touareg 08> | 2007- | 12, 14 | 1 | D1T | |
| PHAETON 08> | 2007- | 14 | 1 | D1D | |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 27, 32, 28 | 1 | D2G | |
| Audi Q7 07> | 2006- | 28, 10 | 1 | ||
| AUDI A6 QU.ALLROAD 07> | 2006- | 27, 28 | 1 | D2G | |
| Audi A4/S4/Av./qu. 05> | 2005- | 27, 32, 28 | 1 | D2G | |
| Touareg | 2005-2006 | 12 | 1 | D1T | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 27, 28, 32 | 1 | ||
| Audi A8/S8/qu. lang | 2003-2007 | 28, 27 | 1 | D1D | |
| Phaeton (lang) | 2003-2006 | 12 | 1 | D1T | |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 32 | 1 | D5E |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 10 | 1 | ||
| MARINE-MOTOR 02> | 2002- | 12, 14 | 1 |
