07C133588 Shouldered Bolt
- 07C133588This pageNot stocked
Apr 2019 - 07C133588DDiscontinued
Apr 2025
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

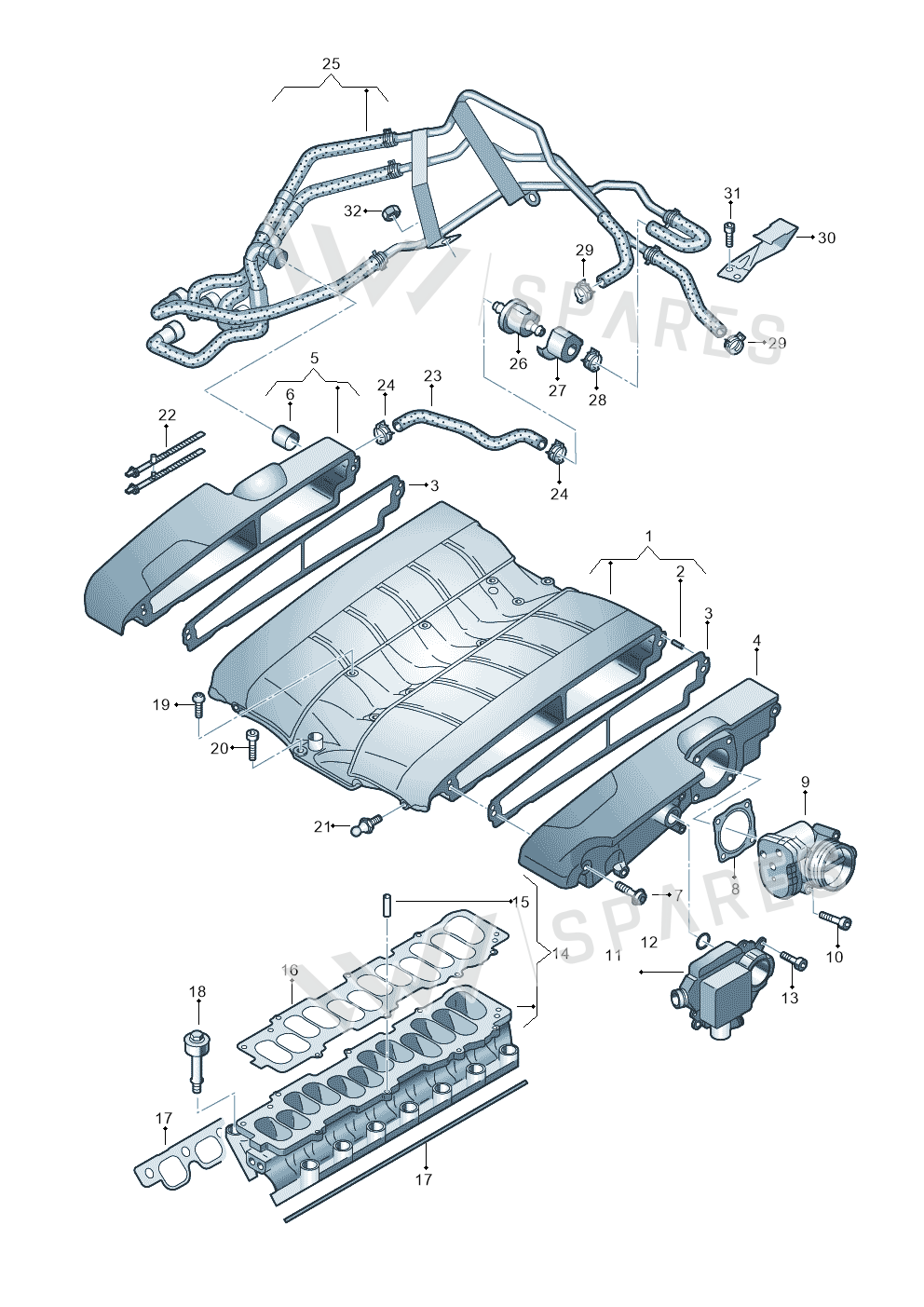

10 vehiclesShouldered Bolt — locate Shouldered Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Manifold 07C133201AH
- 2Part N10527801
- 3Seal 07C133496K
- 4Intake ManLeft07C133263S
- 5Intake ManRight07C133262S
- 6Part 8E0201144
- 7Bolt N10646901
- 8Seal 021133073D
- 9Thr Flap 07C133062
- 10Screw N10127002
- 11SeparatorRight07C103464F
- 11SeparatorLeft07C103464G
- 12Seal Ring WHT001301
- 13Bolt N10124306
- 14Manifold 07C133204P
- 16Seal 07C133238H
- 17Seal 07C129717D
- 19Bolt N91071701
- 20Screw N10405702
- 21Ball Screw WHT000341
- 21Ball Screw WHT000355
- 22Binder 4A0820199
- 23Hose 07C133371E
- 24Clamp N90686701
- 25Fuelline 3D0133986AC
- 26Valve 06D133517B
- 27Thrustring 058133459
- 28Clamp N90768301
- 30Retainer 3D0133519K
- 31Screw N10546403
- 32Collar Nut N01508213
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| phaeton 4motion | 2010-2016 | 18 | 14 | |
| phaeton 4motion | 2008-2010 | 18 | 14 | |
| PHAETON 08> | 2007- | 18 | 14 | |
| Touareg | 2005-2006 | 18 | 14 | |
| Audi A8/S8/qu. lang | 2003-2007 | 17 | 14 | T1H |
| Phaeton (lang) | 2003-2006 | 18 | 14 | |
| Touareg | 2003-2005 | 18 | 14 | |
| PASSAT/4MOTION/W8 | 2002-2005 | 9 | 10 | |
| Passat/4Motion/W8 | 2000-2002 | 9 | 10 | |
| Audi A8 quattro | 1999-2002 | 23 | 14 |
Diagrams & fitment data powered by oemdiagrams.com
Shouldered Bolt is fitted on: phaeton 4motion 2010-2016; phaeton 4motion 2008-2010; PHAETON 08> 2007-; Touareg 2005-2006; Audi A8/S8/qu. lang 2003-2007; Phaeton (lang) 2003-2006; Touareg 2003-2005; PASSAT/4MOTION/W8 2002-2005; Passat/4Motion/W8 2000-2002; Audi A8 quattro 1999-2002.
