07C133588L Grommet
- 07C133588CNot stocked
Dec 2011 - 07C133588LThis pageNot stocked
Sep 2011 - 07C133588GCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

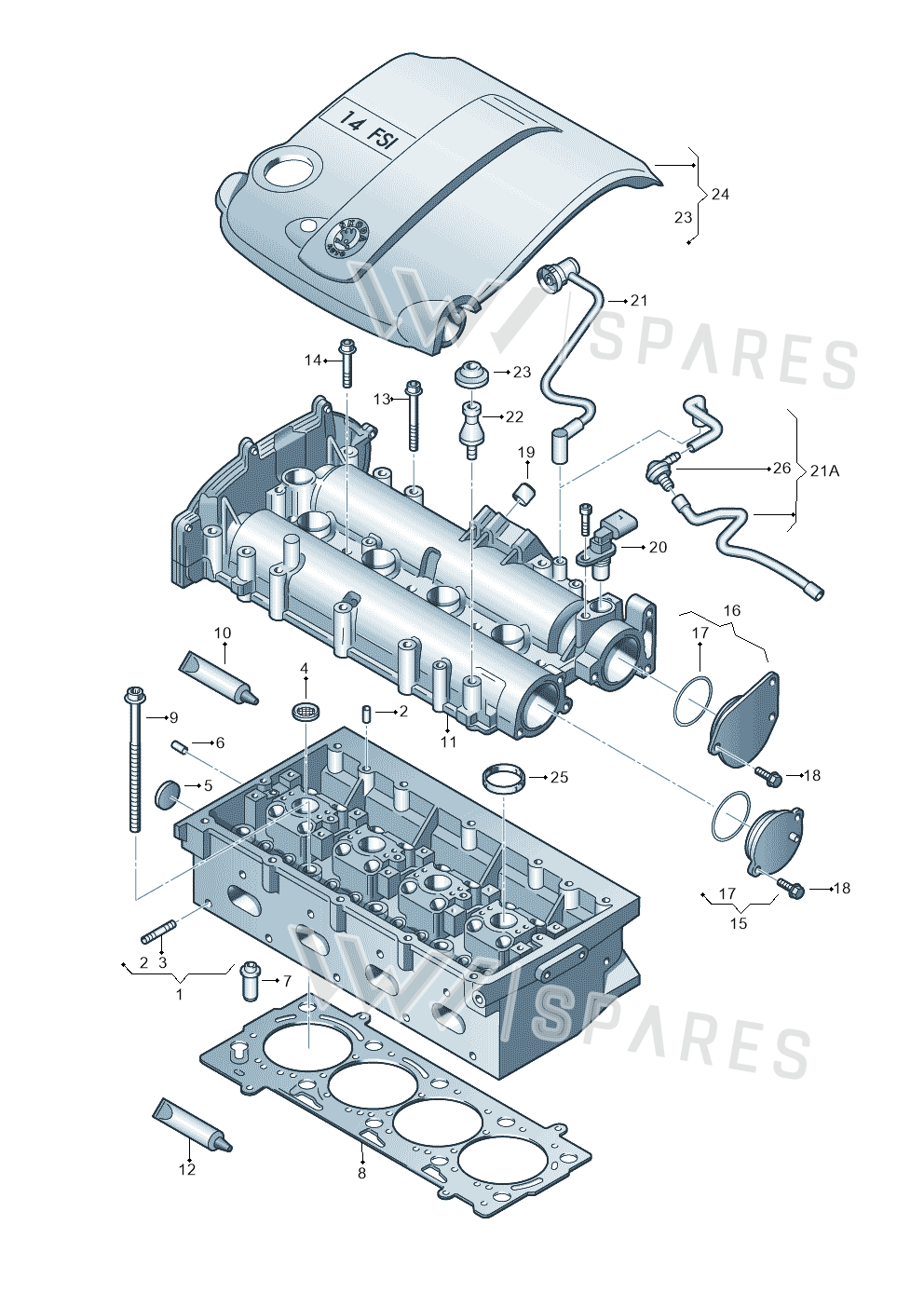

3 vehiclesGrommet — locate Grommet in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Cylinder Head 03C103063DQ
- 1Cylinder Head 03C103264E
- 1Cylinder Head 03C103264EX
- 1Cylinder Head 03C103063CR
- 2Part N0132102
- 3Bolt WHT004984
- 4Strainer 03C115175
- 4Strainer 036115175B
- 5Cover N01191410
- 8Seal 03C103383AM
- 8Seal 03C103383R
- 9Screw WHT000912
- 10Sealant D154103A1
- 11Cover 03C103475BC
- 12Seal D176501A1
- 13Screw N10247504
- 14Screw N10300805
- 15Cover 036103111
- 15Cover 036103111G
- 17Seal Ring N90344501
- 18Bolt N10451405
- 19Tappets 06H109311B
- 21AHose 03C103558AA
- 21AHose 03C103558K
- 25Seal Ring 03C103196
- 26Valve 030103175B
Vehicle fitment table3
Europe (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Fabia Scout | 2010-2014 | 23 | 2 | |
| Audi A8L qu. 3.0 TDI | 2009-2014 | 11 | 3 | TX7 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Polo Vivo | 2017- | 5 | 3 |
Diagrams & fitment data powered by oemdiagrams.com
Grommet is fitted on: Fabia Scout 2010-2014; Audi A8L qu. 3.0 TDI 2009-2014; Polo Vivo 2017-.
