Product overview

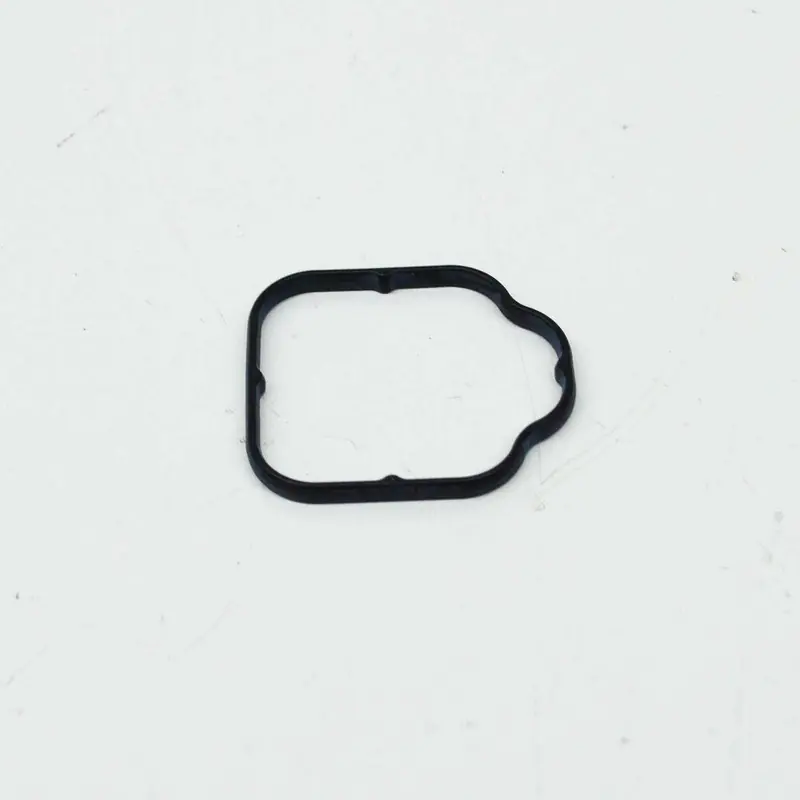

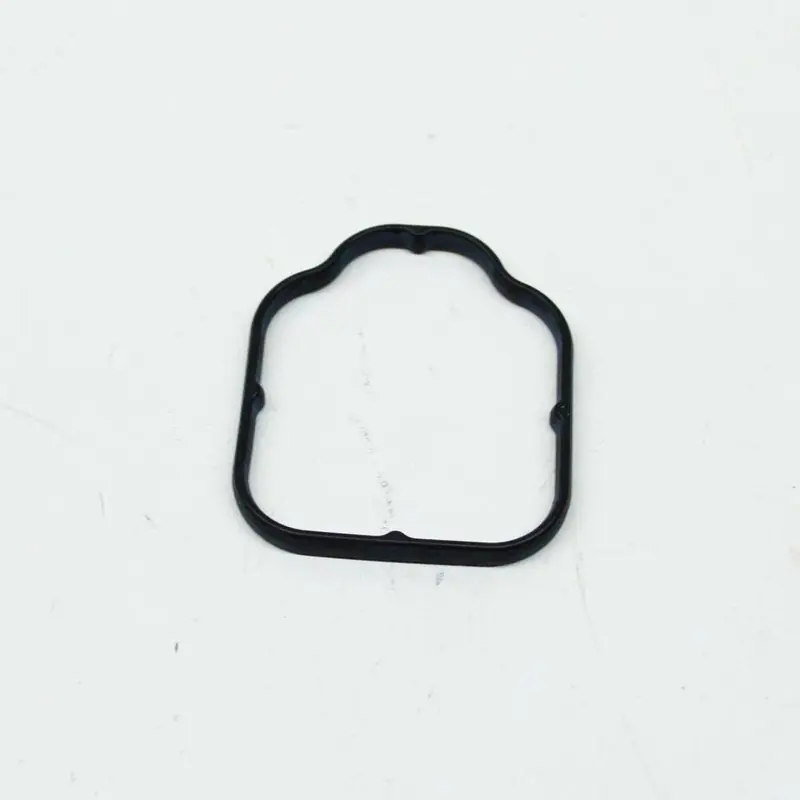

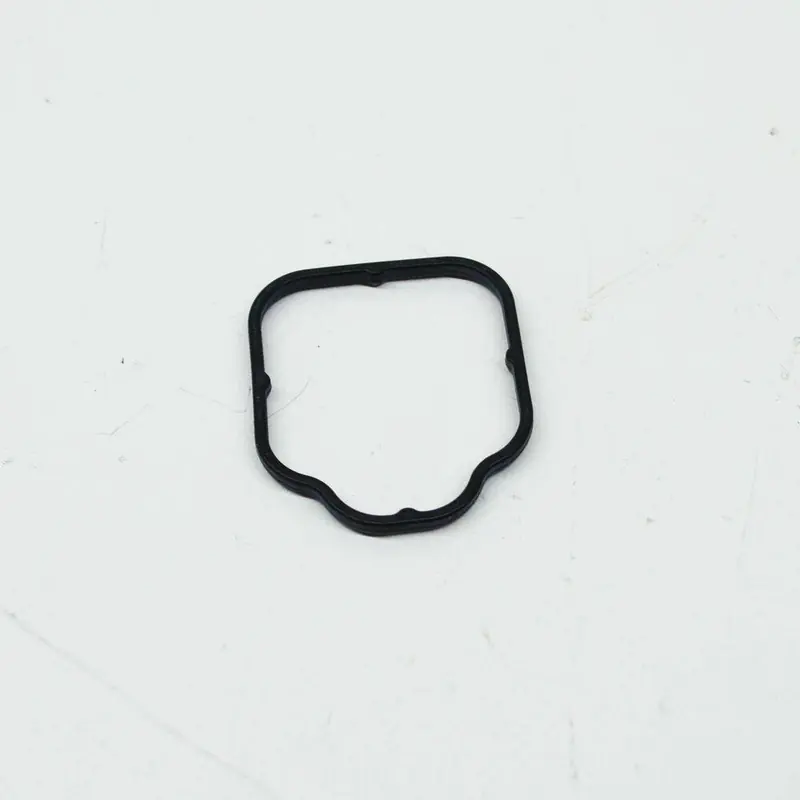

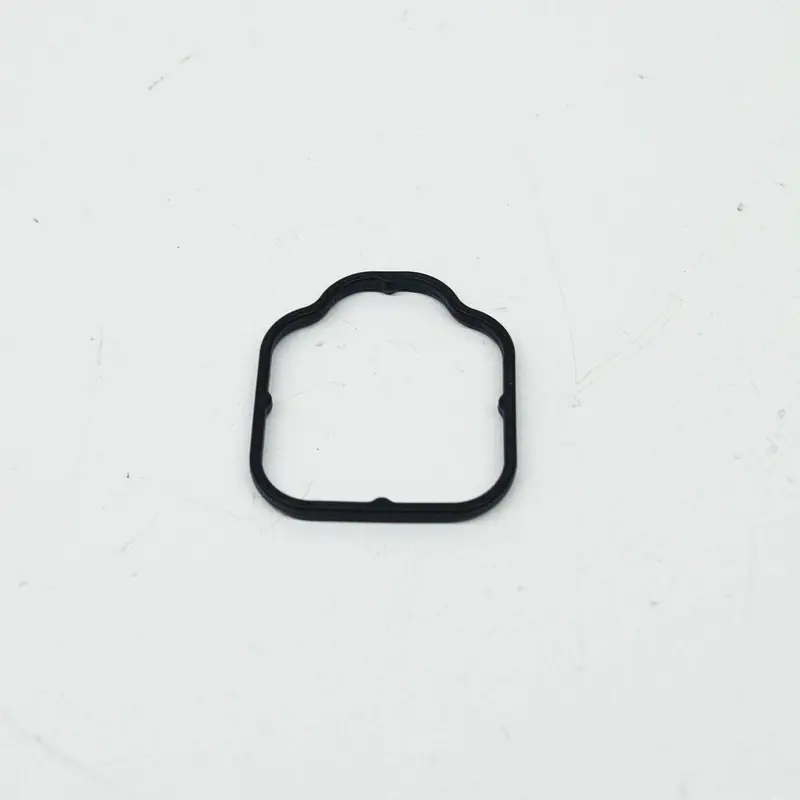

Genuine OEM Audi Engine Coolant Bypass Hose Seal, part number 07L103121R. This critical rubber seal ensures a tight, leak-free connection for the engine coolant bypass hose, preventing coolant loss and maintaining system pressure. A properly sealed cooling system is vital for engine temperature regulation. It is typically positioned at the rear right of the engine assembly, sealing the bypass hose connection. Made from high-grade, heat-resistant rubber, it offers excellent durability and resistance to coolant chemicals. Using a genuine OEM seal guarantees precise dimensions and material quality for optimal sealing performance.
Catalogue entry: SEAL.
Fitted with: 07L103011CA CRANKCASE, 079103051F SEAL, 079103121AM SEAL, 07L103121D SEAL, 07L103121S SEAL, 07L103161J SEAL, N0138326 seal ring, N0138063 seal ring, N0138493 seal ring, N10554005 SCREW, N10405702 SCREW, N90713202 seal ring.
Technical details
- Category
- Gaskets & Seals
- Customs (HS) code
- 40169300
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 5 × 4.8 × 0.5 cm
- Shipping weight
- 0 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesSeal — locate 07L103121R Audi Engine Coolant Bypass Hose Seal | Rear Right in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Crankcase 07L103011BL
- 2Seal 079103051F
- 3Strainer 07L103081
- 4Seal 079103121AM
- 5Seal 079103121BE
- 6Seal 07L103121D
- 8Seal 07L103121S
- 9Seal 07L103051C
- 9Seal 07L103051F
- 10Sleeve 022103139B
- 12Vent 07L103158D
- 13Seal 07L103161H
- 14Flange 07L103171AE
- 14Flange 07L103171AP
- 16Valve 077103175B
- 20Restrictor 07L103271A
- 23Cover 079103113
- 25Oil Sump 07L103601F
- 27Cover 07L103704F
- 27Cover 07L103704H
- 28Seal Ring N0138326
- 29Screw N0160293
- 31Part 055105277
- 32Sleeve 077115143D
- 33Valve 079117409F
- 34Cover N0119078
- 35Cover N01190310
- 36Seal Ring N0138063
- 37Seal Ring N0138493
- 38Plug N0297014
- 39Thread Pin N10570501
- 40Bolt N10124306
- 41Bolt N10156206
- 42Screw N10470703
- 43Screw N10582103
- 45Screw N10682101
- 46Screw N10554005
- 47Screw N10405702
- 50Seal Ring N90713202
- 51Screw N90989102
- 53Seal Ring N91008501
- 54Sleeve N91020803
- 55Bolt N91097501
- 56Screw N91119401
- 57Screw N91068601
- 60Screw WHT002235
- 61Seal Ring WHT002287C
- 62Screw WHT003328
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi R8 Spyder | 2015-2024 | 7 | 1 | |
| Audi R8 qu. 5.2 | 2012-2015 | 7, 3 | 1 | TU7 |
| Audi R8 08> | 2007- | 7, 3 | 1 | TU7 |
| Audi RS6 Avant qu.5.0 | 2007-2010 | 7, 5 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
07L103121R Audi Engine Coolant Bypass Hose Seal | Rear Right is fitted on: Audi R8 Spyder 2015-2024; Audi R8 qu. 5.2 2012-2015; Audi R8 08> 2007-; Audi RS6 Avant qu.5.0 2007-2010.
