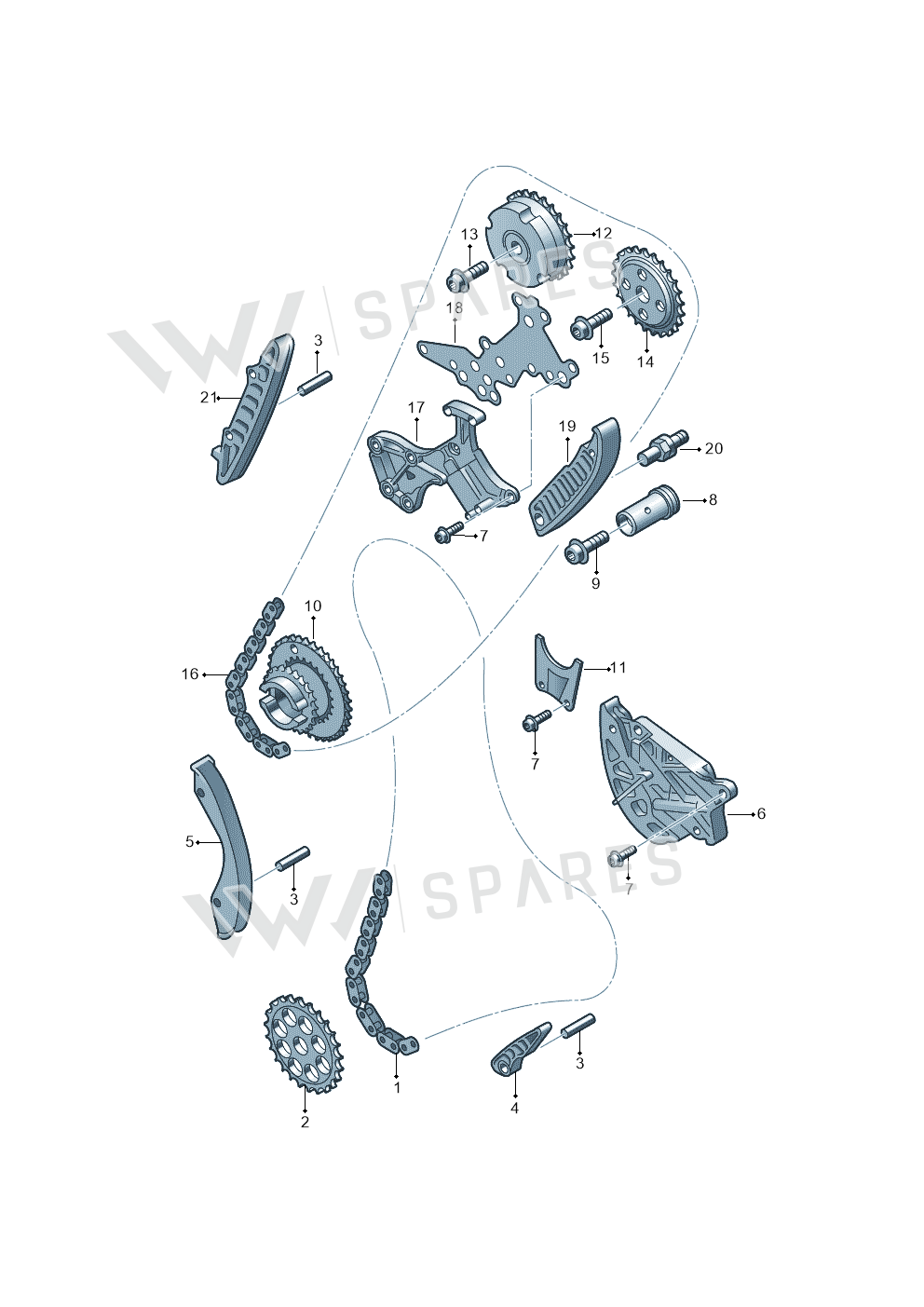

Camshaft Adjuster Unit exploded parts diagram — Audi RSQ3 qu. 2.5 · 2013-2018, position 12
Exploded view
Audi RSQ3 qu. 2.5 · 2013-2018 · position 12Full diagram ↓
07L109083D

07L109083D Camshaft Adjuster Unit

£558.57
£461.63 excl. VAT
Supersession road4 numbers since 2014
  1. 07L109083DThis pageNot stocked
    May 2014
  2. 07L109083FNot stocked
    Dec 2020
  3. 07L109083GNot stocked
    Apr 2019
  4. 07L109083HCurrent number
Current part number07L109083HWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

10 vehicles

Camshaft Adjuster Unit — locate Camshaft Adjuster Unit in the official exploded view and explore the surrounding assembly.

Parts in this assembly20
Vehicle fitment table10

Europe (10)

VehicleYearsPos.QtyPR
Audi RSQ3 qu. 2.52013-2018121
Audi R8 qu. 5.22012-2015182TU7
Audi RS3 Sportback2011-2012121TB9
Audi TTRS Plus Coupe2009-2014121D06
Audi A6 2.7 TDI2008-2011182D75
Audi R8 08>2007-182D71
Audi A8/S8/qu. lang 08>2007-182D5W
Audi RS6 Avant qu.5.02007-2010182D70
Audi A6/S6/Avant/qu. 05>2004-182D75
Audi A8/S8/qu. lang2003-2007182D5W

Diagrams & fitment data powered by oemdiagrams.com

Camshaft Adjuster Unit is fitted on: Audi RSQ3 qu. 2.5 2013-2018; Audi R8 qu. 5.2 2012-2015; Audi RS3 Sportback 2011-2012; Audi TTRS Plus Coupe 2009-2014; Audi A6 2.7 TDI 2008-2011; Audi R8 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; Audi RS6 Avant qu.5.0 2007-2010; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007.
