07L121077D Bracket
- 07L121077DThis pageNot stocked
Sep 2016 - 07L121077ECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

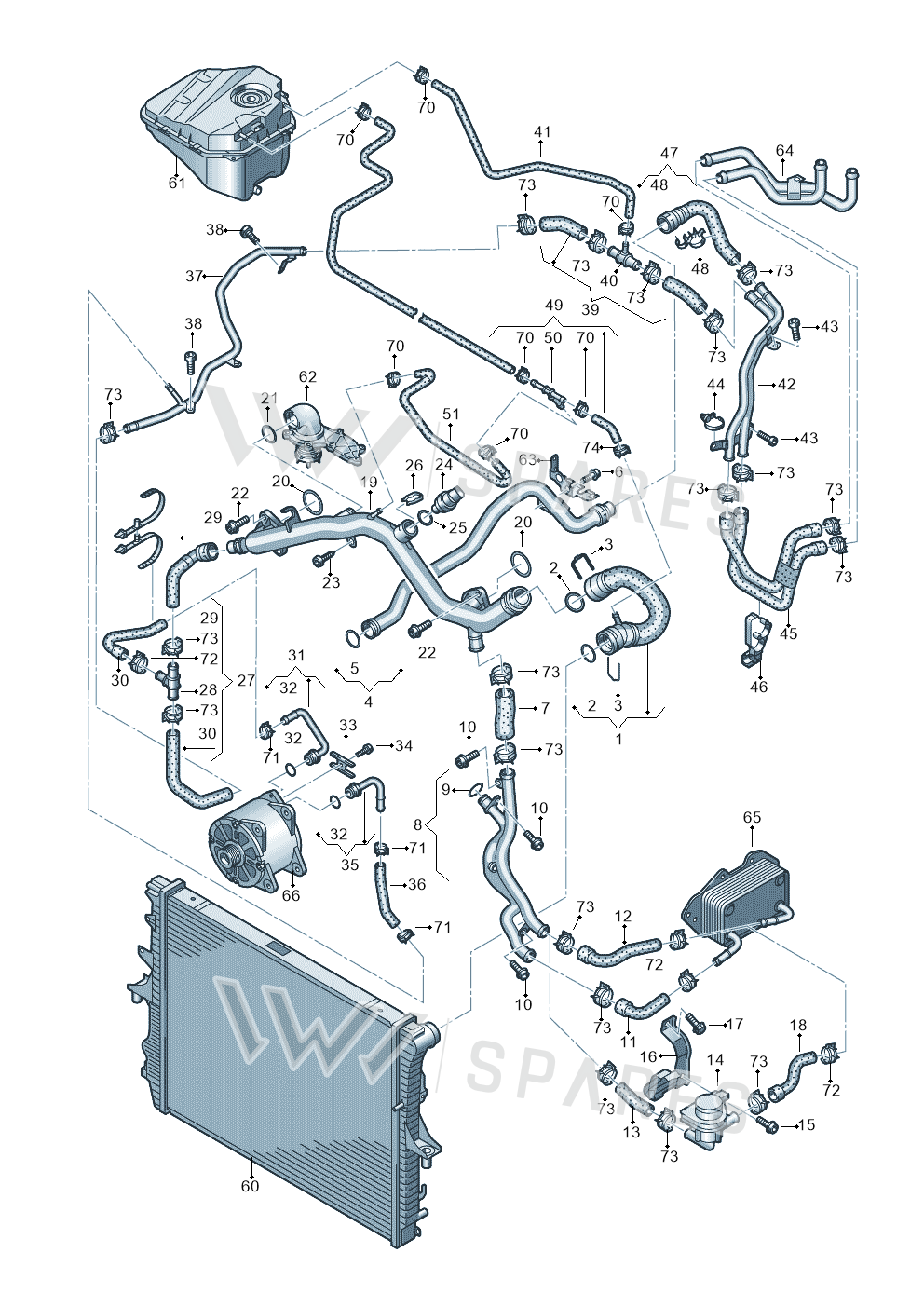

2 vehiclesBracket — locate Bracket in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Hose 7L8122101D
- 2Seal Ring 4E0121666
- 3Spring 4E0121142
- 4Water Pipe 06E121065Q
- 5Seal Ring N90316801
- 6Bolt N91140701
- 7Hose 06E121058D
- 7Hose 06E121058F
- 8Water Pipe 06E121044AF
- 8Water Pipe 06E121044N
- 8Water Pipe 06E121044M
- 9Seal Ring N90925001
- 10Bolt N10124408
- 11Hose 06E121082C
- 12Hose 06E121058E
- 13Hose 06E121088B
- 14Pump 06E121601C
- 16Bracket 06E121521F
- 17Bolt N10636501
- 18Hose 06E121088F
- 19Water Pipe 06E121045AE
- 19Part 06E121045Q
- 20Seal Ring 06E121119E
- 21Seal Ring 06E121119C
- 23Bolt N10412804
- 24Sender 06A919501A
- 26Spring 032121142
- 27Hose 7P0121156L
- 27Hose 7L8121065Q
- 28Tpiece N90794401
- 29Binder 4A0820199
- 30Hose 7L8121070AP
- 31ConnectionLeft06E121647G
- 31ConnectionLeft06E121647J
- 32Seal Ring WHT001011
- 33Bracket 07L121077E
- 34Bolt N10156206
- 35ConnectionRight06E121647F
- 36Hose 7L8121070AQ
- 37Water PipeRight7L8121065AC
- 38Bolt N10632003
- 39Hose 7L8122073F
- 40Tpiece N90761001
- 41Hose 7L8122447M
- 42Water Pipe 7L8121070AD
- 43Screw N10632001
- 44Binder N90772601
- 45Hose 7L8122073E
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 33 | 1 |
| Audi A8L qu. 3.0 TDI | 2009-2014 | 33 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Bracket is fitted on: Audi Q7 qu. 3.0 TDI 2009-2015; Audi A8L qu. 3.0 TDI 2009-2014.
