07P109417 Roller Rocker Arm
- 07P109417This pageNot stocked
Oct 2014 - 07P109417ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

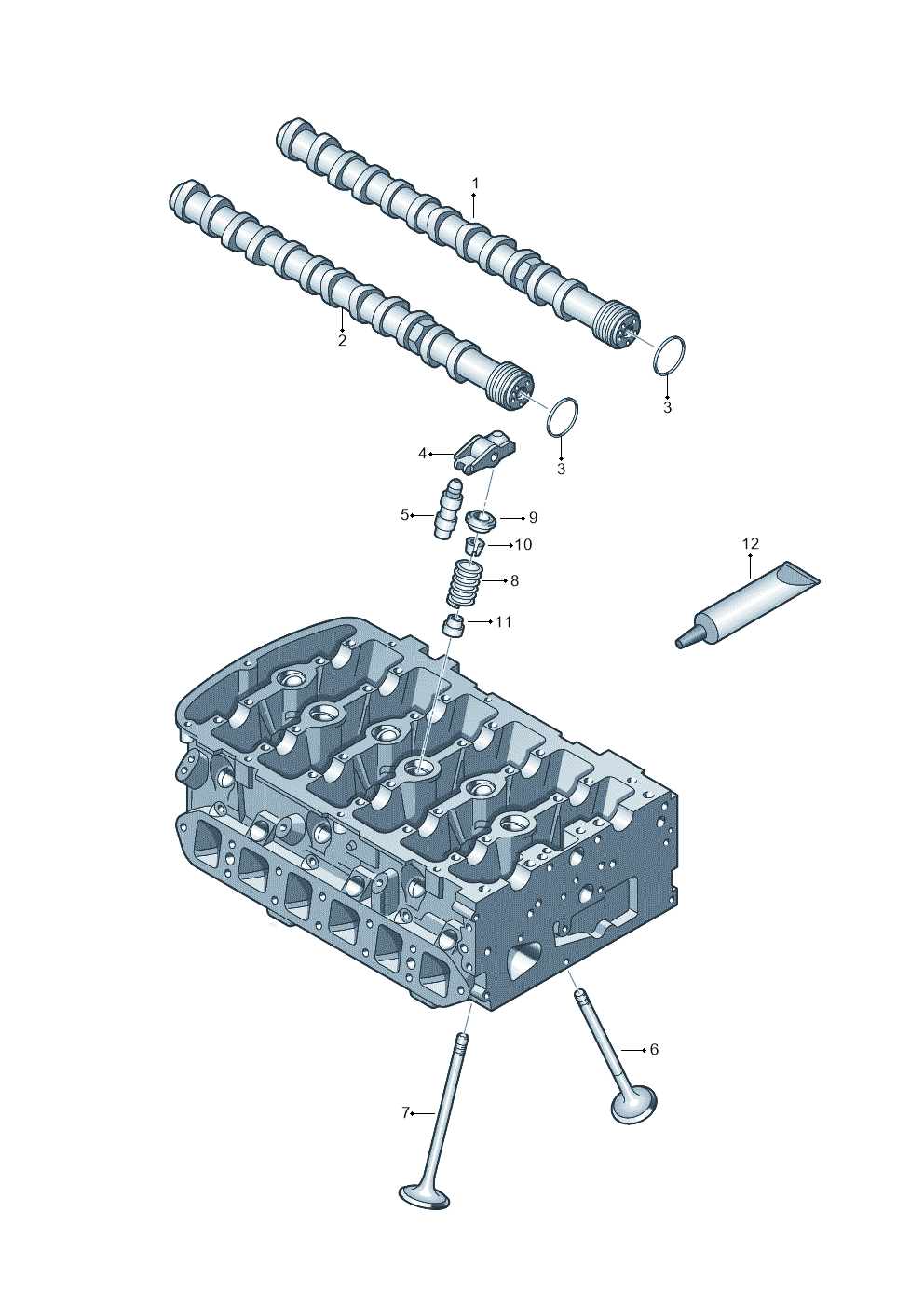

8 vehiclesRoller Rocker Arm — locate Roller Rocker Arm in the official exploded view and explore the surrounding assembly.
Parts in this assembly21
- 1Camshaft 03H109101M
- 1Camshaft 03H109101J
- 1Camshaft 03H109101L
- 2Camshaft 03H109102M
- 2Camshaft 03H109102J
- 2Camshaft 03H109102L
- 3Seal Ring 066109345A
- 4Roller Roc 022109417E
- 5Equal Element 022109423C
- 6Valve 022109601H
- 6Valve 022109601G
- 7Valve 022109611N
- 7Valve 022109611P
- 7Valve 03H109611E
- 7Valve 03H109611D
- 8Spring 03H109623B
- 8Spring 03H109623C
- 9Springseat 022109641B
- 10Cotter Pin 036109651A
- 11Seal 036109675A
- 12Paste G052723A2
Vehicle fitment table8
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| touareg | 2012-2014 | 4 | 24 | DC1 | |
| touareg | 2010-2012 | 4 | 24 | DC1 | |
| Audi A8L qu. 3.0 TDI | 2009-2014 | 20 | 48 | TX7 | |
| Passat CC | 2008-2012 | 4 | 24 | CNNA | D3B |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| New Passat | 2011-2019 | 4 | 24 | ||
| New Passat | 2011-2015 | 4 | 24 | D3B | |
| Magotan 1.4 | 2011-2012 | 4 | 24 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 3C0 platform | 4 | 24 |
Diagrams & fitment data powered by oemdiagrams.com
Roller Rocker Arm is fitted on: touareg 2012-2014; touareg 2010-2012; Audi A8L qu. 3.0 TDI 2009-2014; Passat CC 2008-2012; New Passat 2011-2019; New Passat 2011-2015; Magotan 1.4 2011-2012; 3C0 platform.
