087409067B Banjo Bolt
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

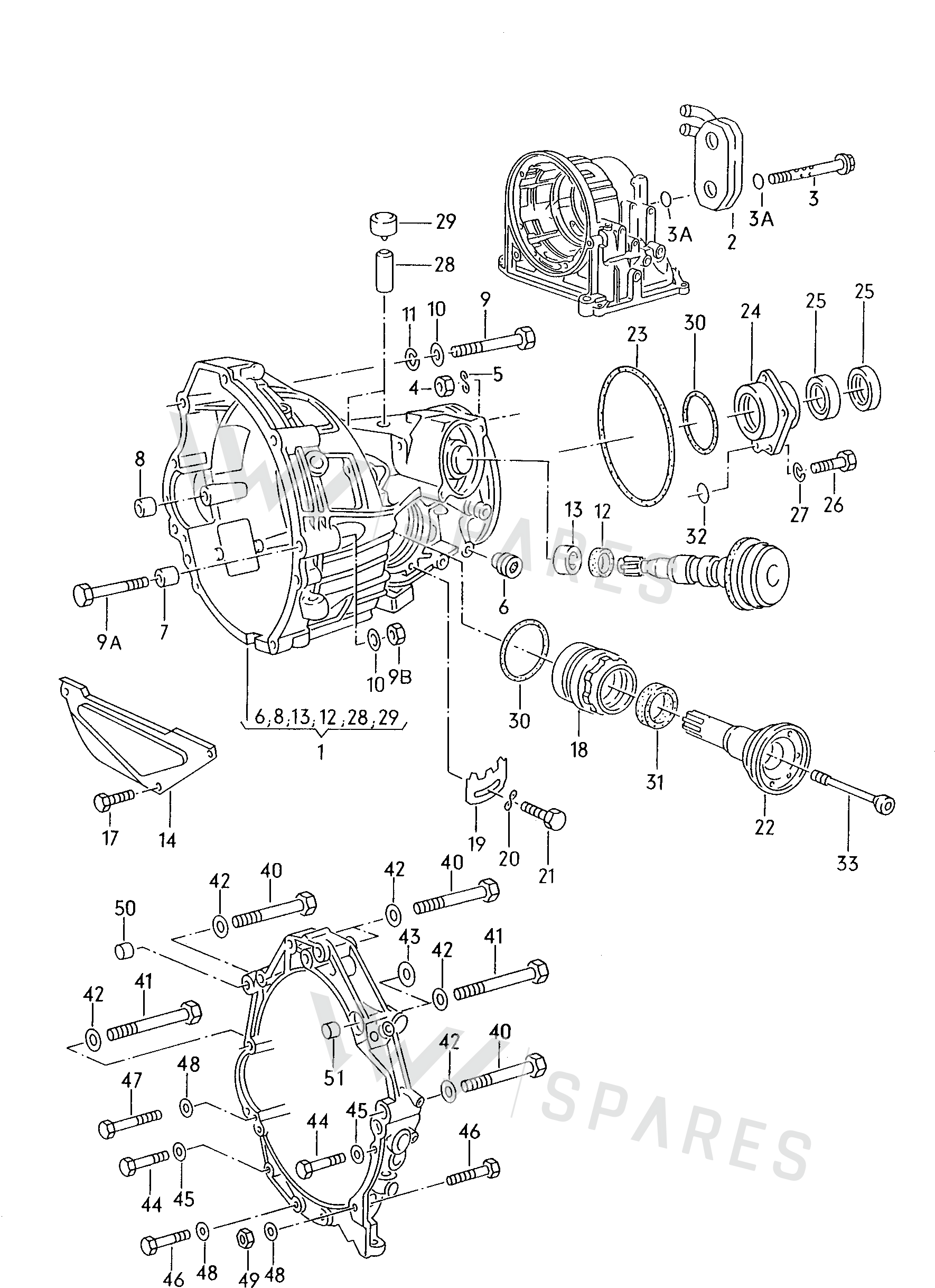

10 vehiclesBanjo Bolt — locate Banjo Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly44
- 1Housing 089409051E
- 2Oil Cooler 087409061E
- 3ASeal Ring 089409069
- 4Part N01100822
- 5Washer N0122283
- 6Screw 012301127F
- 7Sleeve 014301153
- 8Bush 014301155
- 9Bolt N0104932
- 9ABolt N0104644
- 9BPart N0110304
- 10Washer N0115317
- 11Lock Ring N0120424
- 12Seal Washer 087409133C
- 13Bearing 082409139
- 14Coverplate 089409157
- 17Bolt N01021226
- 18Ring 089409173
- 19Plate 010409257
- 20Washer N0122265
- 21Bolt N01021527
- 22FlanshaftRight089409356A
- 22FlanshaftLeft089409355A
- 23Strap 010409549B
- 24Cover 089409623A
- 25Seal Ring 089409529D
- 26Bolt N0102336
- 27Lock Ring N0120387
- 28Pipe 003507141C
- 29Cover 003507145
- 30Seal Ring 010409259A
- 31Seal Washer 016409399B
- 32Seal Ring 089409637A
- 33Screw 003507325
- 33Screw 003507327
- 40Bolt N0104981
- 41Bolt N0403331
- 43Washer 321505193A
- 44Bolt N0103404
- 45Washer N01152520
- 46Bolt N0104403
- 48Washer N01152711
- 49Part N10155207
- 51Sleeve 012301153
Vehicle fitment table10
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| AUDI COUPE/3 | 1988-1994 | 3 | 2 | |
| Audi 100/Wagon 89 | 1988-1989 | 3, 11 | 2 | |
| Audi 80/90 | 1987-1989 | 3, 11 | 2 | |
| AUDI COUPE/2 88 | 1987-1987 | 11A | 2 | RBL |
| Audi 5000 S/Wagon | 1986-1988 | 11A | 2 | RDP,RDS,RDT, |
| Audi 5000 Turbo | 1984-1988 | 11A | 2 | |
| Audi 4000 S | 1984-1987 | 11 | 2 | RBL |
| Audi 5000 S/Wagon | 1984-1986 | 11A | 2 | |
| Audi Coupe | 1981-1987 | 11A | 2 | RBL |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 325 platform | 3 |
Diagrams & fitment data powered by oemdiagrams.com
Banjo Bolt is fitted on: AUDI COUPE/3 1988-1994; Audi 100/Wagon 89 1988-1989; Audi 80/90 1987-1989; AUDI COUPE/2 88 1987-1987; Audi 5000 S/Wagon 1986-1988; Audi 5000 Turbo 1984-1988; Audi 4000 S 1984-1987; Audi 5000 S/Wagon 1984-1986; Audi Coupe 1981-1987; 325 platform.
