089409356 Flanged Shaft
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

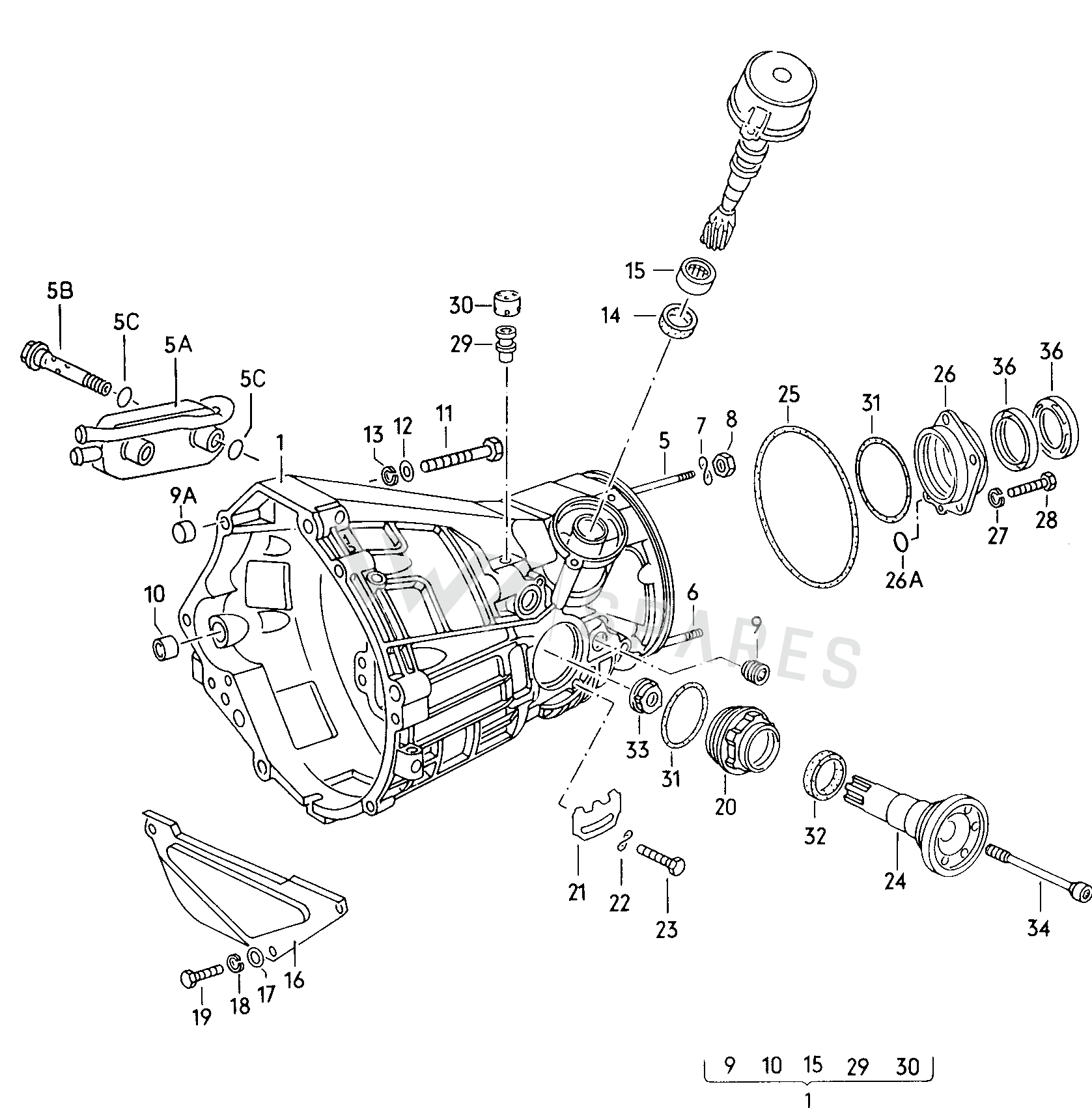

18 vehiclesFlanged Shaft — locate Flanged Shaft in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly36
- 1Housing 089409051C
- 5AOil Cooler 087409061C
- 5BScrew 089409067
- 5CSeal Ring 089409069
- 6Bolt N0143968
- 7Washer N0122283
- 8Part N01100822
- 9Screw 012301127F
- 9ASleeve 014301153
- 10Bush 014301155
- 11Bolt N0104932
- 12Washer N0115317
- 13Lock Ring N0120424
- 14Seal Washer 087409133C
- 15Bearing 082409139
- 16Coverplate 089409157
- 17Washer N01152423
- 18Lock Ring N0120064
- 19Bolt N01021527
- 20Ring 089409173
- 21Plate 010409257
- 22Washer N0122265
- 24FlanshaftLeft089409355
- 25Strap 010409549B
- 26Cover 089409623A
- 26ASeal Ring 089409637A
- 27Lock Ring N0120387
- 28Bolt N0102336
- 29Pipe 003507141C
- 30Cover 003507145
- 31Seal Ring 010409259A
- 32Seal Washer 016409399B
- 33Part 089409373
- 34Screw 003507327
- 34Screw 003507325
- 36Seal Ring 089409529D
Vehicle fitment table18
Europe (13)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| AUDI COUPE/2 88 | 1987-1987 | 24 | 1 | |
| Audi 5000 S/Wagon 84 | 1983-1984 | 24 | 1 | KAE |
| Audi Coupe | 1981-1987 | 24 | 1 | |
| Audi 4000 | 1981-1984 | 22 | ||
| Audi 5000 | 1981-1982 | 24 | 1 | KE |
| PASSAT,-VARIANT/2 81 | 1980-1981 | 24 | 1 | |
| Audi 4000 | 1979-1981 | 22 | ||
| Audi 5000/Wagon | 1979-1981 | 24 | 1 | KE |
| Dasher | 1977-1980 | 24 | 1 | |
| Audi 5000 | 1977-1979 | 19 | 1 | KD,KE |
| Audi Fox | 1976-1978 | 23 | ||
| Dasher | 1973-1977 | 25 | ||
| Audi Fox | 1972-1976 | 25 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Quantum | 1986-1988 | 24 | 1 | |
| Quantum 86 | 1985-1986 | 24 | 1 | |
| Quantum 85 | 1984-1985 | 24 | 1 | |
| Quantum | 1981-1984 | 24 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 325 platform | 11 |
Diagrams & fitment data powered by oemdiagrams.com
Flanged Shaft is fitted on: AUDI COUPE/2 88 1987-1987; Audi 5000 S/Wagon 84 1983-1984; Audi Coupe 1981-1987; Audi 4000 1981-1984; Audi 5000 1981-1982; PASSAT,-VARIANT/2 81 1980-1981; Audi 4000 1979-1981; Audi 5000/Wagon 1979-1981; Dasher 1977-1980; Audi 5000 1977-1979; Audi Fox 1976-1978; Dasher 1973-1977; Audi Fox 1972-1976; Quantum 1986-1988; Quantum 86 1985-1986; Quantum 85 1984-1985; Quantum 1981-1984; 325 platform.
