091141701 Release Shaft
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

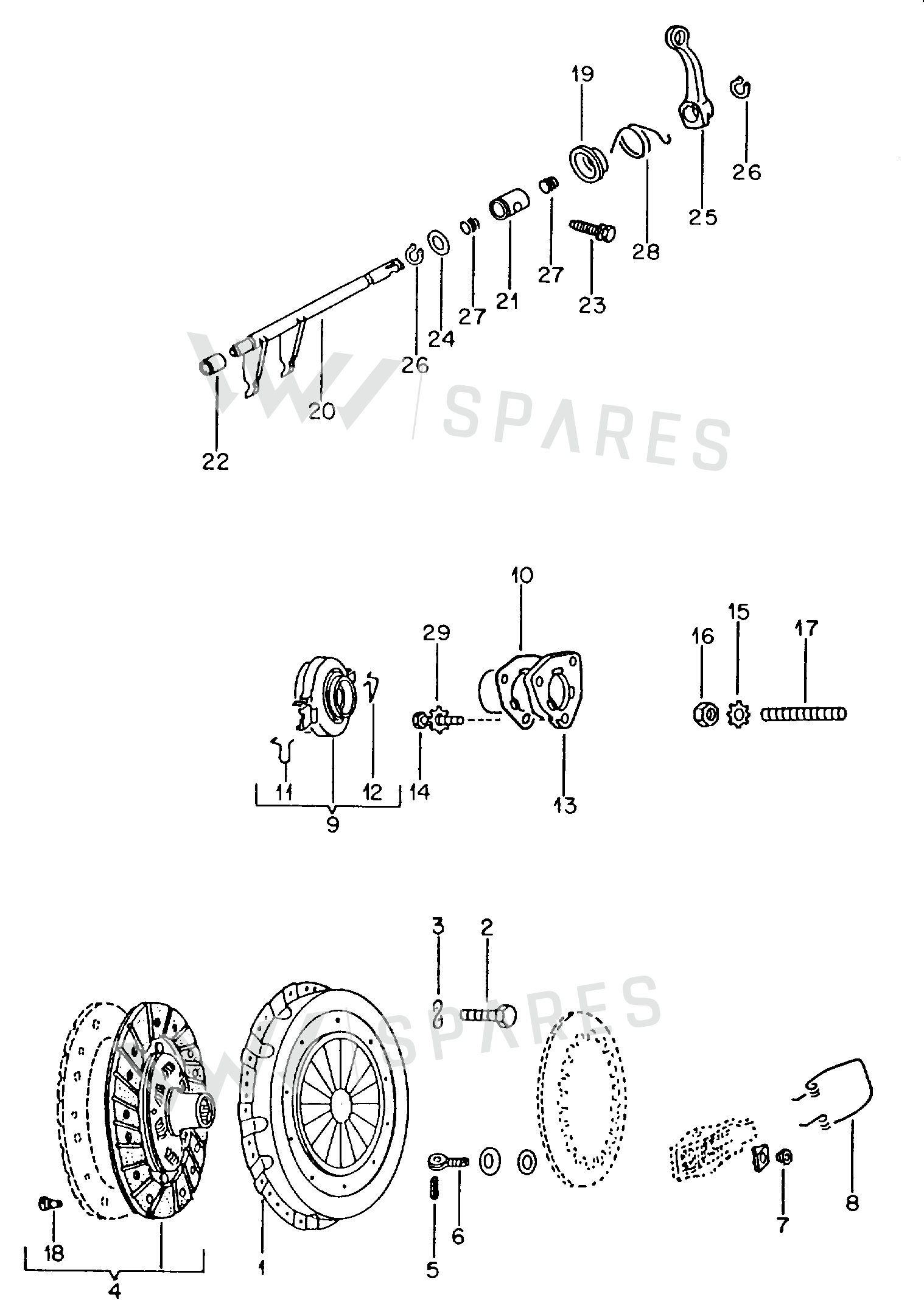

7 vehiclesRelease Shaft — locate Release Shaft in the official exploded view and explore the surrounding assembly.
Parts in this assembly19
- 1Pres Plate BAA141025
- 2Bolt 111821145
- 3Washer N01224110
- 6Part 311141133A
- 9Bearing 088141165B
- 11SpringLeft113141177C
- 12SpringRight113141178C
- 13Sleeve 016141181
- 14Part N0402033
- 16Part N0110077
- 18Rivet 311141195A
- 19Holder 091141727
- 25Lever 361141719
- 25Lever 131141719
- 26Ring N0124201
- 26Ring N0124161
- 27Bush 113141721A
- 28Spring 091141723
- 28Spring 113141723
Vehicle fitment table7
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| TIPO 2 (MEX) | 1971-2001 | 20, 10 | 1 |
| Type 2 | 1967-1979 | 33 | 1 |
Other markets (5)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| TYPE 2 "ZA" | 1995-2003 | 13 | 1 |
| Vanagon | 1987-1992 | 13 | 1 |
| Vanagon syncro | 1985-1992 | 13 | 1 |
| Vanagon | 1985-1987 | 13 | 1 |
| Vanagon | 1979-1985 | 13 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Release Shaft is fitted on: TIPO 2 (MEX) 1971-2001; Type 2 1967-1979; TYPE 2 "ZA" 1995-2003; Vanagon 1987-1992; Vanagon syncro 1985-1992; Vanagon 1985-1987; Vanagon 1979-1985.
