096321490 Cover
- 096321490This pageNot stocked
Jan 1998 - 096321491BDiscontinued
Feb 2024
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

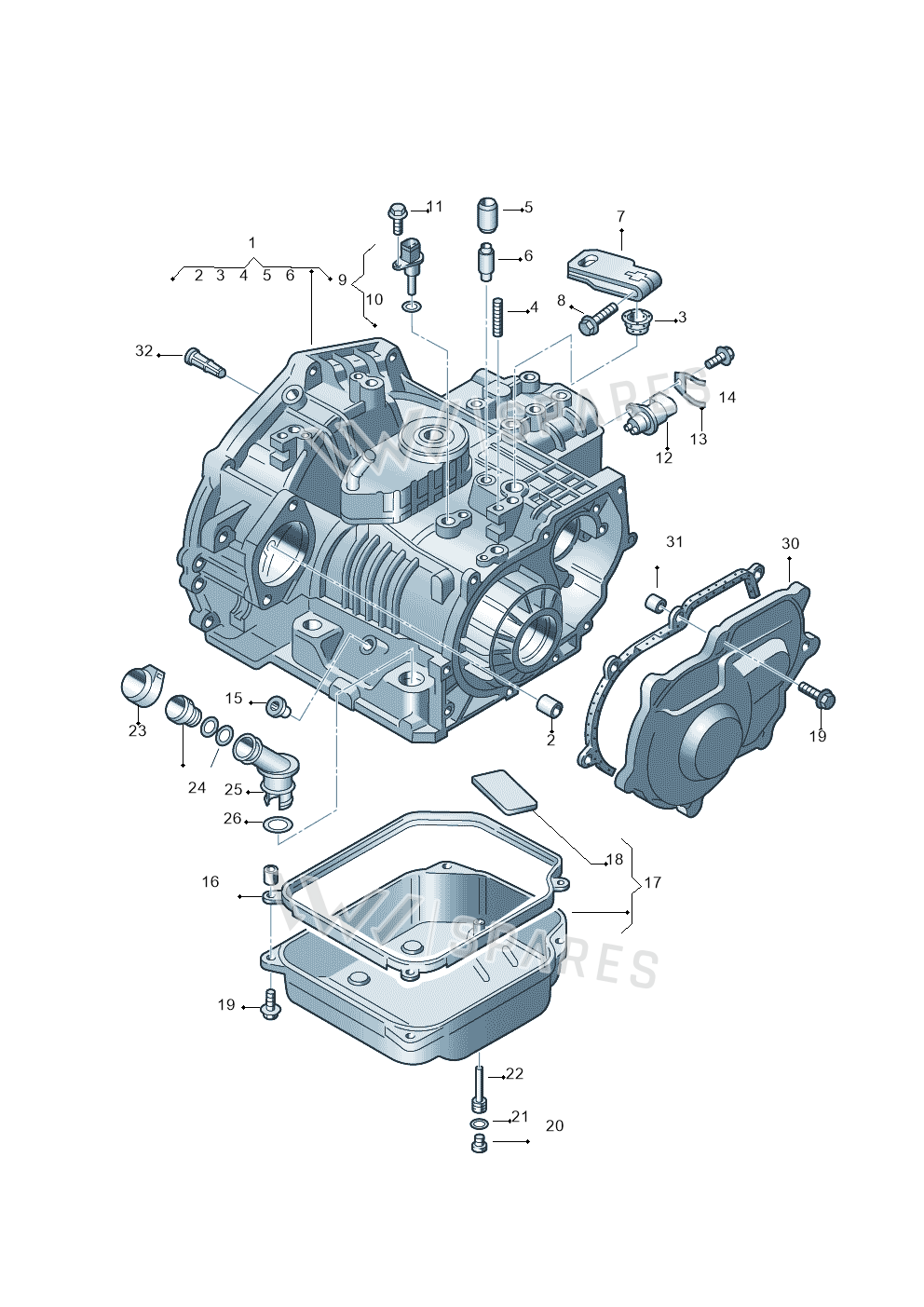

15 vehiclesCover — locate Cover in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Housing 01M321101G
- 2Bush 113301155
- 3Seal Ring 095321182B
- 5Ap Cap For Venting The Gearbox Cap For Venting 095409841
- 6Pipe 010409847
- 7Lever 01M321171B
- 8Bolt N90441601
- 10Seal Ring 095321559
- 11Bolt N90440701
- 11AClip 01M321845
- 13Bracket 097321527
- 14Bolt N90533002
- 15Bolt N90414201
- 16Seal 096321370
- 17Oil Sump 01M321359
- 18Magnet 097321368
- 21Seal Ring N0138115
- 22Oil Pipe 096321363
- 23Part 01M321435B
- 24Bungs 01M321432A
- 25Pipe 01M321407
- 26Seal Ring 003321419B
- 30Cover 096321491B
- 31Seal 096321488
- 32Strainer 01M325455
Vehicle fitment table15
Europe (14)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| AUDI A3/S3/QUATTRO | 1996-2000 | 30 | 1 |
| GOLF VAR./VENTO | 1996-1999 | 30 | 1 |
| Golf | 1996-1997 | 30 | 1 |
| Golf 96 | 1995-1996 | 30 | 1 |
| Golf Var./Vento 96 | 1995-1996 | 30 | 1 |
| Passat | 1994-1997 | 36, 30 | 1 |
| Golf Cabrio | 1994-1996 | 36, 30 | 1 |
| Golf/Ecomatic 95 | 1994-1995 | 36, 30 | 1 |
| Golf Var./Vento 95 | 1994-1995 | 36, 30 | 1 |
| Jetta GLX 94 | 1993-1994 | 36 | 1 |
| GOLF/Ecomatic | 1991-1994 | 36 | 1 |
| Passat | 1991-1993 | 36 | 1 |
| Corrado | 1989-1995 | 36 | 1 |
| Passat | 1989-1991 | 36 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 36, 30 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Cover is fitted on: AUDI A3/S3/QUATTRO 1996-2000; GOLF VAR./VENTO 1996-1999; Golf 1996-1997; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Passat 1994-1997; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Jetta GLX 94 1993-1994; GOLF/Ecomatic 1991-1994; Passat 1991-1993; Corrado 1989-1995; Passat 1989-1991; Golf/Jetta "USA","MEX"93>96 1992-1996.
