097321128A Guard Plate
- 097321128AThis pageNot stocked
Aug 2009 - 097321129Current · not stocked
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

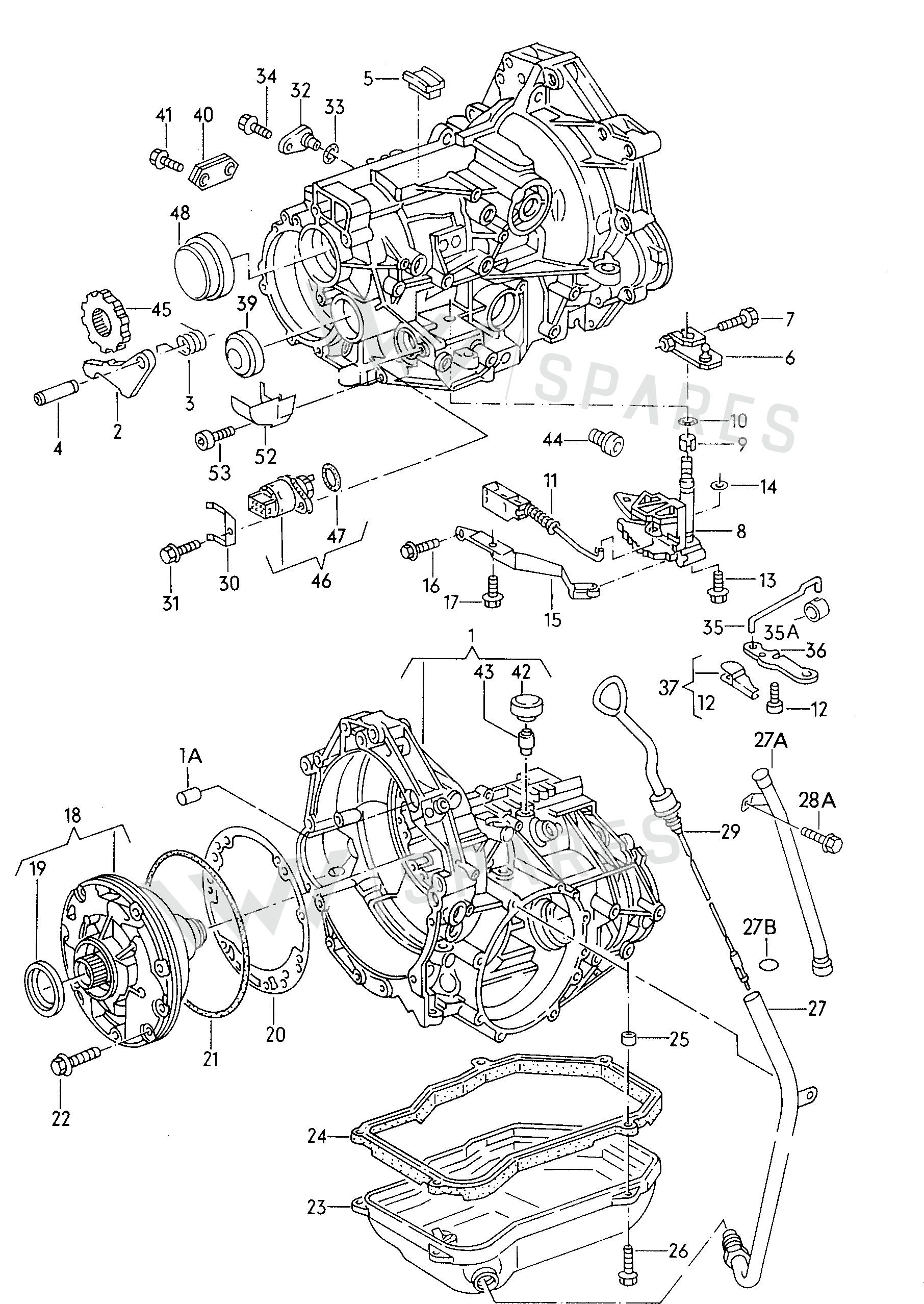

5 vehiclesGuard Plate — locate Guard Plate in the official exploded view and explore the surrounding assembly.
Parts in this assembly43
- 1Housing 097321101
- 1ASleeve 012301153
- 2Lever 097321119
- 3Spring 097321121
- 4In Pin - Engagement Lever Pin - Engagement 097321123
- 5Lock 097321163
- 6Lever 097321171A
- 7Bolt N90441601
- 8Part 097321173A
- 9Bush 097321178
- 10Seal Ring 095323969
- 11Lever 097321133B
- 13Screw N10029201
- 14Washer N0115501
- 15Spring 097321221C
- 16Bolt N90440701
- 17Bolt N90483201
- 23Oil Sump 097321359A
- 23Oil Sump 01N321359A
- 24Seal 01N321370
- 24Seal 097321370
- 26Bolt N90533002
- 27Pipe 097321405B
- 27Pipe 097321405F
- 27APipe 097321406B
- 27BSeal Ring 003321419B
- 28ABolt N01021527
- 29Oil Dipsti 097321431C
- 29Oil Dipsti 097321431E
- 30Bracket 097321527
- 32Bungs 095321549
- 33Seal Ring 095321559
- 35Operating Rod 095325279C
- 36Lever 095321194A
- 37Clip 095325299
- 39Cover 097321491A
- 40Cover 097321811A
- 41Bolt N01021226
- 42Ap Cap For Venting The Gearbox Cap For Venting 010409841A
- 43Pipe 010409847
- 44Bolt N90414201
- 52Plate 097321129
- 53Screw N0147243
Vehicle fitment table6
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi Cabrio. | 1993-1998 | 52 | 1 | CBW,CEB |
| Audi 90 93 | 1992-1993 | 52 | 1 | AEH,ARC,CBT, |
| Audi 100/Wagon 93 | 1992-1993 | 52 | 1 | CBU,CEA |
| Audi 100/Wagon 92 | 1991-1992 | 52 | 1 | APA,CBU,ANZ, |
| AUDI COUPE/3 | 1988-1994 | 52 | 1 | ASC,ARC,CBT, |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi 100/Wagon | 1989-1990 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Guard Plate is fitted on: Audi Cabrio. 1993-1998; Audi 90 93 1992-1993; Audi 100/Wagon 93 1992-1993; Audi 100/Wagon 92 1991-1992; AUDI COUPE/3 1988-1994.
