Product overview

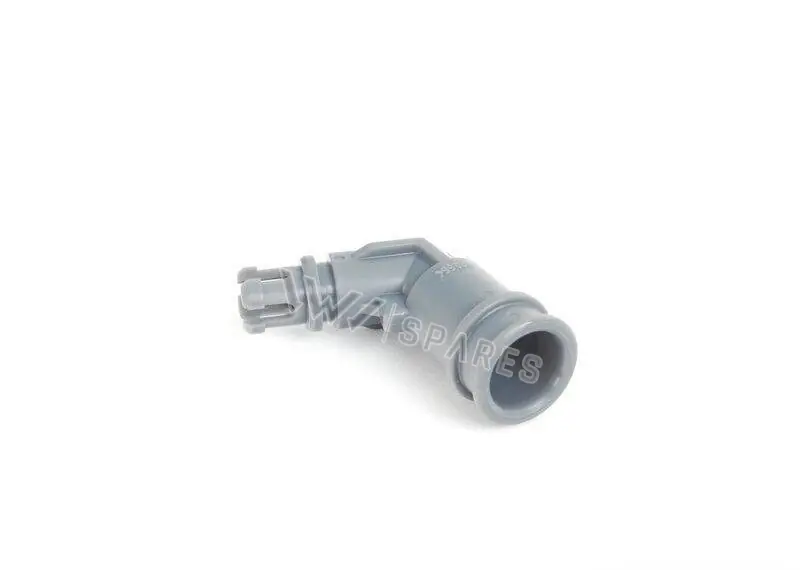

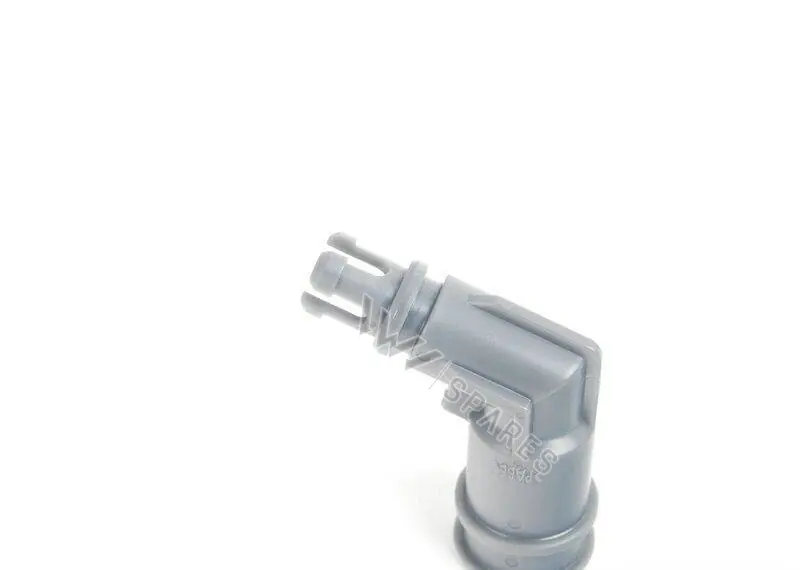

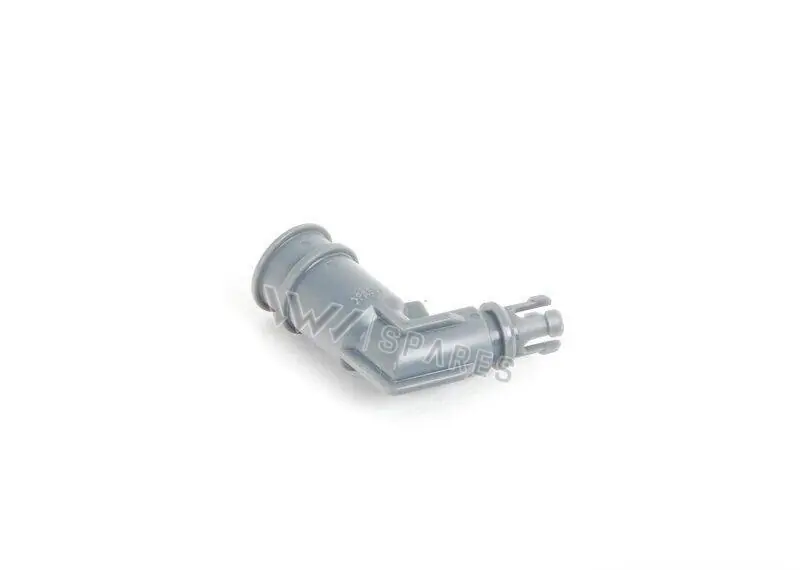

Genuine OEM Audi Oil Filling Tube, part number 09G321407. This component provides a dedicated passage for adding engine oil to the engine, ensuring a clean and efficient oil filling process. It is typically installed in the engine bay, connecting to the oil fill port. Genuine OEM parts are manufactured to precise dimensions and material specifications for proper sealing and durability.
Technical details
- Category
- Engine
- Country of origin
- Japan
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 9.7 × 3.2 × 2.9 cm
- Shipping weight
- 0.02 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
33 vehiclesOil Filler Pipe — locate 09G321407 Audi Oil Filling Tube | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Converter 09G323571E
- 2Seal Washer 09K321243
- 3Part N10169201
- 4Oil Sump 09G321361
- 5Bolt N10156305
- 5Bolt WHT000307
- 6Seal 09G321370
- 7Magnet 09D321368
- 8Bolt N10171102
- 8Bolt WHT000315
- 9Strainer 09G325429
- 10Bolt WHT000311
- 11Valve Body 09G325039X
- 11Valve Body 09G325039A
- 11Valve Body 09G325039AX
- 11Valve Body 09G325039
- 12Bolt N10156005
- 12ABolt WHT000313
- 13Oil Pipe 09G321363
- 14Seal Ring 09D321181B
- 15Screw WHT000310A
- 16Bungs 01M321432A
- 18Oil Cooler 09G409061
- 19Seal Ring 001409069B
- 20Seal Ring 001409069
- 21Washer 001301093B
- 22Seal Ring 09G409539
- 23Screw 09G409067
- 24Plug 001301143
- 24Screw WHT000306
- 25Seal Ring 001409069D
- 25Seal Ring 09G321379
- 26Seal 09G301189
- 31Seal Washer 09D321199
- 32Lever 09A321171A
- 34Collar Nut N10332002
- 35Press Spring 09A409379
- 36Spring 09K325233
- 37Piston 09K325215
- 39Junction 09G409080
- 45Adapter 09G301469A
Compatible / alternative parts(12)
Vehicle fitment table33
Europe (24)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| jetta variant | 2009-2014 | 38 | |||
| golf estate | 2009-2013 | 38 | |||
| Jetta Vagon 08> | 2008- | 38 | |||
| octavia ambiente | 2008-2013 | 38 | 1 | ||
| GOLF VARIANT 07> | 2007- | 38 | |||
| GOLF PLUS 08> | 2007- | 38 | |||
| Audi A3/S3/Sportb./qu. 08 | 2007- | 38 | |||
| JETTA 06> | 2006- | 38 | |||
| ALTEA 07> | 2006- | 38 | 1 | ||
| GOLF PLUS 05> | 2005- | 38 | |||
| JETTA 06> | 2005- | 38 | |||
| New Beetle 06> | 2005- | 38 | |||
| New Beetle Cabrio. 06> | 2005- | 38 | |||
| LEON 06> | 2005- | 38 | 1 | ||
| Passat/4Motion | 2005-2007 | 38 | |||
| Audi A3/S3/quattro | 2005-2007 | 38 | |||
| TOURAN | 2005-2006 | 38 | |||
| TOLEDO 05> | 2004- | 38 | 1 | ||
| OCTAVIA/COMBI/4X4 04> | 2004- | 38 | 1 | ||
| ALTEA | 2004-2006 | 38 | 1 | HFX,HTQ | |
| New Beetle Cabrio. | 2003-2005 | 38 | |||
| TOURAN | 2003-2005 | 38 | |||
| GOLF | 2003-2005 | 38 | |||
| New Beetle | 2001-2005 | 38 |
Other markets (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf Brasil "BR."08> | 2007- | 38 | |||
| Jetta City "Mex"08> | 2007- | 38 | |||
| Jetta "USA"05> | 2005- | 38 | |||
| BORA-FAW "CN" 06> | 2005- | 38 | 1 | ||
| Golf/Rabbit | 2005-2007 | 38 | |||
| TOURAN (SVW) "CN"04> | 2004- | 38 | 1 | GKC,HFX,HHH, | |
| POLO CLASSIC "CN"03>06 | 2003-2006 | 38 | 1 | G1A | |
| POLO CLASSIC (AUS) "CN"03>06 | 2003-2006 | 38 | 1 | ||
| POLO "CN"02>06 | 2002-2006 | 38 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
09G321407 Audi Oil Filling Tube | Genuine OEM is fitted on: jetta variant 2009-2014; golf estate 2009-2013; Jetta Vagon 08> 2008-; octavia ambiente 2008-2013; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; JETTA 06> 2006-; ALTEA 07> 2006-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; LEON 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; New Beetle Cabrio. 2003-2005; TOURAN 2003-2005; GOLF 2003-2005; New Beetle 2001-2005; Golf Brasil "BR."08> 2007-; Jetta City "Mex"08> 2007-; Jetta "USA"05> 2005-; BORA-FAW "CN" 06> 2005-; Golf/Rabbit 2005-2007; TOURAN (SVW) "CN"04> 2004-; POLO CLASSIC "CN"03>06 2003-2006; POLO CLASSIC (AUS) "CN"03>06 2003-2006; POLO "CN"02>06 2002-2006.
