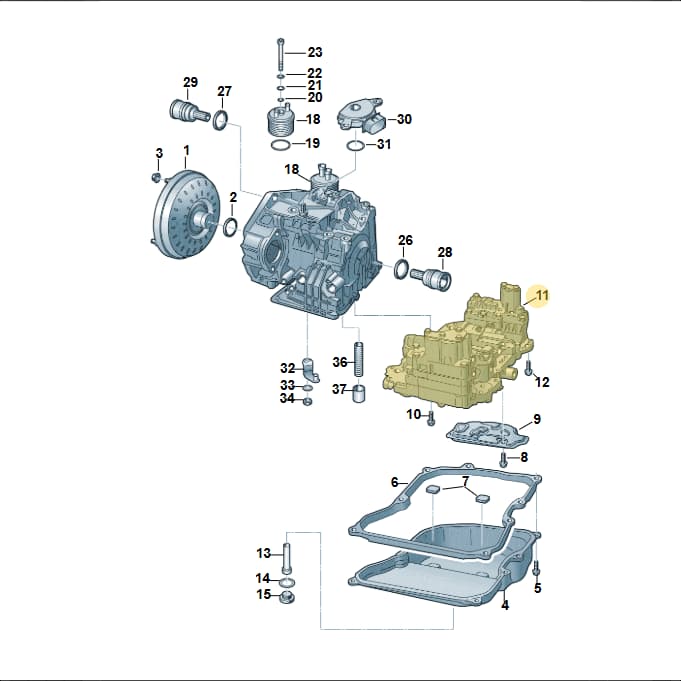

Number 11 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Drawer Block, part number 09M325039A. This component is part of the automatic transmission valve body, controlling fluid flow for gear changes. It is essential for the proper functioning and smooth operation of the transmission. Genuine OEM drawer blocks guarantee correct internal dimensions and material properties for reliable transmission performance.
Catalogue entry: VALVE BODY MKD,MYY,MYZ,; QNS,QNT,QNU,; SGU,SGV.
Fitted with: WHT000309 BOLT, 09M321370A SEAL, WHT000315 BOLT, 09M325429 STRAINER, WHT000311 BOLT, 09M325039 VALVE BODY, 09M325039X VALVE BODY, 09M325039AX VALVE BODY, WHT000307 BOLT.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 87084099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29 × 19 × 15 cm
- Shipping weight
- 7.02 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Gearbox codes
- MKD, MYY, MYZ, QNS, QNT, QNU, SGU, SGV
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
9 vehiclesValve Body — locate 09M325039A Volkswagen Drawer Block | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Converter 09M323571A
- 2Seal Washer 09K321243
- 3Part N10169201
- 4Oil Sump 09M321361A
- 5Bolt WHT000309
- 6Seal 09M321370A
- 7Magnet 09D321368
- 8Bolt WHT000315
- 9Strainer 09M325429
- 10Bolt WHT000311
- 11Valve Body 09M325039AX
- 11Valve Body 09M325039
- 11Valve Body 09M325039X
- 12Bolt WHT000307
- 13Oil Pipe 09M321363B
- 14Seal Ring 09D321181B
- 15Screw WHT000310A
- 18Oil Cooler 09M409061
- 19Seal Ring 001409069B
- 20Seal Ring 001409069
- 21Washer 001301093B
- 22Seal Ring 09G409539
- 23Screw 09G409067
- 26Seal Ring 09G409528
- 26Seal 09G301189
- 27Seal 09M321243A
- 27Seal 09M321243B
- 27Seal 09M321243
- 31Seal Washer 09D321199
- 32Lever 09G321175
- 33Plate 09G321381
- 34Part WHT001425
- 36Spring 09M325233
- 37Piston 09G325215
Compatible / alternative parts(12)
Vehicle fitment table9
Europe (8)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi Q3 2.0 TDI | 2014-2019 | 11 | 1 | QNU,QNT,SGV, |
| Tiguan 4Motion | 2011-2018 | 11 | 1 | MK |
| Passat CC | 2011-2016 | 11 | 1 | |
| Audi Q3 quattro | 2011-2015 | 11 | 1 | MYY,MYZ,QNU, |
| Passat CC | 2008-2012 | 11 | 1 | |
| passat estate | 2008-2011 | 11 | 1 | KFD,KFE |
| Passat/4Motion 08 | 2007- | 11 | 1 | KFE,KFD |
| TIGUAN 08> | 2007- | 11 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Tiguan | 2009-2019 | 11 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
09M325039A Volkswagen Drawer Block | Genuine OEM is fitted on: Audi Q3 2.0 TDI 2014-2019; Tiguan 4Motion 2011-2018; Passat CC 2011-2016; Audi Q3 quattro 2011-2015; Passat CC 2008-2012; passat estate 2008-2011; Passat/4Motion 08 2007-; TIGUAN 08> 2007-; Tiguan 2009-2019.
