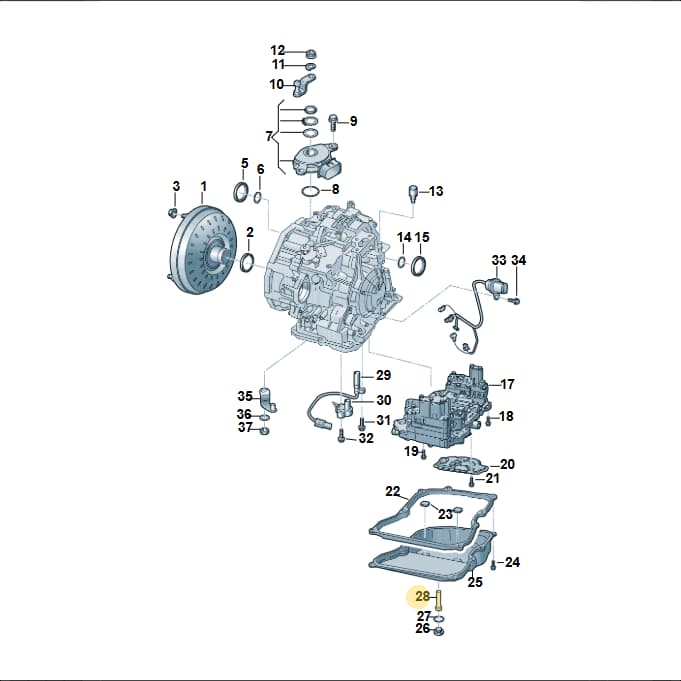

Number 28 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Oil Hose, part number 09Q321363. This oil hose is a component of the transmission system, carrying transmission fluid. Made from high-quality materials to withstand oil pressure and temperature. Genuine OEM parts ensure exact fit and function within the transmission.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 87084099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 8 × 1 × 1 cm
- Shipping weight
- 0 kg
Parts diagram & fitment
2 vehiclesOil Pipe — locate 09Q321363 Volkswagen Oil Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(35)
- 1Converter 09Q323571
- 1Converter 09Q323571A
- 2Seal Washer 09P321243
- 3Part N10169201
- 5Seal Washer 09Q321243A
- 5Seal Washer 09Q321243C
- 6Seal 09P301193A
- 7Switch 09G919823
- 8Seal Washer 09D321199
- 9Bolt WHT000325A
- 10Lever 09Q321171
- 10Lever 09Q321171A
- 11Washer WHT000304
- 12Part N01100840
- 13Adapter 09G301469A
- 15Seal Washer 09Q321243B
- 17Valve Body 09P325039
- 18Bolt WHT000307
- 19Bolt WHT008567
- 20Strainer 09Q325429
- 21Screw WHT001866
- 22Seal 09P321370
- 23Magnet 09P321368
- 24Bolt WHT000309
- 25Oil Sump 09Q321361
- 26Screw WHT000310A
- 27Seal Ring 09D321181B
- 29Sender 09G927321D
- 30Sender 0C8927321
- 31Bolt WHT000308
- 32Bolt WHT008568
- 33Loom 09P927363
- 34Bolt WHT008576
- 36Plate 09G321381
- 37Part WHT001425
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
09Q321363 Volkswagen Oil Hose | Genuine OEM is fitted on: MAN TGE 55 2016-2021; MAN TGE 35 2016-2021.
