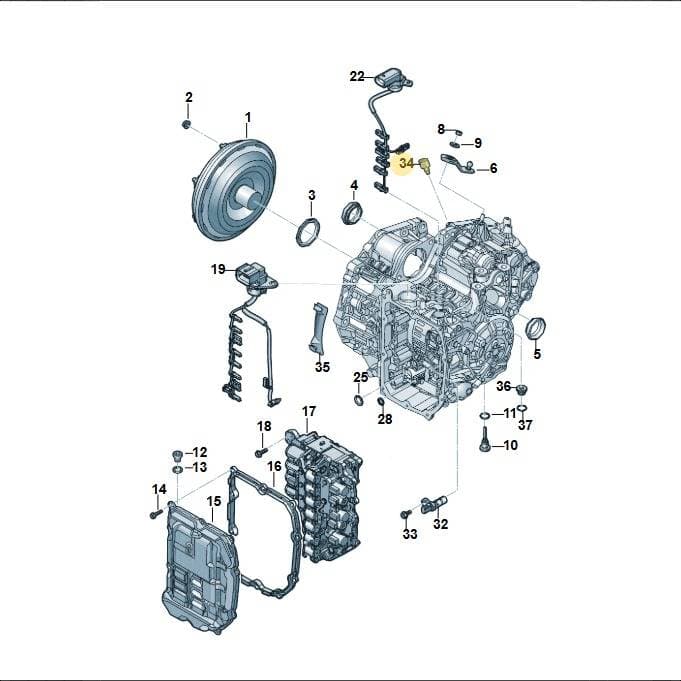

Number 34 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Breather Assembly, part number 09U301469. This assembly allows for pressure equalization within the gearbox, preventing seal damage and oil leaks. It is located at position 34 in the diagram. Genuine OEM breathers ensure proper ventilation and prevent internal pressure buildup.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 39269097
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Parts diagram & fitment
3 vehiclesBreather Assy — locate 09U301469 Volkswagen Breather Assembly | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(29)
- 1Converter 09U323571C
- 1Converter 09U323571B
- 1Bolt N91030402
- 2Part N10169201
- 3Seal Washer 09U321176
- 4Seal Washer 09U321243
- 4Bolt N10706901
- 5Seal Washer 09U321243B
- 6Lever 09U321171
- 7Bolt N91030102
- 8Part WHT011537
- 9Washer WHT011492
- 10Screw WHT011508
- 11Seal Ring WHT011494
- 12Screw WHT011519
- 13Seal Ring WHT011495
- 14Screw WHT011498A
- 15Oil Sump 09U321361
- 16Seal 09U321370
- 17Valve Body 09U325039
- 18Screw WHT011501
- 25Seal 09U325141A
- 28Seal 09U325141
- 32Sensor 09U927321
- 33Screw WHT011502
- 35Cover 09U301160
- 35Cover 09U301423
- 36Screw WHT011520
- 37Seal Ring WHT011496
