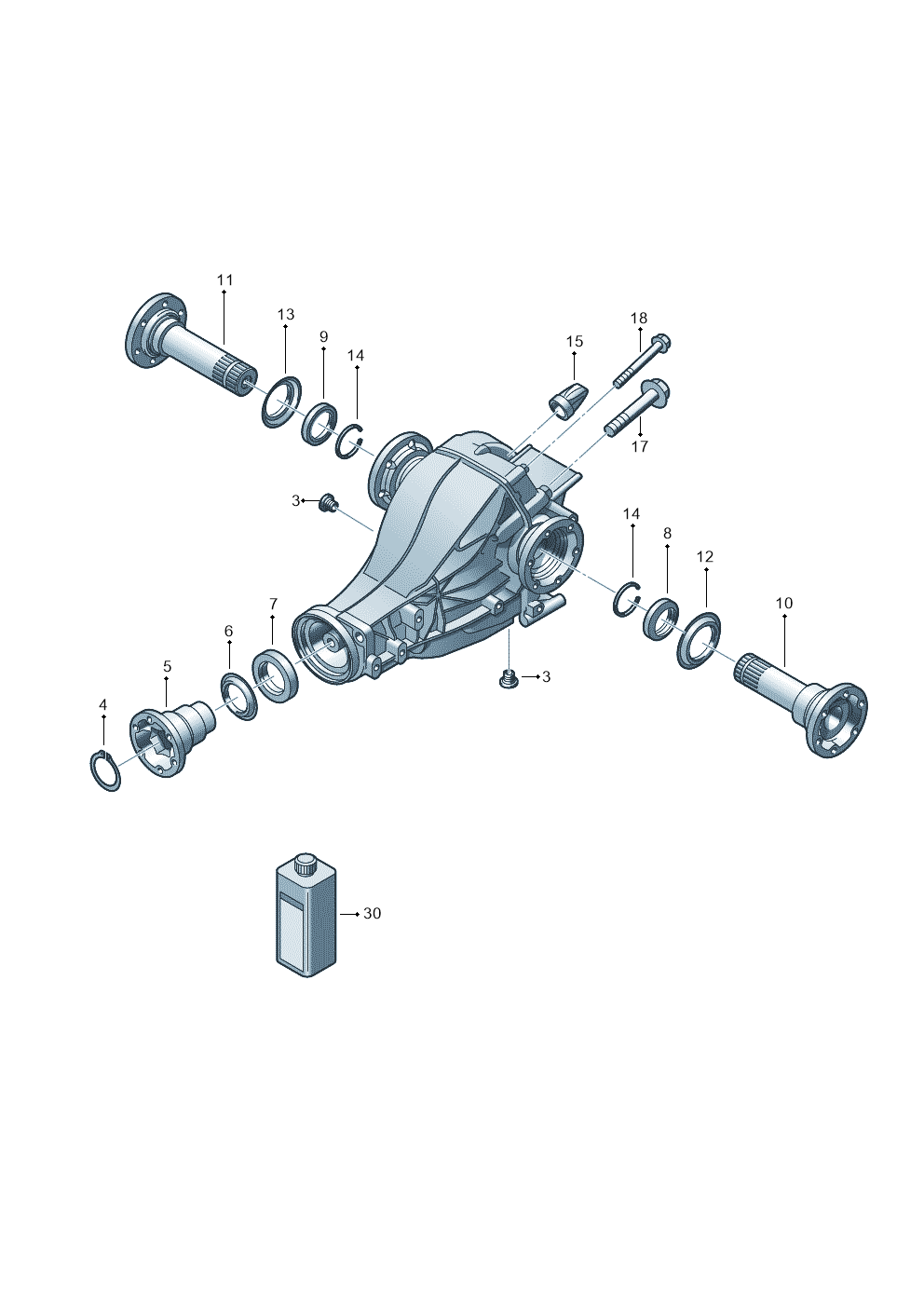

Shaft Oil Seal exploded parts diagram — Audi Q5 qu. 2.0 · 2009-2018, position 8
Exploded view
Audi Q5 qu. 2.0 · 2009-2018 · position 8Full diagram ↓
0AR409399

0AR409399 Shaft Oil Seal

£6.59
£5.45 excl. VAT
Supersession roadoldest to newest
  1. 0AR409399This pageNot stocked
    Oct 2010
  2. 0AR409399BCurrent number
Current part number0AR409399BWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

11 vehicles

Shaft Oil Seal — locate Shaft Oil Seal in the official exploded view and explore the surrounding assembly.

Parts in this assembly13
Vehicle fitment table11

Europe (10)

VehicleYearsPos.QtyPR
Audi Q5 qu. 2.02009-201881G0L
phaeton 4motion2008-201081
Audi RS4 Cabrio qu. 08>2007-81G0L
PHAETON 08>2007-811X1
Audi RS6 Avant qu.5.02007-201081G0R
Audi RS4 qu. 07>2006-81G0L
Audi A4/S4 Cabrio./qu. 07>2006-81G0L
Audi A4/S4/Av./qu. 05>2005-811YE
Audi A6/S6/Avant/qu. 05>2004-81G0L
Audi A8/S8/qu. lang2003-200781G0R

Other markets (1)

VehicleYearsPos.QtyPR
AUDI A6L "CN"05>2005-81

Diagrams & fitment data powered by oemdiagrams.com

Shaft Oil Seal is fitted on: Audi Q5 qu. 2.0 2009-2018; phaeton 4motion 2008-2010; Audi RS4 Cabrio qu. 08> 2007-; PHAETON 08> 2007-; Audi RS6 Avant qu.5.0 2007-2010; Audi RS4 qu. 07> 2006-; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007; AUDI A6L "CN"05> 2005-.
