0BH398029A Repair Set For Multi-Coupling
- 0BH398029AThis pageNot stocked
Jan 2014 - 0BH398029BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

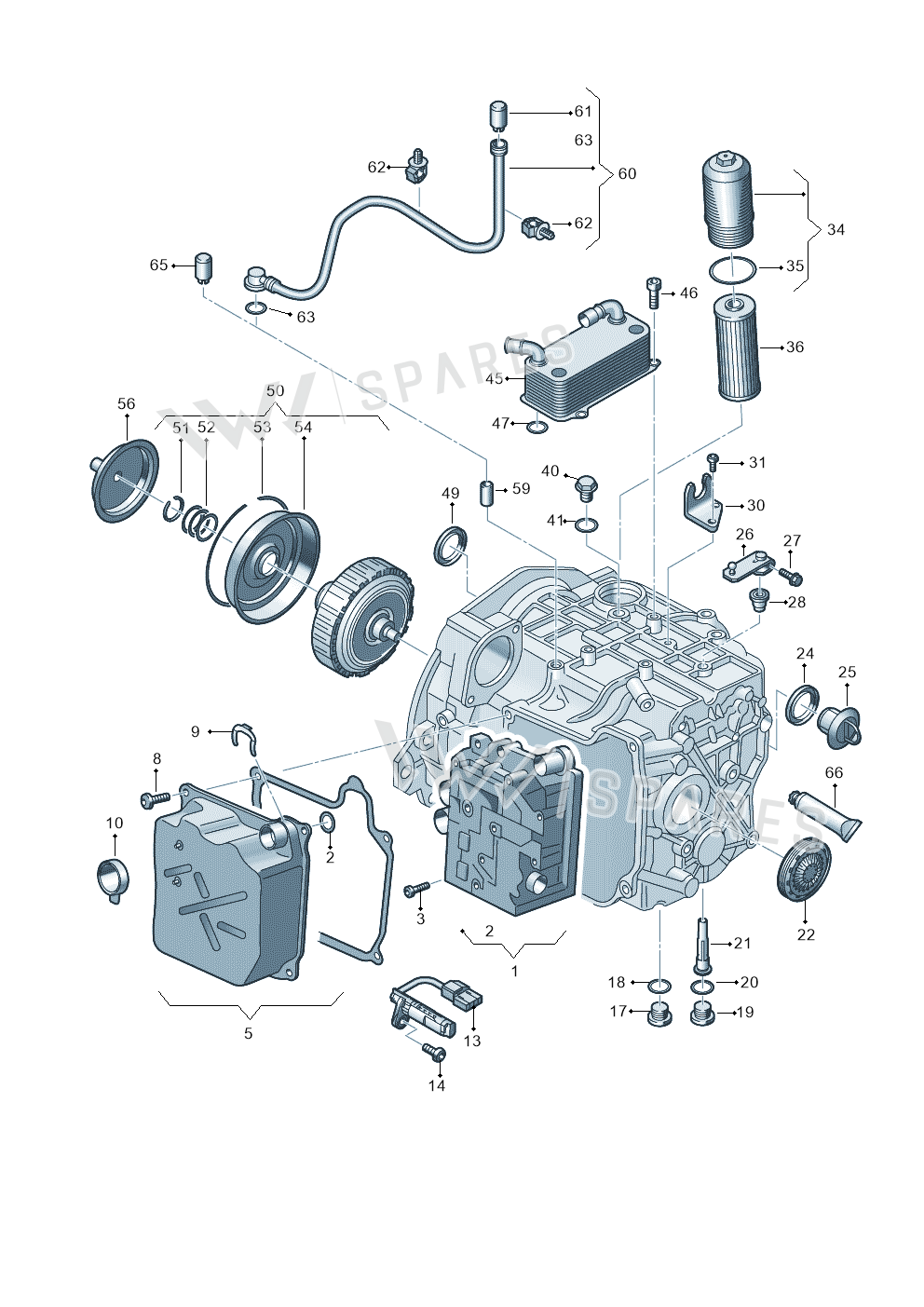

11 vehiclesRepair Set For Multi-coupling — locate Repair Set For Multi-Coupling in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Mechatron 0BH325025J
- 1Mechatron 0BH325025M
- 2Seal 0GC927377
- 3Screw N10554002
- 5Cover 0BH325201C
- 5Cover 0GC325201E
- 8Part N91032702
- 9Clip 0BH325147
- 10Part 02E311120A
- 13Sensor 0BH927321A
- 14Bolt N10124304
- 17Screw N10637901
- 18Seal Ring N0138132
- 19Screw N90215404
- 20Seal Ring N0438092
- 21Oil Pipe 0BH321363
- 22Cover 0BH301125C
- 24Seal WasherLeft0BH409400B
- 25PartLeft0BT311120
- 26Lever 0BH321171
- 27Bolt N90441603
- 28Seal Ring 095321182B
- 30Abutment 0BH321397
- 31Bolt N90785203
- 34Housing 0BH325159
- 35Seal Ring N91084501
- 36Filterelem 0GC325183A
- 40Bolt N91180601
- 41Seal Ring WHT003706
- 45Oil Cooler 0BH317019
- 45Oil Cooler 0BH317019A
- 46Screw N10644901
- 47Seal Ring N91027901
- 49Seal WasherRight09A409400A
- 50Rep Set 0BH398029B
- 51Ring 0BH311321
- 52Shims 0BH398008
- 53Ring 0BH301859A
- 54Cover 0BH301205D
- 56Part 0BT311120B
- 56Protective Cap 0BT311120C
- 59Pipe 0AM409847
- 60Pipe 0BH301472C
- 61Ap Cap For Venting The Gearbox Cap For Venting 095409841
- 62Bracket N10507901
- 63Seal Ring WHT005649
- 66Locking D197300A2
- 66Grease G000100
Vehicle fitment table11
Europe (11)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Tiguan 4Motion | 2011-2018 | 50 | 1 | |
| transp. caravelle | 2011-2015 | 40 | 1 | |
| transp. dropside | 2011-2015 | 40 | 1 | |
| California Camper | 2011-2015 | 40 | 1 | |
| Audi Q3 quattro | 2011-2015 | 40 | 1 | |
| Audi RS3 Sportback | 2011-2012 | 40 | 1 | |
| Audi TTRS Plus Coupe | 2009-2014 | 40 | 1 | D |
| transp. caravelle | 2009-2011 | 40 | 1 | |
| transp. dropside | 2009-2011 | 40 | 1 | |
| California Camper | 2009-2011 | 40 | 1 | |
| TIGUAN 08> | 2007- | 40 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Repair Set For Multi-Coupling is fitted on: Tiguan 4Motion 2011-2018; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; Audi Q3 quattro 2011-2015; Audi RS3 Sportback 2011-2012; Audi TTRS Plus Coupe 2009-2014; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; TIGUAN 08> 2007-.
