0CN409053AF Final Drive Gearbox
- 0CN409053SNot stocked
Jul 2016 - 0CN409053ADNot stocked
Aug 2016 - 0CN409053AFThis pageNot stocked
Jun 2019 - 0CN409053ANCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

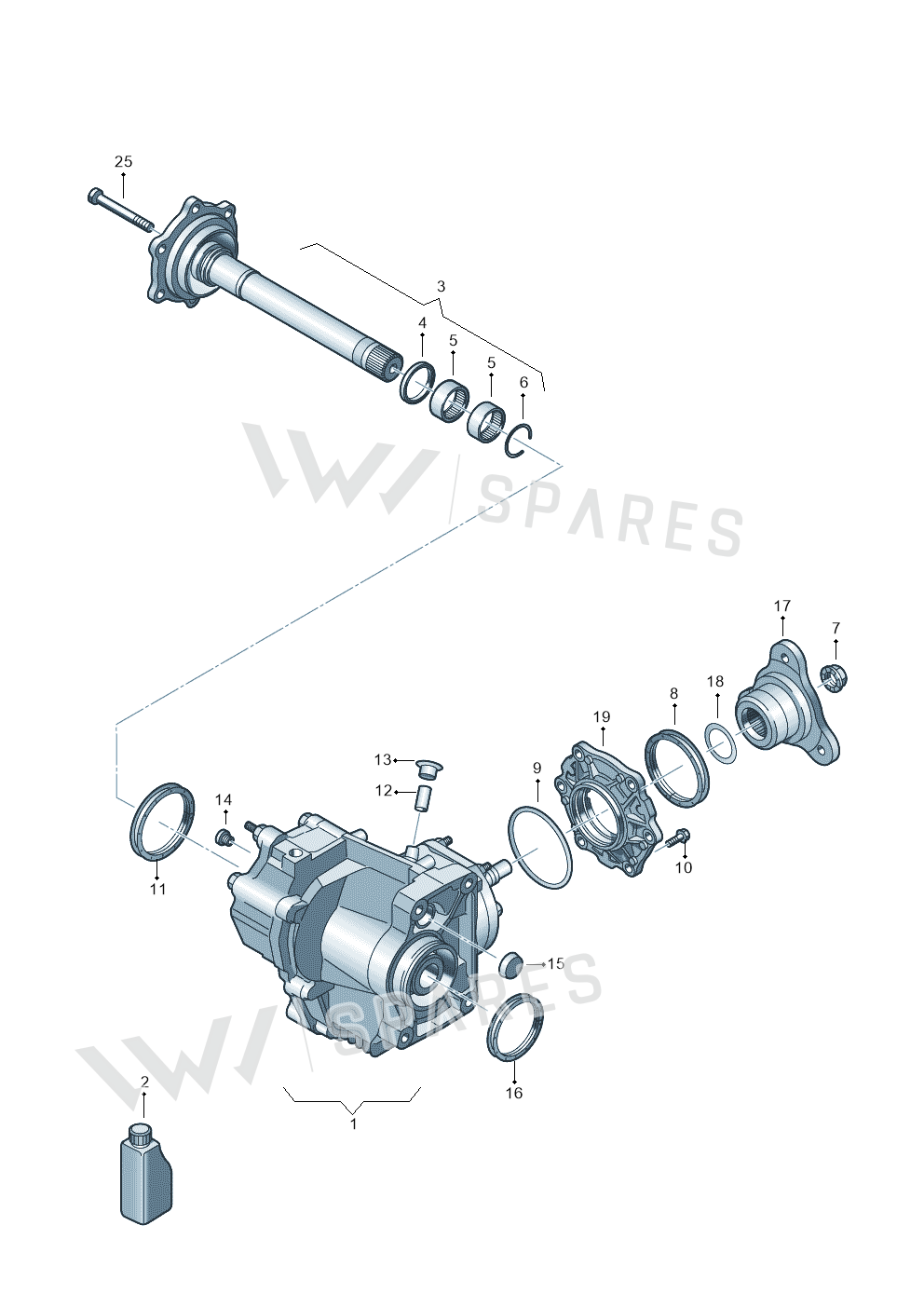

18 vehiclesFinal Drive Gearbox — locate Final Drive Gearbox in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 2Axle Oil G052145S2
- 3Flanshaft 0CN409351A
- 3Flanshaft 02M409351M
- 4Seal Ring 0CN409464
- 4Seal Ring 02M409464
- 5Sleeve 012409139A
- 6Circlip 0CN409419
- 6Circlip 012409419
- 7Part WHT005781
- 7Hexagon Nut N90443801
- 8Seal 0CN525596B
- 8Seal 02D525596F
- 9Seal Ring WHT005785
- 9Seal Ring N90999001
- 10Bolt WHT005784
- 10Bolt N10128110
- 11Seal 0CQ525596A
- 12Sleeve 02H409275A
- 13Ap Cap For Venting The Gearbox Cap For Venting 0DJ301485
- 14Bolt N90281802
- 15Cover WHT005787
- 15Cover N01191410
- 16Seal 0CN409529A
- 16Seal 09A409529C
- 17Flange 0CN409273
- 17Flange 02M409273D
- 25Screw 02E409359
Vehicle fitment table18
Europe (17)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Kodiaq | 2018-2022 | 1 | 1 | ||
| Karoq | 2017-2022 | 1 | |||
| Octavia | 2017-2020 | 1 | 1 | PZS,QSP,SFX, | |
| Kodiaq | 2016-2024 | 1 | |||
| Audi A3 Sportback | 2016-2020 | 1 | 1 | D | |
| Audi A3 Cabrio | 2016-2020 | 1 | 1 | D | |
| Leon ST Stylance | 2016-2020 | 1 | MOT. OTTO | ||
| Audi Q2 2.0 TDI | 2016-2018 | 1 | 1 | RSA | |
| Superb Combi | 2015-2024 | 1 | 1 | ||
| Audi TTS Coupe 2.0 | 2014-2023 | 1 | 1 | D | |
| Golf Estate 1.4 | 2014-2017 | 1 | 1 | G0R | |
| Golf Estate | 2013-2017 | 1 | 1 | PZS,QSP,SGA | |
| Audi A3 Cab. 1.4 | 2013-2016 | 1 | 1 | PUR,QSP | G0R |
| Octavia | 2012-2017 | 1 | 1 | NU | |
| Golf 1.4 BlueMotion | 2012-2017 | 1 | 1 | ||
| Audi A3 Sportback | 2012-2016 | 1 | 1 | NYY,PPQ,PUR, | |
| Leon ST Stylance | 2012-2016 | 1 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| POLO HATCH "ZA"06> | 2005- | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Final Drive Gearbox is fitted on: Kodiaq 2018-2022; Karoq 2017-2022; Octavia 2017-2020; Kodiaq 2016-2024; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Leon ST Stylance 2016-2020; Audi Q2 2.0 TDI 2016-2018; Superb Combi 2015-2024; Audi TTS Coupe 2.0 2014-2023; Golf Estate 1.4 2014-2017; Golf Estate 2013-2017; Audi A3 Cab. 1.4 2013-2016; Octavia 2012-2017; Golf 1.4 BlueMotion 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016; POLO HATCH "ZA"06> 2005-.
