0CN409053AM Final Drive Gearbox
- 02Q300014FNot stocked
Jan 2017 - 0AV409053ADNot stocked
Apr 2017 - 0CN409053AENot stocked
Apr 2019 - 0CN409053AMThis pageNot stocked
Jun 2023 - 0CN409053ARCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

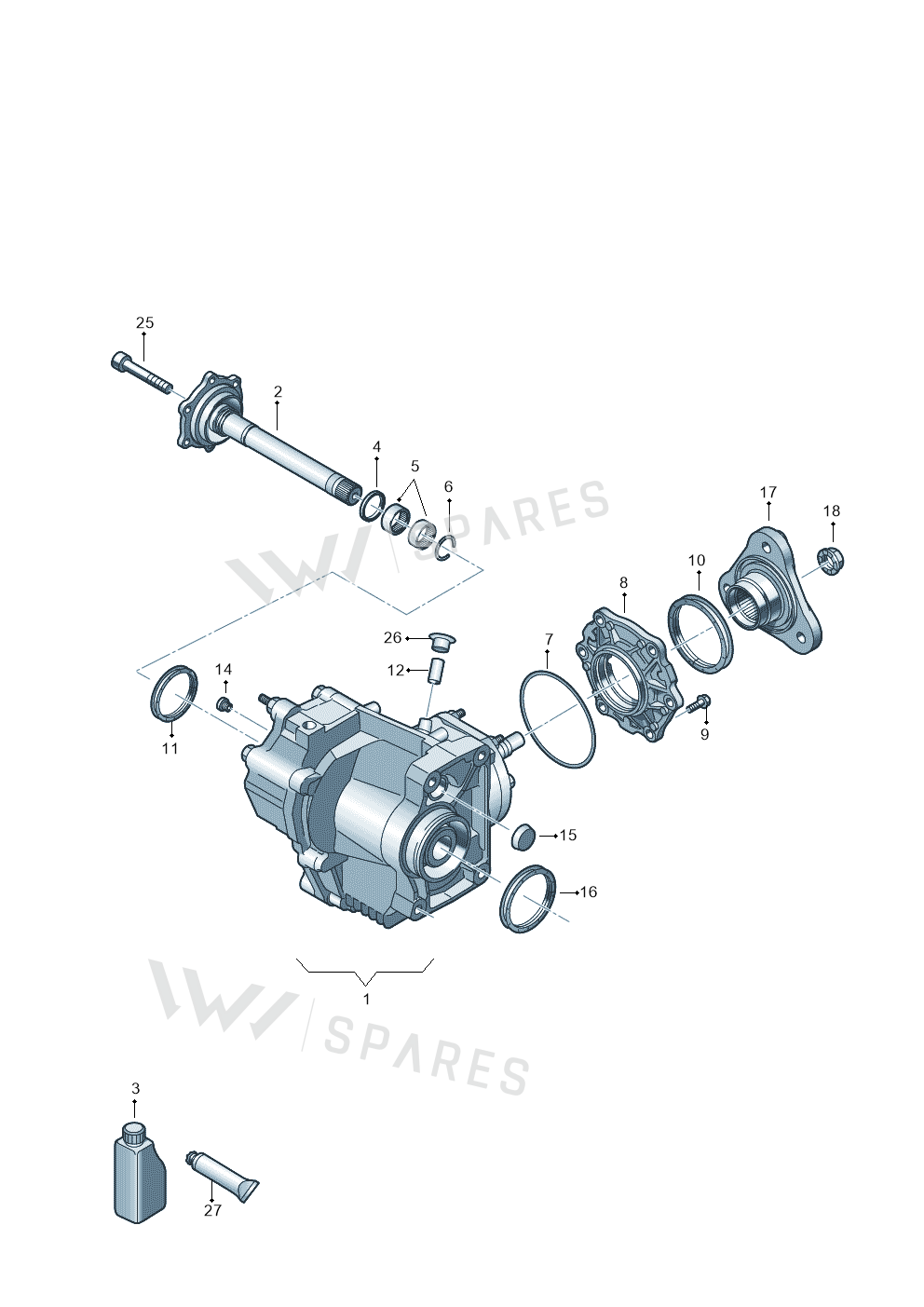

14 vehiclesFinal Drive Gearbox — locate Final Drive Gearbox in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 2Flanshaft 0CN409355
- 3Axle Oil G052145S2
- 4Seal Ring 0CN409464
- 5Sleeve 012409139A
- 6Circlip 0CN409419
- 7Seal Ring WHT005785
- 9Bolt WHT005784
- 10Seal 0CN525596B
- 11Seal 0CQ525596A
- 12Sleeve 02H409275A
- 14Bolt N90281802
- 15Cover WHT005787
- 16Seal 0CN409529A
- 18Part WHT005781
- 25Screw 02J409359
- 26Ap Cap For Venting The Gearbox Cap For Venting 0DJ301485
- 27Seal Greas G055128A1
- 27Seal Greas G052128A1
Vehicle fitment table14
Europe (12)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Kodiaq | 2018-2022 | 1 | |
| Audi Q3 quattro | 2018-2019 | 1 | |
| T-Roc BlueMotion | 2017-2024 | 1 | |
| Tiguan 2.0 4Motion | 2017-2024 | 1 | 1 |
| Karoq | 2017-2022 | 1 | |
| Octavia | 2017-2020 | 1 | 1 |
| Tiguan 2.0 4Motion | 2016-2024 | 1 | |
| golf 2.0 | 2016-2020 | 1 | |
| Superb Combi | 2015-2024 | 1 | 1 |
| caddy kombi | 2015-2020 | 1 | |
| Passat saloon | 2014-2024 | 1 | |
| Audi Q3 2.0 TDI | 2014-2019 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 1 | |
| POLO HATCH "ZA"06> | 2005- | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Final Drive Gearbox is fitted on: Kodiaq 2018-2022; Audi Q3 quattro 2018-2019; T-Roc BlueMotion 2017-2024; Tiguan 2.0 4Motion 2017-2024; Karoq 2017-2022; Octavia 2017-2020; Tiguan 2.0 4Motion 2016-2024; golf 2.0 2016-2020; Superb Combi 2015-2024; caddy kombi 2015-2020; Passat saloon 2014-2024; Audi Q3 2.0 TDI 2014-2019; Tiguan 2.0 4Motion 2016-2022; POLO HATCH "ZA"06> 2005-.
