0CS301230B Switch Unit
- 0CS301230ANot stocked
Jan 2019 - 0CS301230BThis pageNot stocked
Sep 2018 - 0CS301230CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

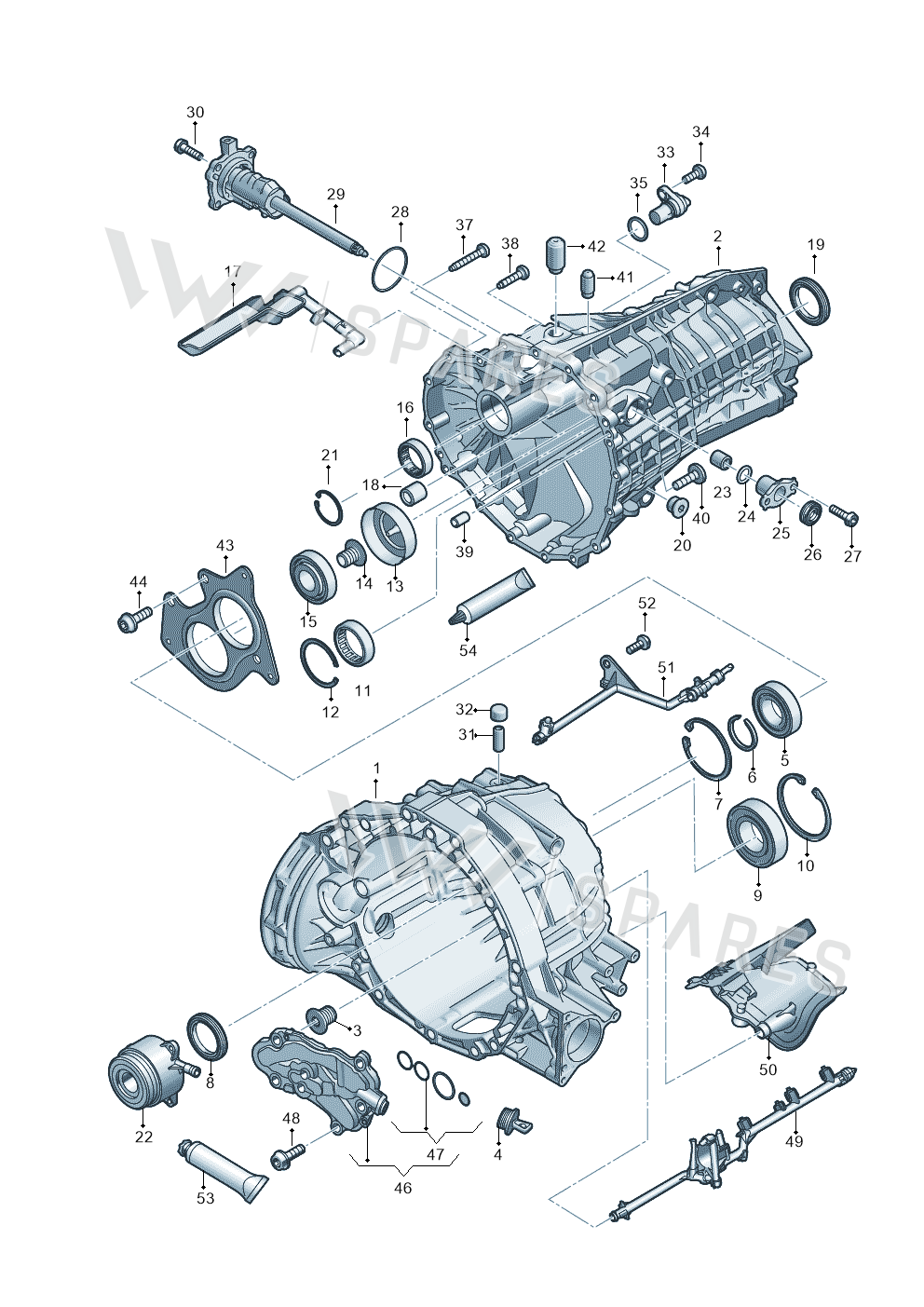

3 vehiclesSwitch Unit — locate Switch Unit in the official exploded view and explore the surrounding assembly.
Parts in this assembly47
- 3Screw WHT007649
- 4Bungs 02M301115B
- 5Bearing 0B1311965E
- 6Ring 0B1311321M
- 6Ring 0B1311321N
- 6Ring 0B1311321L
- 7Ring 0CS311187A
- 8Seal Washer 0CS311113A
- 9Bearing 0CS311966C
- 10Ring 0CS311187
- 11Sleeve 0CS311429
- 12Ring 0CV311344
- 13Sleeve 0CS311539C
- 14Screw WHT007671A
- 15Bearing 0CS311733B
- 16Sleeve 0CS311373
- 17Drip Tray 0DJ301279B
- 18Sleeve 0CS311572
- 19Seal Washer 0CJ409400A
- 20Screw WHT005804
- 21Ring N91219701
- 22Part 0CS141671C
- 23Sleeve 01E311572
- 24Seal Ring 01M323255
- 25Bush 0B4301459B
- 26Seal 0CS301457A
- 27Bolt N10710402
- 28Seal Ring WHT002593
- 31Sleeve 02H409275A
- 32Ap Cap For Venting The Gearbox Cap For Venting 014301485
- 33Sensor 0B3927753A
- 35Seal Ring WHT008644
- 37Bolt N10623801
- 38Bolt WHT002459
- 39Sleeve 0CS301473
- 40Bolt WHT001959A
- 41Sleeve 0B1301242K
- 42Sleeve 0B1301242J
- 43Plate 0DJ311485B
- 44Screw N10689303
- 46Oil Pump 0DJ315105D
- 47Gask Set 0CS398001
- 49Pipe 0DJ301513
- 50Oil Filter 0DJ301519A
- 51Pipe 0DJ301296
- 53Seal Greas G052128A1
- 54Seal Comp AMV18800102
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q5 | 2016-2020 | 29 | 1 |
| Audi A5 Sportback | 2016-2020 | 29, 2 | 1 |
| audi a4 2.0 | 2015-2019 | 29, 2 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Switch Unit is fitted on: Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; audi a4 2.0 2015-2019.
