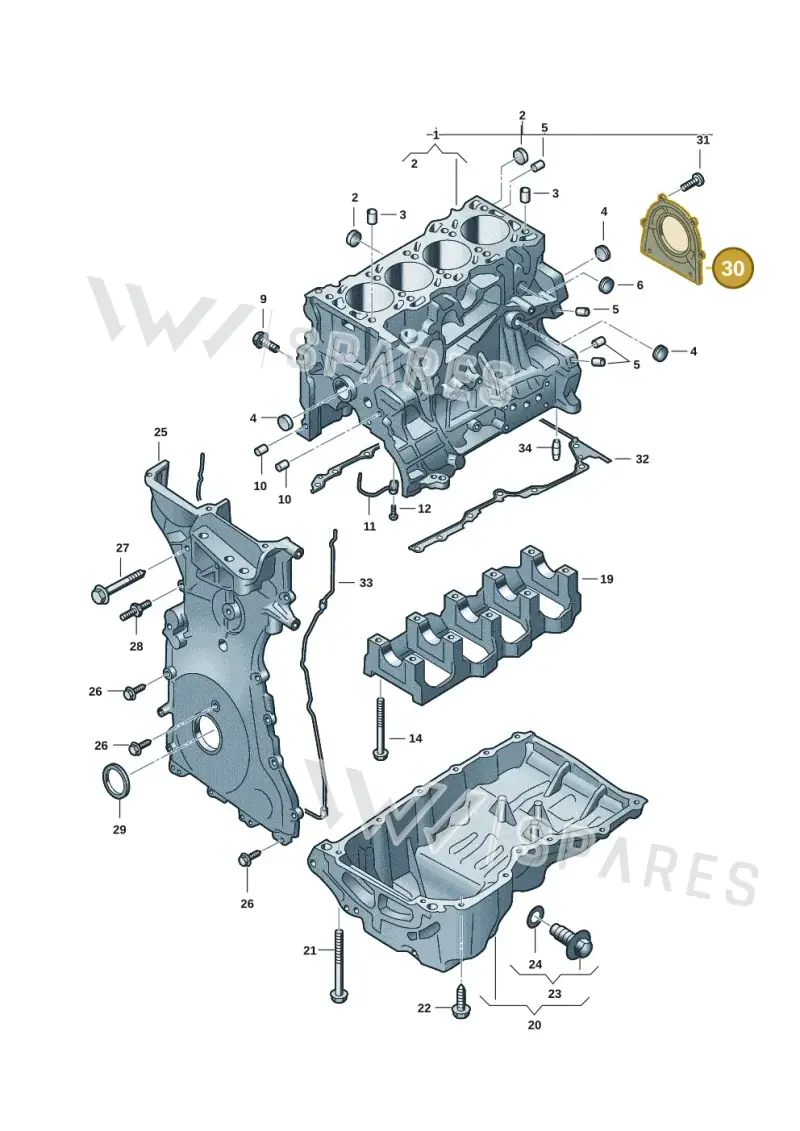

Number 30 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Sealing Flange, part number 0XW103171F. This flange is designed to connect or seal various engine components, ensuring proper assembly and preventing leaks. It is located as part number 30 in the engine block diagram. The part weighs 0.303 kg and has dimensions of 0.19m x 0.18m x 0.028m. Genuine OEM sealing flanges are manufactured to exact tolerances to ensure a perfect seal, preventing oil or coolant leaks and maintaining engine integrity.
Catalogue entry: FLANGE.
Fitted with: WHT010843 PIN.
Technical details
- Category
- Engine
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 19 × 18 × 2.8 cm
- Shipping weight
- 0.3 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleSealing Flange — locate 0XW103171F Volkswagen Sealing Flange | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Crankcase 0XW103011
- 3Part WHT011028
- 4Screw WHT010900
- 5Part WHT010848
- 6Screw WHT010577
- 9Screw WHT010563
- 10Bush WHT010632
- 11Vent 0XW103157
- 12Part WHT010843
- 14Bolt WHT011398
- 20Oil Sump 0XW103601C
- 22Part WHT010839
- 23Bolt WHT011376
- 24Seal Ring 0XW103677
- 25Case 0XW109108A
- 26Part WHT010937
- 27Part WHT010390
- 28Bolt WHT010871
- 29Seal 0XW103085
- 34Part WHT010714
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Amarok twin cab | 2022- | 30 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
0XW103171F Volkswagen Sealing Flange | Genuine OEM is fitted on: Amarok twin cab 2022-.
