191501615A Brake Drum
- 191501615AThis pageNot stocked
Jul 1995 - 1H0501615ADiscontinued
Jun 2024
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

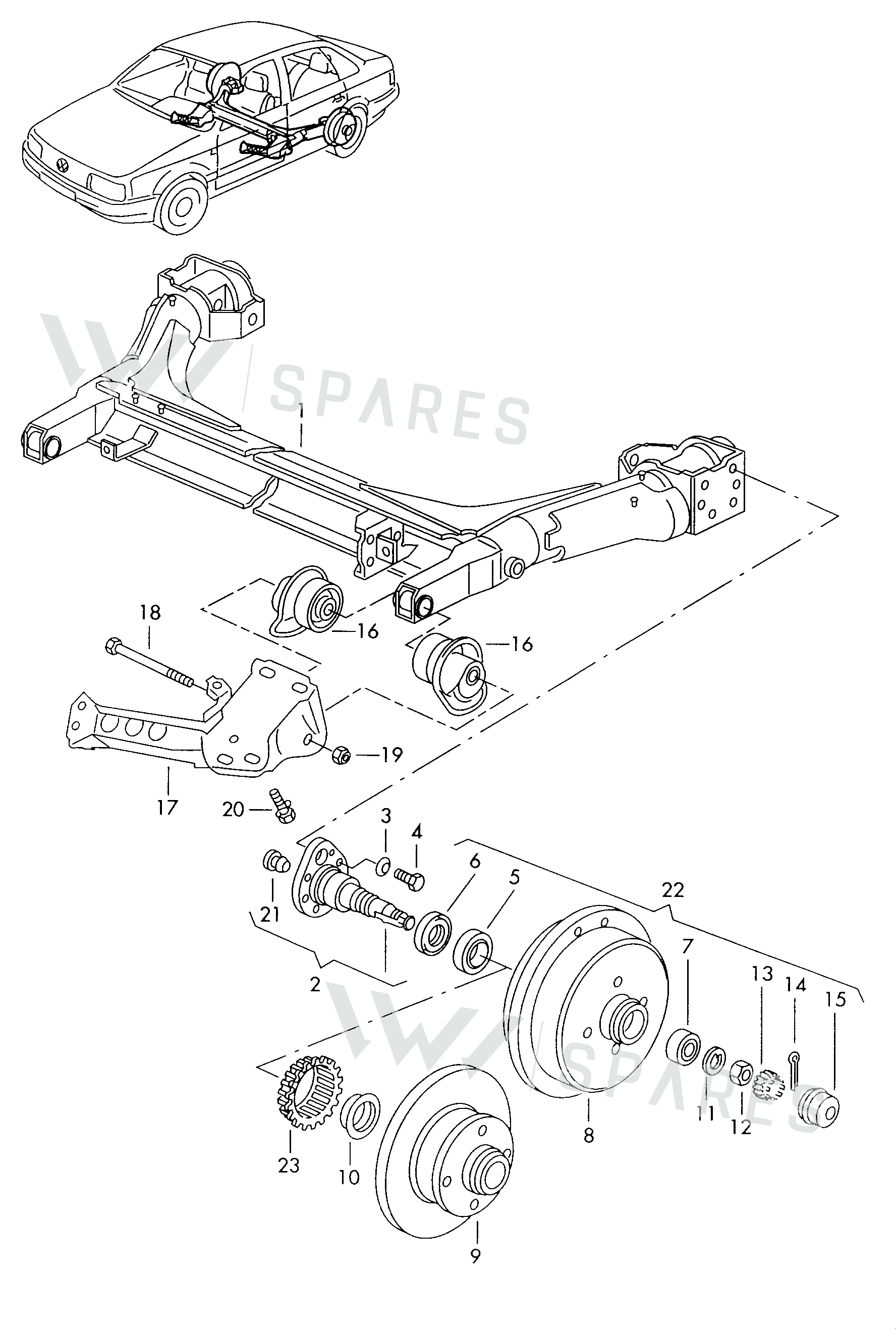

13 vehiclesBrake Drum — locate Brake Drum in the official exploded view and explore the surrounding assembly.
Parts in this assembly21
- 1Part 3A0500051
- 2PartLeft333501117A
- 2PartRight333501118
- 2PartRight333501118A
- 2PartLeft333501117
- 3Spring 321501119A
- 4Bolt N90877301
- 5Mounting 311405625F
- 6Seal 357501641B
- 7Mounting 311405645B
- 9Brakedisc 357615601B
- 9Brakedisc 357615601
- 12Part N0111671
- 13Fuse 803501221
- 14Part N0125361
- 17BracketRight357501546
- 17BracketLeft357501544A
- 19Collar Nut N90323704
- 20Bolt N10141701
- 21Bungs 191501159
- 23Rotor 1J0614149
Vehicle fitment table13
Europe (8)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Passat | 1989-1991 | 8 | 2 | |
| Jetta | 1989-1991 | 17 | 2 | |
| Jetta 89 | 1988-1989 | 17 | 2 | |
| Audi 4000 S | 1984-1987 | 6 | 2 | |
| Audi 4000 | 1981-1984 | 6 | 2 | |
| Audi Fox | 1976-1978 | 9, 8 | 2 | |
| Dasher | 1973-1977 | 8 | 2 | "S.."; |
| Audi Fox | 1972-1976 | 9, 8 | 2 |
Other markets (5)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Quantum | 1986-1988 | 8 | 2 | |
| Quantum 85 | 1984-1985 | 8 | 2 | |
| Quantum | 1981-1984 | 8 | 2 | |
| Rabbit | 1976-1978 | 8 | 2 | "S.." |
| Rabbit | 1974-1976 | 8 | 2 | "S.." |
Diagrams & fitment data powered by oemdiagrams.com
Brake Drum is fitted on: Passat 1989-1991; Jetta 1989-1991; Jetta 89 1988-1989; Audi 4000 S 1984-1987; Audi 4000 1981-1984; Audi Fox 1976-1978; Dasher 1973-1977; Audi Fox 1972-1976; Quantum 1986-1988; Quantum 85 1984-1985; Quantum 1981-1984; Rabbit 1976-1978; Rabbit 1974-1976.
