191609528 Brake Shoe With Lining And Brake Lever
- 191609528This pageNot stocked
Mar 2015 - 867698520XDiscontinued
Jun 2016
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

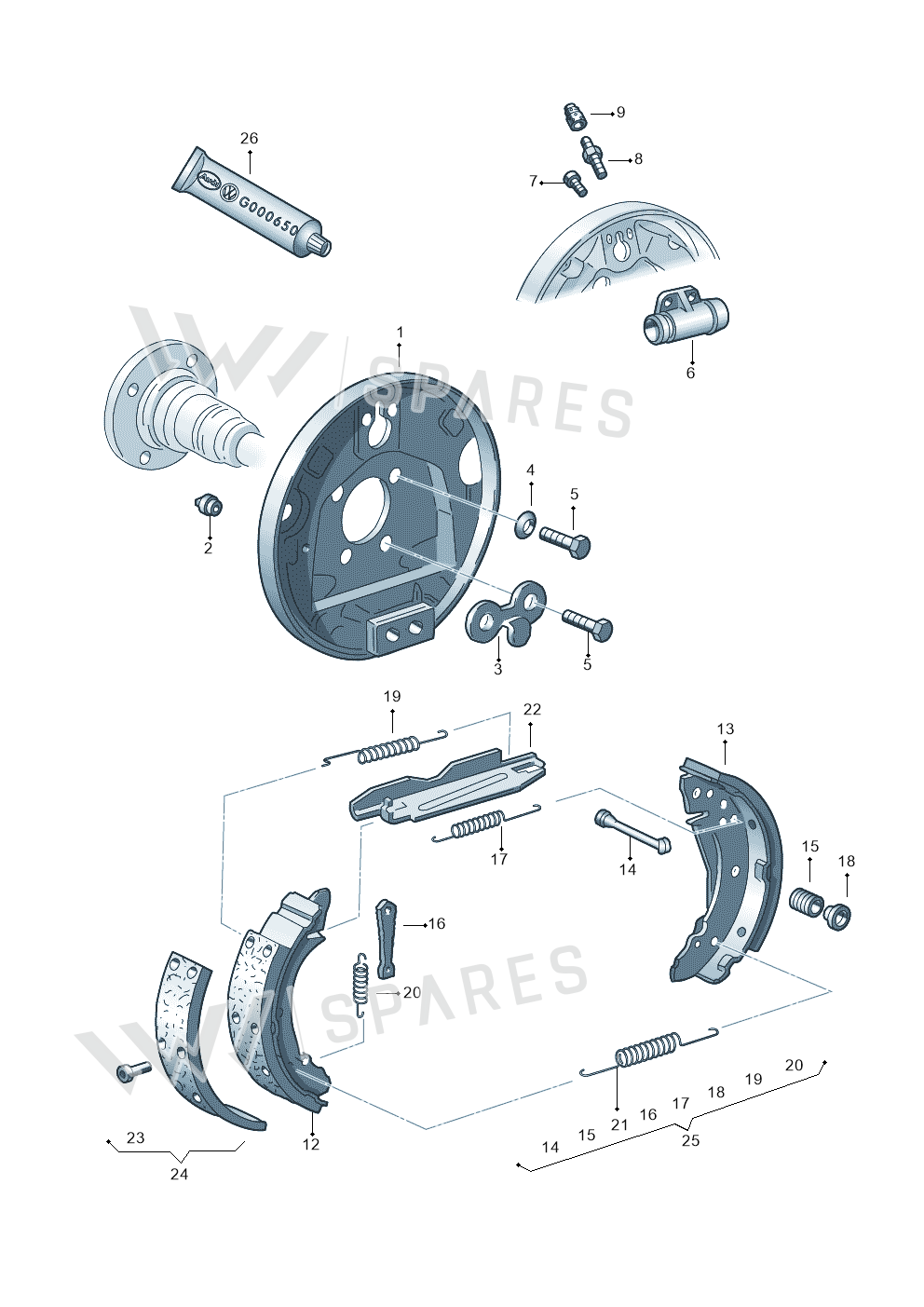

7 vehiclesBrake Shoe With Lining And Brake Lever — locate Brake Shoe With Lining And Brake Lever in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Back PlateRight6N0609426A
- 1Back PlateLeft6N0609425A
- 2Glidepiece 6N0609589
- 2Bungs 171609163
- 3Guide 321609763
- 4Lock Ring N0120113
- 5Bolt N90369801
- 6Brake Cyli 1H0611053A
- 7Screw N90818301
- 8Valve 3A0611475
- 9Part 211611483
- 12Brake Shoe 191609526
- 12Brake Shoe 191609525
- 13Brake Shoe 191609527
- 14Part WHT001953
- 15Press Spring 171609583A
- 16Wedge 171609705
- 17Spring 171609707
- 18Springseat 6Q0609709
- 19Spring 171609711
- 20Spring 171609715
- 21Spring 171609717
- 22Push BarRight171609820B
- 22Push BarLeft171609819B
- 23Rivet N0136331
- 24Brk Lining 191698051
- 25Fixing Set 171698545
- 26Paste G000650
Vehicle fitment table7
Europe (5)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| AROSA | 1997-2003 | 13 | 1 |
| POLO CLASSIC/VARIANT | 1996-1999 | 13 | 1 |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 13 | 1 |
| Polo Classic 96 | 1995-1996 | 13 | 1 |
| Ibiza/Cordoba (SEAT) | 1992-1996 | 13 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| POLO CLASS./PL. "ZA" | 1996-2003 | 13 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| 325 platform | 6 |
Diagrams & fitment data powered by oemdiagrams.com
Brake Shoe With Lining And Brake Lever is fitted on: AROSA 1997-2003; POLO CLASSIC/VARIANT 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; Polo Classic 96 1995-1996; Ibiza/Cordoba (SEAT) 1992-1996; POLO CLASS./PL. "ZA" 1996-2003; 325 platform.
