1E0609745 Bracket
- 6N0609639Not stocked
Nov 1996 - 6N0609639ANot stocked
Feb 1996 - 1H0609745ANot stocked
Feb 2001 - 1E0609745This pageDiscontinued
Jun 2016
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

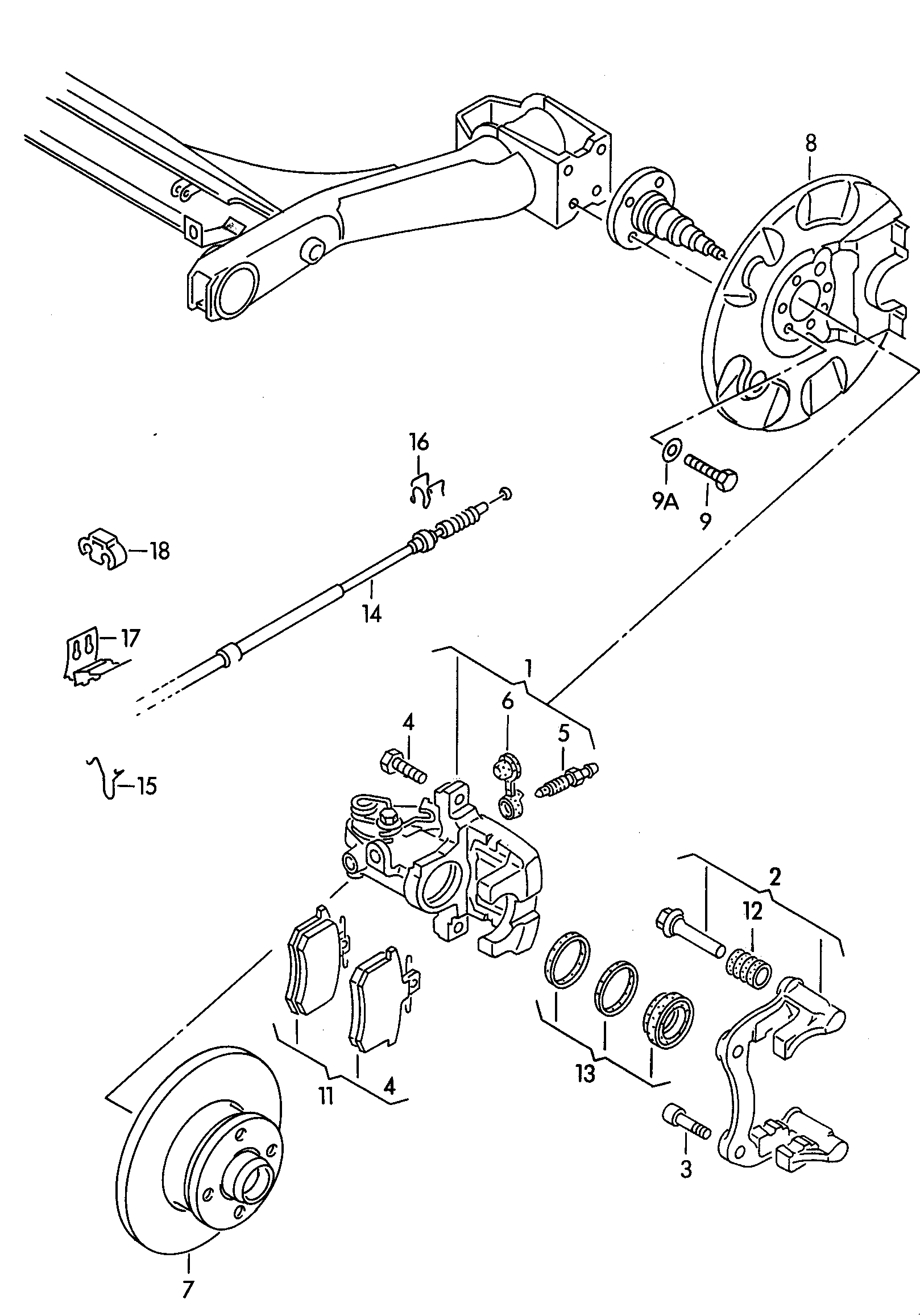

21 vehiclesBracket — locate Bracket in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly18
- 1HousingRight1H0615424DX
- 1Housing 1H0698680X
- 1HousingLeft1H0615423DX
- 2Plate BrakRight1H0615426
- 2Plate BrakLeft1H0615425
- 4Bolt 321615141
- 5Valve 357615273
- 6Part 211611483
- 7Brakedisc 357615601
- 9Bolt N90758901
- 9ASpring 321501119A
- 11Br Lining 1H0698451F
- 12Rep Set 8E0698470B
- 13Gask Set 8D0698671
- 15BracketRight1E0609746
- 16Clip 1H0609747
- 17Clip 1H0609734C
- 18Bracket 811611797
Vehicle fitment table21
Europe (17)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| GOLF CABRIO | 1998-2001 | 15, 18 | 1 | 1KK | |
| GOLF VAR./VENTO | 1996-1999 | 23, 15 | 1 | ||
| POLO CLASSIC/VARIANT | 1996-1999 | 23 | 1 | ||
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 15 | 1 | PR:1KK | |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 23, 15 | 1 | ||
| Golf | 1996-1997 | 23, 15 | 1 | ||
| Polo Classic 96 | 1995-1996 | 23 | 1 | ||
| Golf 96 | 1995-1996 | 23, 15 | 1 | ||
| Golf Var./Vento 96 | 1995-1996 | 23, 15 | 1 | ||
| Passat | 1994-1997 | 23, 15 | 1 | ||
| Derby (MEX) | 1994-1996 | 23 | 1 | ||
| Golf Cabrio | 1994-1996 | 23, 15 | 1 | ||
| Golf/Ecomatic 95 | 1994-1995 | 23, 15 | 1 | ||
| Golf Var./Vento 95 | 1994-1995 | 23, 15 | 1 | ||
| Ibiza/Cordoba (SEAT) | 1992-1996 | 23, 15 | 1 | ||
| TOLEDO SEAT | 1991-1996 | 15 | 1 | ABF | |
| Corrado | 1989-1995 | 15 | 1 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf Cabrio "USA","Mex"99>02 | 1998-2002 | 18 | 1 | ||
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 23, 15 | 1 | ||
| Golf Cabrio "USA","MEX"96>99 | 1995-1998 | 23 | 1 | ||
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 23, 15 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Bracket is fitted on: GOLF CABRIO 1998-2001; GOLF VAR./VENTO 1996-1999; POLO CLASSIC/VARIANT 1996-1999; TOLEDO SEAT MOD.97>99 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; Golf 1996-1997; Polo Classic 96 1995-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Passat 1994-1997; Derby (MEX) 1994-1996; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Ibiza/Cordoba (SEAT) 1992-1996; TOLEDO SEAT 1991-1996; Corrado 1989-1995; Golf Cabrio "USA","Mex"99>02 1998-2002; Golf/Jetta "USA","Mex"97>99 1996-1998; Golf Cabrio "USA","MEX"96>99 1995-1998; Golf/Jetta "USA","MEX"93>96 1992-1996.
