Target · Diagram
Find this reference above

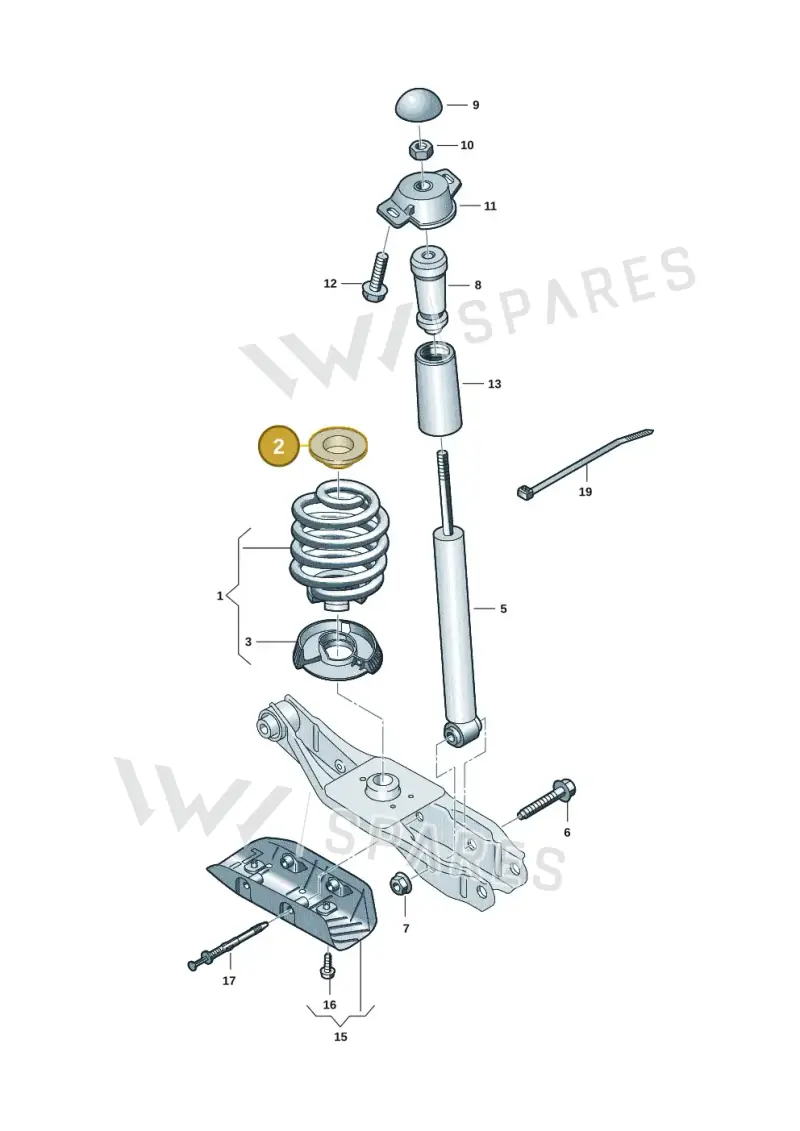

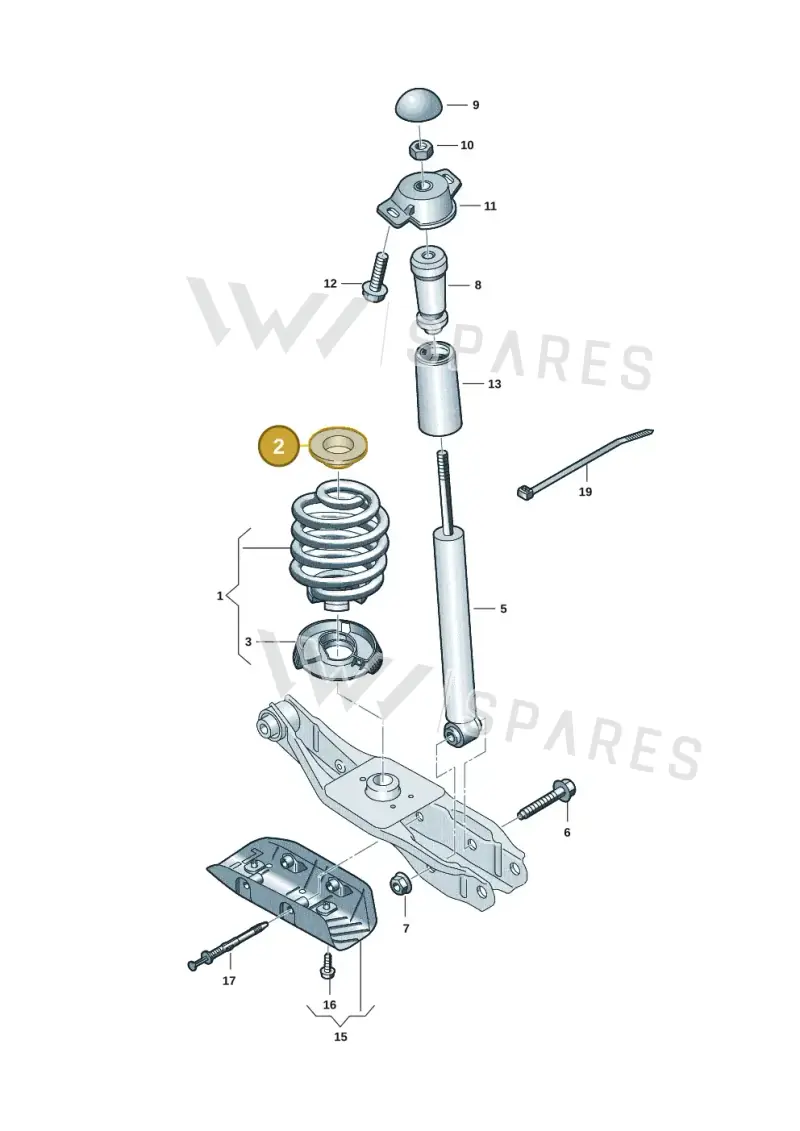

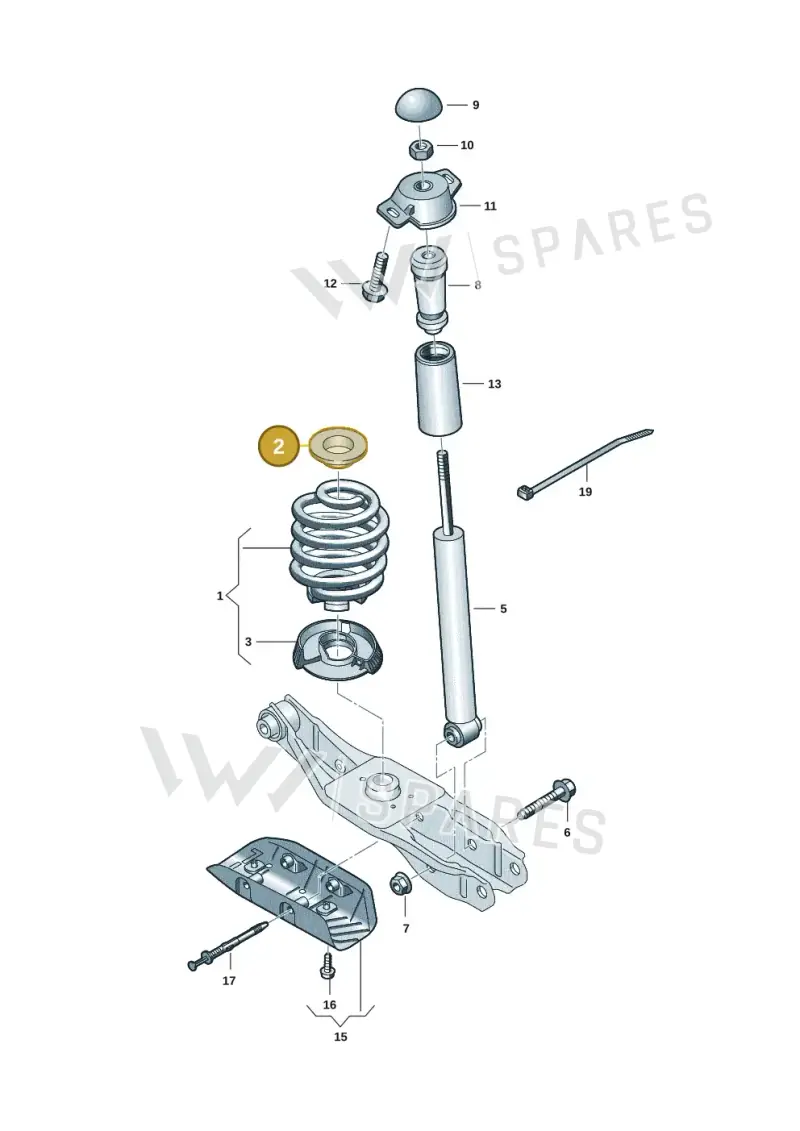

Number 2 marks the part’s position in this exploded view (Volkswagen ID.7 Limousine Pro (2023-)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Audi Rear Coil Spring Insulator, part number 1EA512149. This component is designed to be positioned above the coil spring in the rear suspension assembly, providing crucial isolation between the spring and other chassis components. Its primary function is to reduce noise, absorb vibrations, and prevent metal-on-metal contact, thereby enhancing ride comfort and extending component life. Weighing approximately 0.12 kg, it measures about 117mm in diameter. Using a genuine OEM insulator ensures the correct material composition and precise dimensions for optimal cushioning and durability within the suspension system.
Catalogue entry: UNDERLAY upper ×2.
Fitted with: 1EA512297 UNDERLAY, N90974701 BOLT, WHT003479 expanding nut, 80A512182 Retaining pin.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87088035
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 11.7 × 11.7 × 2.7 cm
- Shipping weight
- 0.12 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Length
- 12 mm
