1H0121140 Intermediate Piece
- 1H0121140This pageNot stocked
Mar 2019 - 12E121140ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

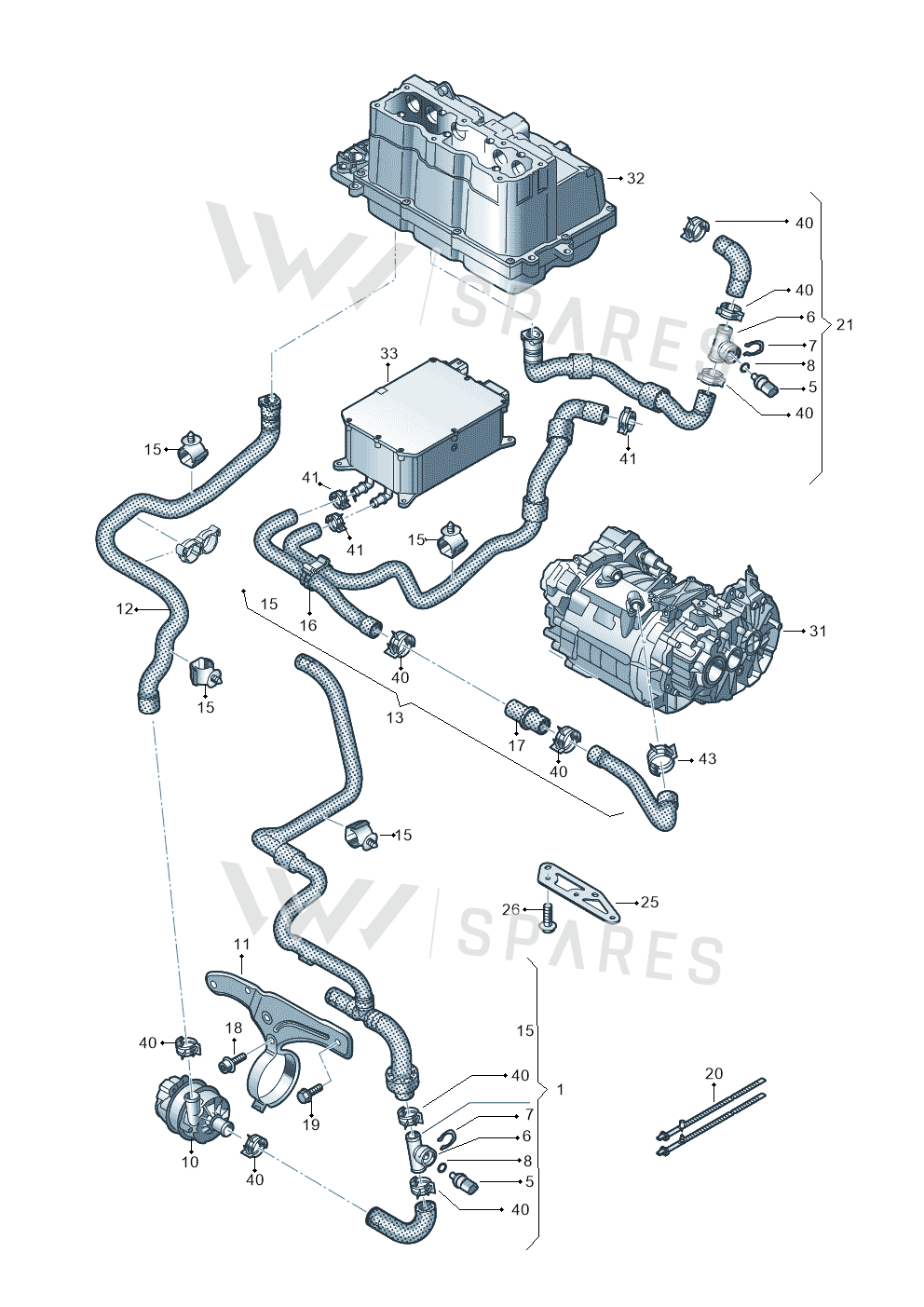

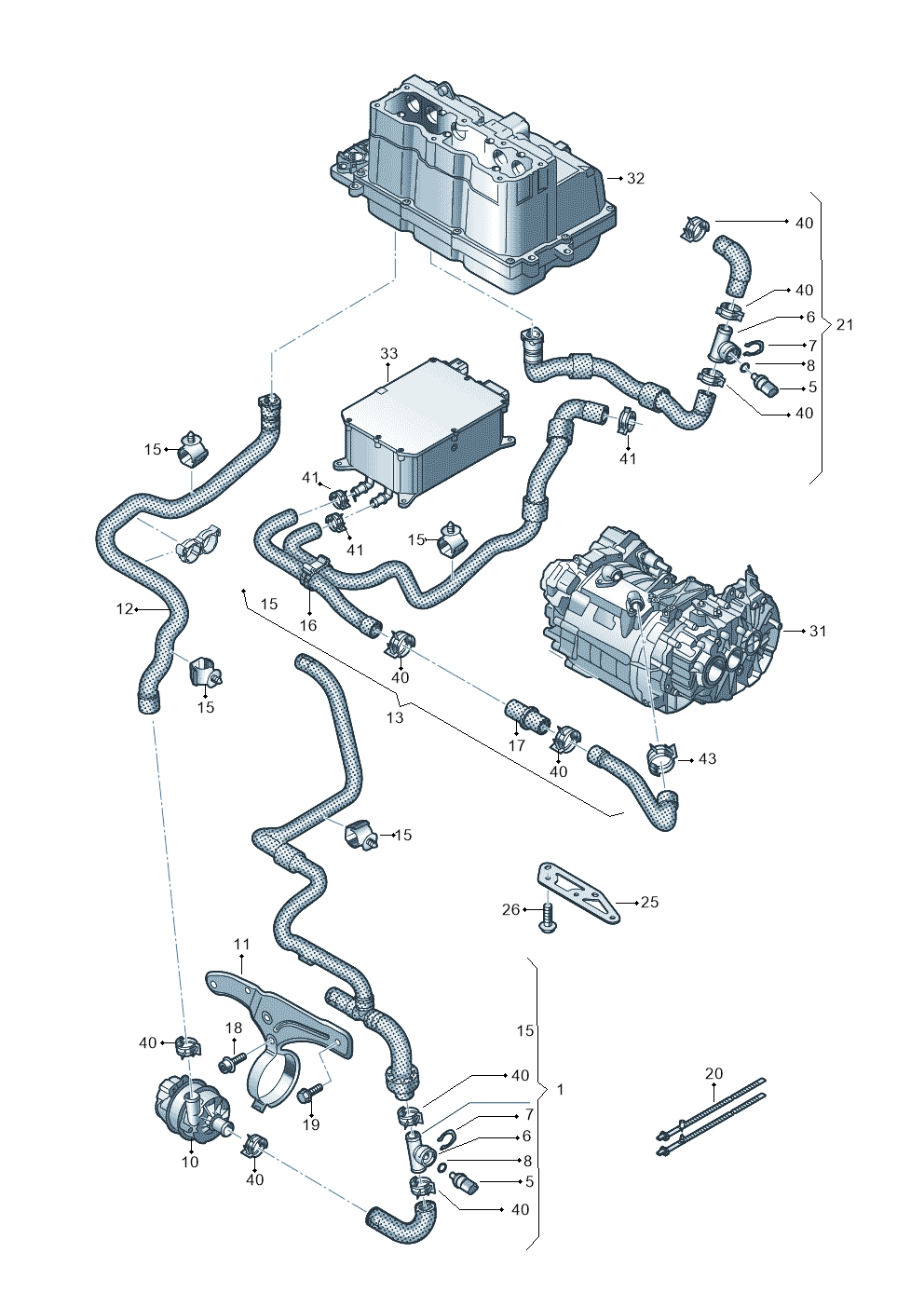

22 vehiclesIntermediate Piece — locate Intermediate Piece in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Hose 5QE122109H
- 5Sender 06A919501A
- 6Tpiece 12E121087
- 7Spring 032121142
- 8Seal Ring N90316801
- 10Water Pump 04L965567
- 11Bracket 5QE121093H
- 12Hose 5QE122058H
- 13Hose 5QE121049AE
- 13Hose 5QE121049AF
- 13Hose 5QE121049N
- 13Hose 5QE121049T
- 15Bracket 3C0121093D
- 16Clip 8R0121093
- 18Bolt N10653201
- 19Screw N91026802
- 20Binder 4A0820199
- 21Hose 5QE122058G
- 25Bracket 5QE121093F
- 26Bolt N10451405
- 40Clamp N90687001
- 41Clamp N90686902
- 43Clamp N90687101
Vehicle fitment table22
Europe (20)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| e-Golf | 2014-2021 | 17 | 2 | ||
| Audi A8L qu. 3.0 TDI | 2013-2018 | 6 | 2 | ||
| Audi A8L qu. 3.0 TDI | 2009-2014 | 6 | 2 | TV7 | |
| transp. caravelle | 2008-2009 | 27, 32 | 1 | ||
| transp. dropside | 2008-2009 | 27, 32 | 1 | T9 | |
| TRANSPORTER GESCHL. 08 | 2007- | 27, 32 | 1 | ||
| TRANSPORTER OFFEN 08 | 2007- | 27, 32 | 1 | T9 | |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 27, 32 | 1 | T9 | |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 27, 32 | 1 | T9 | |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 27, 32 | 1 | T9 | |
| TRANSPORTER 06 | 2005-2006 | 27, 32 | 1 | T9 | |
| TRANSPORTER | 2003-2005 | 27, 32 | 1 | MY | |
| GOLF VAR./VENTO | 1996-1999 | 21 | 2 | ||
| Golf | 1996-1997 | 21 | 2 | ||
| Golf 96 | 1995-1996 | 21 | 2 | ||
| Golf Var./Vento 96 | 1995-1996 | 21 | 2 | ||
| Golf/Ecomatic 95 | 1994-1995 | 21 | 2 | ||
| Golf Var./Vento 95 | 1994-1995 | 21 | 2 | ||
| Jetta GLX 94 | 1993-1994 | 21 | 2 | ||
| GOLF/Ecomatic | 1991-1994 | 21 | 2 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 21 | 2 | ||
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 21 |
Diagrams & fitment data powered by oemdiagrams.com
Intermediate Piece is fitted on: e-Golf 2014-2021; Audi A8L qu. 3.0 TDI 2013-2018; Audi A8L qu. 3.0 TDI 2009-2014; transp. caravelle 2008-2009; transp. dropside 2008-2009; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER 2003-2005; GOLF VAR./VENTO 1996-1999; Golf 1996-1997; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Jetta GLX 94 1993-1994; GOLF/Ecomatic 1991-1994; Golf/Jetta "USA","Mex"97>99 1996-1998; Golf/Jetta "USA","MEX"93>96 1992-1996.
