1H0201963C Heat Insulation
- 1H0201963BNot stocked
Mar 1997 - 1H0201963CThis pageDiscontinued
Feb 2018
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

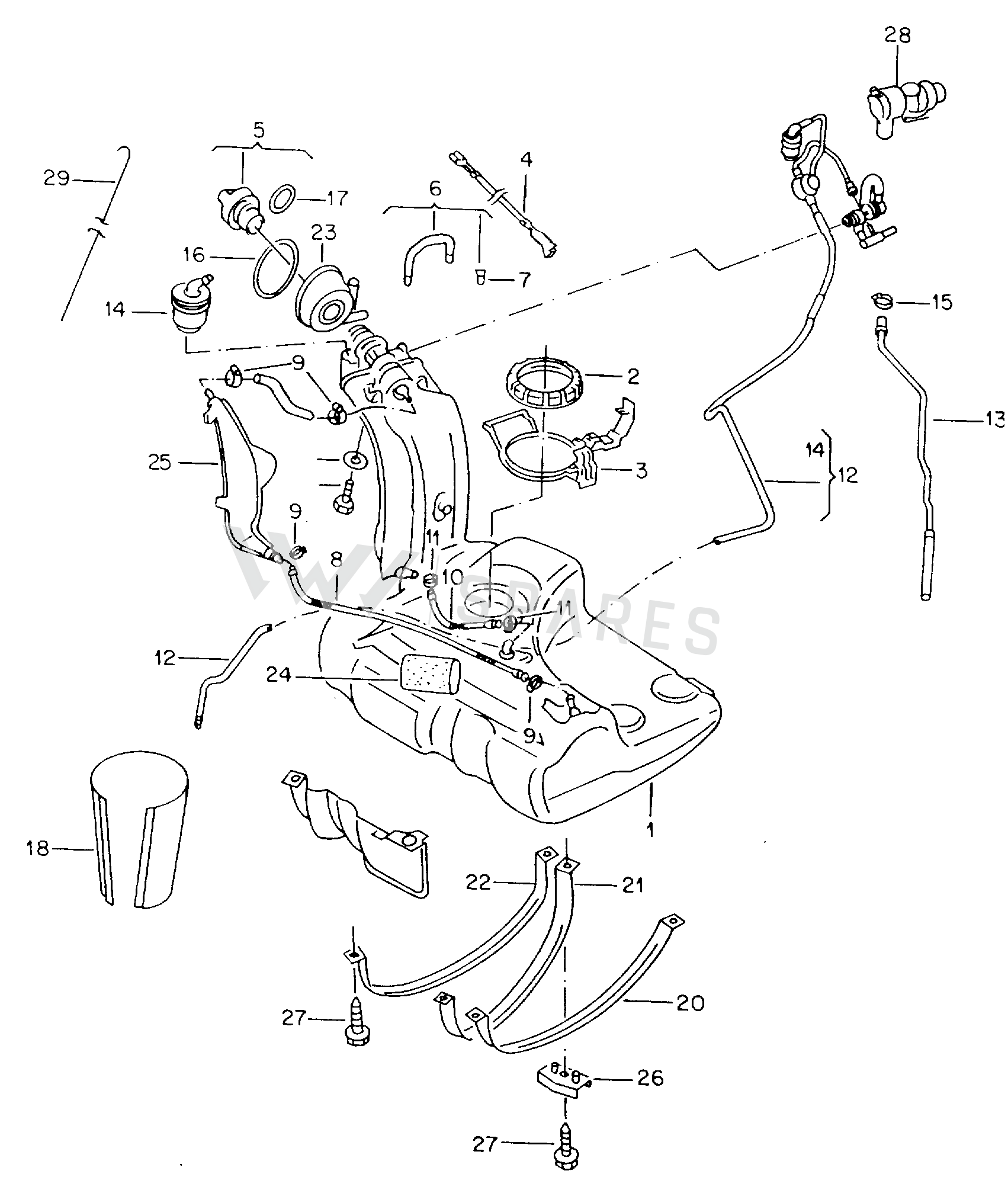

16 vehiclesHeat Insulation — locate Heat Insulation in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Container 1EM201075D
- 2Part 8N0201375A
- 3Ret Ring 1H0201376A
- 4Line 1H0201142D
- 5Part 1J0201550F
- 6Line 1EM201993A
- 7Grommet 701201180
- 8Line 1H0201995A
- 9Clip N10081101
- 10Line 1H0201993A
- 11Clamp N10258201
- 12Pipe 1EM201931A
- 13Pipe 1EM201160
- 14Valve 1J0201752
- 15Clamp N90411901
- 16Ring 1H0201255
- 17Seal Ring 3C0201557
- 20StrapLeft1H0201653F
- 21StrapRight1EM201654
- 22StrapRight1H0201654C
- 25Container 1EM201303
- 27Bolt N0197002
- 28Clip 1EM201401
- 29Line 1EM201184
- 30Washer N01166620
- 31Screw N0138942
Vehicle fitment table21
Europe (12)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| GOLF CABRIO | 2002-2002 | 18 | 1 | M60,T3U,1E1 | |
| GOLF CABRIO | 1998-2001 | 14 | 1 | MR3,MV9,M11,M2K,M59,M6N,M60,M66,M67,M8M,M9Z,M91,1E0,1E1 | |
| GOLF VAR./VENTO | 1996-1999 | 14 | 1 | ||
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 29 | 1 | AFT,AKS,ABF | |
| Golf | 1996-1997 | 14 | 1 | ||
| Golf 96 | 1995-1996 | 14 | 1 | ||
| Golf Var./Vento 96 | 1995-1996 | 14 | 1 | ||
| Golf Cabrio | 1994-1996 | 14 | 1 | ||
| Golf/Ecomatic 95 | 1994-1995 | 14 | 1 | ||
| Golf Var./Vento 95 | 1994-1995 | 14 | 1 | ||
| Golf/Var. syncro | 1993-1997 | 14 | 1 | ||
| TOLEDO SEAT | 1991-1996 | 29 | 1 | AGG; |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf Cabrio "USA","Mex"99>02 | 1998-2002 | 14, 18 | 1 | ||
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 14 | 1 | ADC,AAA; | |
| Golf Cabrio "USA","MEX"96>99 | 1995-1998 | 14 | 1 | ||
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 14 | 1 |
Listed without a diagram position (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| CORDOBA/VARIO | 1999-2002 | 1 | AEH,AKL,APF | ||
| IBIZA | 1999-2002 | 1 | AEH,AKL,APF, | ||
| IBIZA/CORDOBA/VARIO | 1996-1999 | 1 | AF | ||
| Ibiza/Cordoba (SEAT) | 1992-1996 | 1 | |||
| 6K0 platform | 1 | AKL |
Diagrams & fitment data powered by oemdiagrams.com
Heat Insulation is fitted on: GOLF CABRIO 2002-2002; GOLF CABRIO 1998-2001; GOLF VAR./VENTO 1996-1999; TOLEDO SEAT MOD.97>99 1996-1999; Golf 1996-1997; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Golf/Var. syncro 1993-1997; TOLEDO SEAT 1991-1996; Golf Cabrio "USA","Mex"99>02 1998-2002; Golf/Jetta "USA","Mex"97>99 1996-1998; Golf Cabrio "USA","MEX"96>99 1995-1998; Golf/Jetta "USA","MEX"93>96 1992-1996.
