1H0611346 End Cap
- 1H0611346This pageNot stocked
Dec 1996 - 6N1611349ANot stocked
Nov 1997 - 6N1611349BSuperseded
Oct 2016 - 6C0611349Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

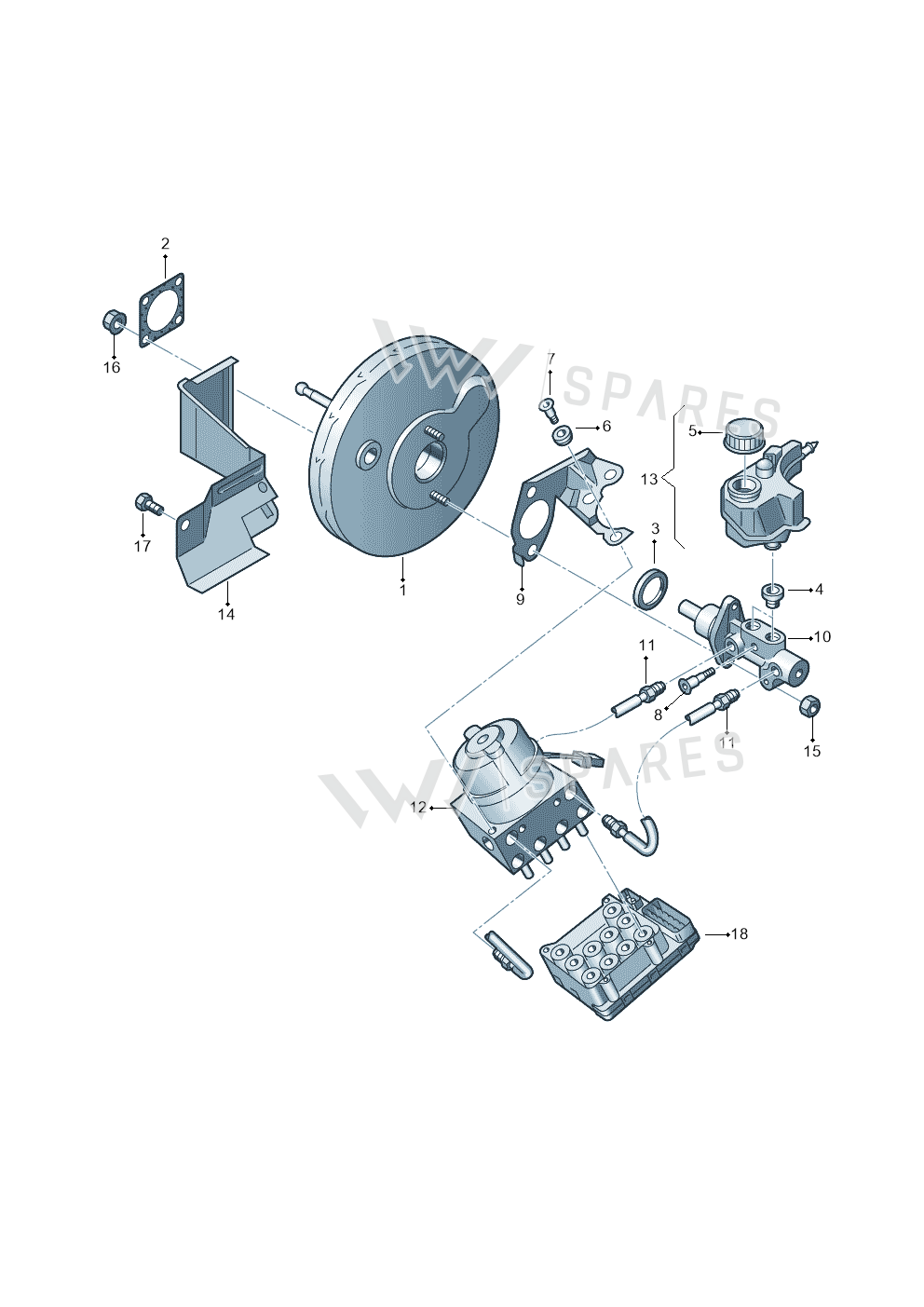

13 vehiclesEnd Cap — locate End Cap in the official exploded view and explore the surrounding assembly.
Parts in this assembly19
- 1Brake Serv 1H1612107D
- 2Seal 1HM612161
- 2Seal 1H0612161
- 3Gasket 1H1611243
- 4Bungs 357611817
- 5Cap For Expansion Tank 6N1611349B
- 6Insulation 1H1614147
- 7Bolt 1H0614159
- 8Bolt 1H1614159
- 9Plate 1H0614191
- 10Cylinder 3A1698019
- 10Cylinder 1H1698019B
- 12Control 1H1698217D
- 12Control 1H1698117D
- 13Reservoir 1H1698301A
- 14Heat Sh 1H1614321C
- 15Ut Hexagon Nut Self-locking Hexagon Nut N90074404
- 16Collar Nut N90226404
- 17Bolt N90483201
Vehicle fitment table13
Europe (10)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| GOLF VAR./VENTO | 1996-1999 | 5 | 1 |
| Golf | 1996-1997 | 5 | 1 |
| Golf 96 | 1995-1996 | 5 | 1 |
| Golf Var./Vento 96 | 1995-1996 | 5 | 1 |
| Passat | 1994-1997 | 5 | 1 |
| Golf Cabrio | 1994-1996 | 5 | 1 |
| Passat Var.syncro | 1994-1996 | 5 | 1 |
| Golf/Ecomatic 95 | 1994-1995 | 5 | 1 |
| Golf Var./Vento 95 | 1994-1995 | 5 | 1 |
| Golf/Var. syncro | 1993-1997 | 5 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| T-Roc | 2018- | 6 | 1 |
| bora | 2018- | 6 | 1 |
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 5 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
End Cap is fitted on: GOLF VAR./VENTO 1996-1999; Golf 1996-1997; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Passat 1994-1997; Golf Cabrio 1994-1996; Passat Var.syncro 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Golf/Var. syncro 1993-1997; T-Roc 2018-; bora 2018-; Golf/Jetta "USA","MEX"93>96 1992-1996.
