1H0698545A 1 Set Fastening Parts For Brake Shoes
- 1H0698545Not stocked
May 1997 - 1H0698545AThis pageNot stocked
Jun 2014
- Current number6R0698545ACurrent number
- Current number6R0698545BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

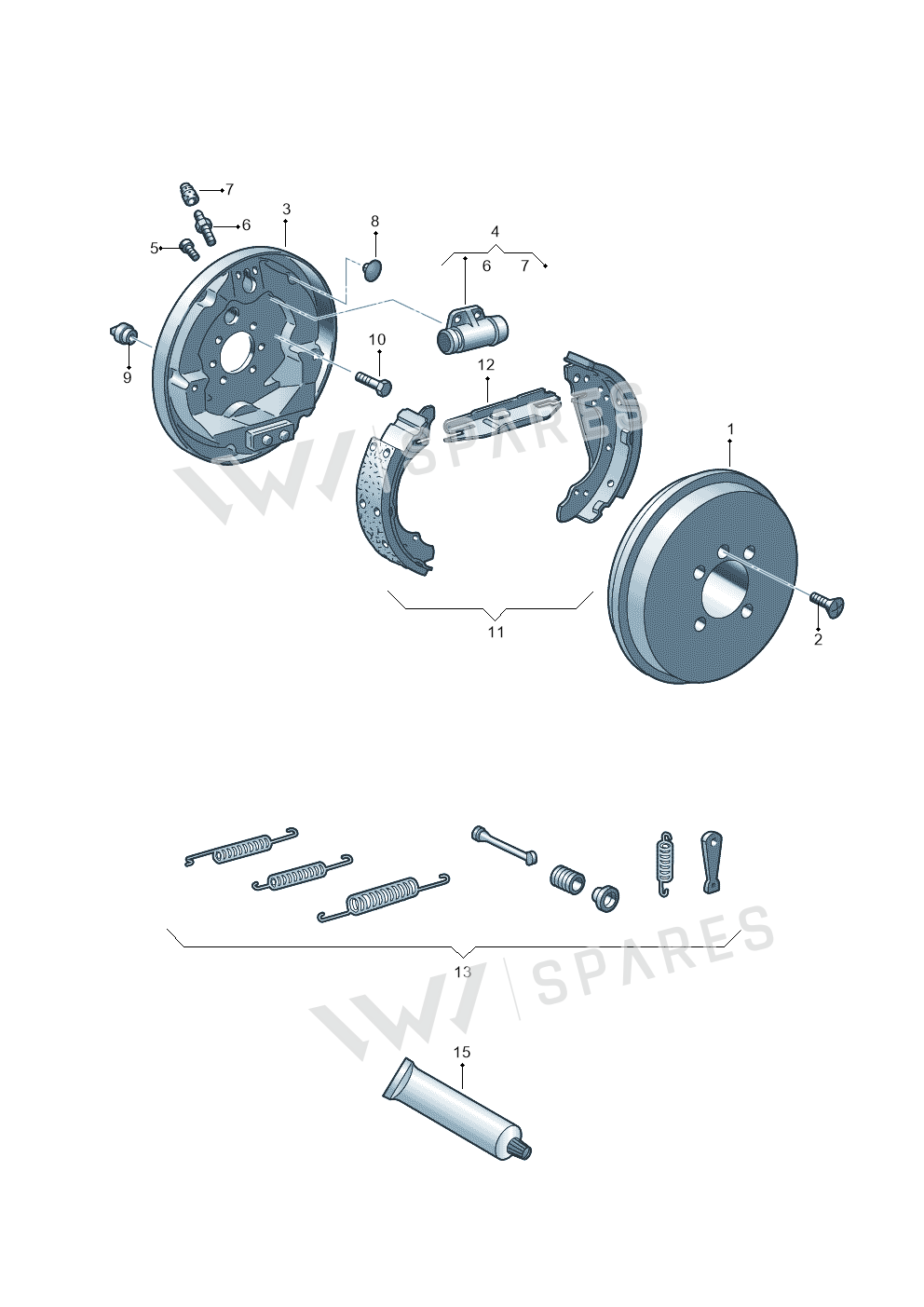

35 vehicles1 Set Fastening Parts For Brake Shoes — locate 1 Set Fastening Parts For Brake Shoes in the official exploded view and explore the surrounding assembly.
Parts in this assembly19
- 1Brake Drum 6Q0609617
- 2Bolt N10648301
- 3Back PlateRight6Q0609426E
- 3Back PlateLeft6Q0609425E
- 4Brake Cyli 6Q0611053C
- 4Brake Cyli 6QE611053
- 5Screw N90818301
- 5Screw N90818302
- 6Valve 3A0611475
- 7Part 211611483
- 8Glidepiece 6N0609589
- 9Bungs 171609163
- 10Bolt N90930902
- 11Brake Shoe 6R0698525AX
- 11Part JZW698520B
- 11Part 1H0698520X
- 12Push BarRight6Q0609820
- 12Push BarLeft6Q0609819
- 15Paste G000650
Vehicle fitment table60
Europe (28)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| fabia | 2014-2022 | 13 | 1 | |
| Citigo | 2011-2019 | 13 | 1 | |
| Polo | 2011-2014 | 32 | 1 | |
| Fabia Scout | 2010-2014 | 32 | 1 | 1KM |
| Fabia Ambiente | 2009-2013 | 32 | 1 | 1KM |
| FABIA/COMBI NF 07> | 2006- | 14 | 1 | 1KM |
| FOX M.05> | 2005- | 13 | 1 | F6G |
| IBIZA 06> | 2005- | 32 | 1 | |
| CORDOBA 06> | 2005- | 32 | 1 | |
| FABIA/COMBI 05> | 2004- | 32 | 1 | 1KM |
| AROSA | 2003-2004 | 32 | 1 | |
| CORDOBA/SE241 | 2002-2005 | 32 | 1 | |
| IBIZA | 2001-2005 | 32 | 1 | |
| AUDI A2 | 2000-2005 | 32 | 1 | 1KB |
| FABIA/COMBI | 1999-2004 | 32 | 1 | 1KM |
| CORDOBA/VARIO | 1999-2002 | 32 | 1 | |
| IBIZA | 1999-2002 | 32 | 1 | |
| AROSA | 1997-2003 | 32 | 1 | |
| POLO CLASSIC/VARIANT | 1996-1999 | 29 | 1 | |
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 29 | 1 | |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 29, 24 | 1 | |
| Polo Classic 96 | 1995-1996 | 29 | 1 | |
| Ibiza/Cordoba (SEAT) | 1992-1996 | 29 | 1 | |
| TOLEDO SEAT | 1991-1996 | 29 | 1 | |
| Audi 80/90 | 1987-1989 | 27 | 1 | |
| AUDI COUPE/2 88 | 1987-1987 | 27 | 1 | |
| Audi 4000 S | 1984-1987 | 27 | 1 | |
| Audi Coupe | 1981-1987 | 27 | 1 |
Other markets (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| polo sedan | 2011-2014 | 32 | 1 | 1KM |
| Spacefox | 2010-2014 | 13 | 1 | |
| POLO HATCH "BR."07> | 2006- | 32 | 1 | |
| POLO SEDAN "BR."07> | 2006- | 32 | 1 | 1KM |
| POLO CLASSIC "ZA"05> | 2005- | 13 | 1 | |
| POLO-BRASIL | 2002-2006 | 32 | 1 | 1KB |
| POLO LIM.(SEDAN) "BR" | 2002-2006 | 32 | 1 | 1KB |
Listed without a diagram position (25)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| GOLF VAR./VENTO | 1996-1999 | 1 | ||
| Golf | 1996-1997 | 1 | ||
| Golf 96 | 1995-1996 | 1 | ||
| Golf Var./Vento 96 | 1995-1996 | 1 | ||
| Golf Cabrio | 1994-1996 | 1 | ||
| Golf/Ecomatic 95 | 1994-1995 | 1 | ||
| Golf Var./Vento 95 | 1994-1995 | 1 | ||
| Jetta GLX 94 | 1993-1994 | 1 | ||
| GOLF/Ecomatic | 1991-1994 | 1 | ||
| Passat | 1989-1991 | 1 | ||
| Jetta | 1989-1991 | 1 | ||
| Audi 80/90 | 1989-1991 | 1 | ||
| Audi 4000 | 1981-1984 | 1 | ||
| Audi 5000 | 1981-1982 | 1 | ||
| PASSAT,-VARIANT/2 81 | 1980-1981 | 1 | ||
| Audi 4000 | 1979-1981 | 1 | ||
| Audi 5000/Wagon | 1979-1981 | 1 | ||
| Dasher | 1977-1980 | 1 | ||
| Audi 5000 | 1977-1979 | 1 | ||
| SANTANA 3000 "CN"04> | 2004- | 1 | 1AC | |
| JETTA (FAW) 91> | 1991- | 1 | ||
| Quantum | 1986-1988 | 1 | ||
| Quantum 86 | 1985-1986 | 1 | ||
| Quantum 85 | 1984-1985 | 1 | ||
| Quantum | 1981-1984 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
1 Set Fastening Parts For Brake Shoes is fitted on: fabia 2014-2022; Citigo 2011-2019; Polo 2011-2014; Fabia Scout 2010-2014; Fabia Ambiente 2009-2013; FABIA/COMBI NF 07> 2006-; FOX M.05> 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; FABIA/COMBI 05> 2004-; AROSA 2003-2004; CORDOBA/SE241 2002-2005; IBIZA 2001-2005; AUDI A2 2000-2005; FABIA/COMBI 1999-2004; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; AROSA 1997-2003; POLO CLASSIC/VARIANT 1996-1999; TOLEDO SEAT MOD.97>99 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; Polo Classic 96 1995-1996; Ibiza/Cordoba (SEAT) 1992-1996; TOLEDO SEAT 1991-1996; Audi 80/90 1987-1989; AUDI COUPE/2 88 1987-1987; Audi 4000 S 1984-1987; Audi Coupe 1981-1987; polo sedan 2011-2014; Spacefox 2010-2014; POLO HATCH "BR."07> 2006-; POLO SEDAN "BR."07> 2006-; POLO CLASSIC "ZA"05> 2005-; POLO-BRASIL 2002-2006; POLO LIM.(SEDAN) "BR" 2002-2006.
