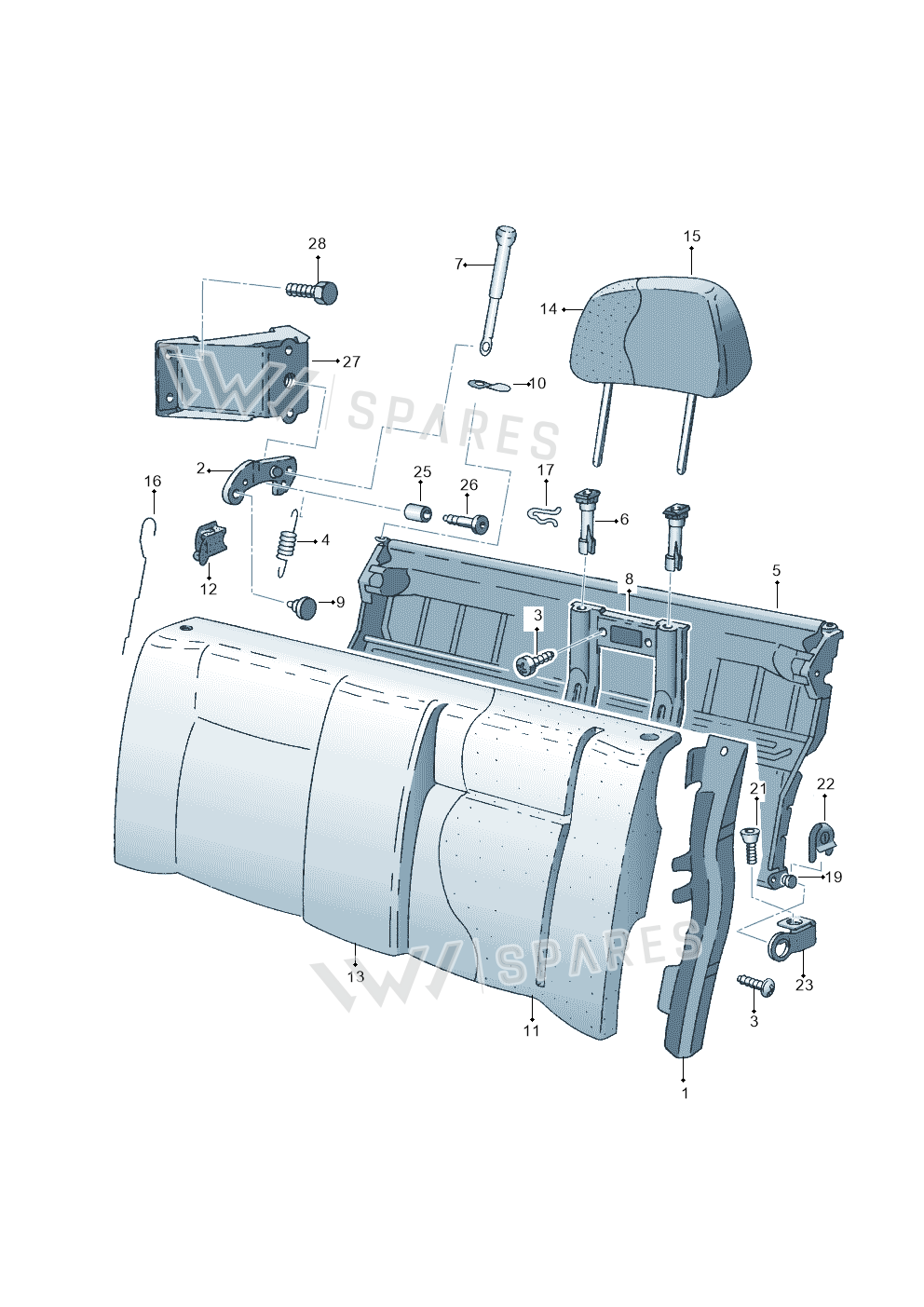

Locating Bolt exploded parts diagram — CADDY-KOMBI/KASTENW. 06> · 2005-, position 26
Exploded view
CADDY-KOMBI/KASTENW. 06> · 2005- · position 26Full diagram ↓
1H0886735A

1H0886735A Locating Bolt

£4.01
£3.31 excl. VAT
Supersession roadoldest to newest
  1. 1H0885167Not stocked
    Jul 1996
  2. 1H0886735Not stocked
    Apr 1997
  3. 1H0886735AThis pageDiscontinued
    Mar 2019
Availability: Discontinued — no longer orderable

Special order item. Delivery time may vary.

About This Part

Discontinued by the manufacturer

This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

23 vehicles

Locating Bolt — locate Locating Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly25
Vehicle fitment table23

Europe (20)

VehicleYearsPos.Qty
CADDY-KOMBI/KASTENW. 06>2005-262
CORDOBA/VARIO1999-2002122
IBIZA1999-20026, 122
caddy combi./del.van1998-2005262
GOLF VAR./VENTO1996-199934, 402
TOLEDO SEAT MOD.97>991996-1999212
IBIZA/CORDOBA/VARIO1996-19996, 122
Golf1996-199734, 402
CADDY-KOMBI/KASTEN1995-200326, 252
INCA (SEAT-VAN)1995-200326, 252
Polo Classic 961995-199612
Golf 961995-199634, 402
Golf Var./Vento 961995-199634, 402
Golf/Ecomatic 951994-199534, 402
Golf Var./Vento 951994-199534, 402
Golf/Var. syncro1993-199734, 402
Jetta GLX 941993-199434, 402
Ibiza/Cordoba (SEAT)1992-19966, 12
TOLEDO SEAT1991-1996212
GOLF/Ecomatic1991-199434, 402

Other markets (2)

VehicleYearsPos.Qty
POLO CLASS./PL. "ZA"1996-200312
Golf/Jetta "USA","Mex"97>991996-199818, 212

Platform / generic diagrams (1)

VehicleYearsPos.Qty
6K0 platform122

Diagrams & fitment data powered by oemdiagrams.com

Locating Bolt is fitted on: CADDY-KOMBI/KASTENW. 06> 2005-; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; caddy combi./del.van 1998-2005; GOLF VAR./VENTO 1996-1999; TOLEDO SEAT MOD.97>99 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; Golf 1996-1997; CADDY-KOMBI/KASTEN 1995-2003; INCA (SEAT-VAN) 1995-2003; Polo Classic 96 1995-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Golf/Var. syncro 1993-1997; Jetta GLX 94 1993-1994; Ibiza/Cordoba (SEAT) 1992-1996; TOLEDO SEAT 1991-1996; GOLF/Ecomatic 1991-1994; POLO CLASS./PL. "ZA" 1996-2003; Golf/Jetta "USA","Mex"97>99 1996-1998; 6K0 platform.
