1J0130295B 1 Set Fuel Pipes
- 1J0130295BThis pageNot stocked
Sep 2006 - 1J0130295ECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 224 g
- Shipping size (L × W × H)
- 35 × 14 × 9 cm
- Country of origin
- Germany
- Customs (HS) code
- 84099100

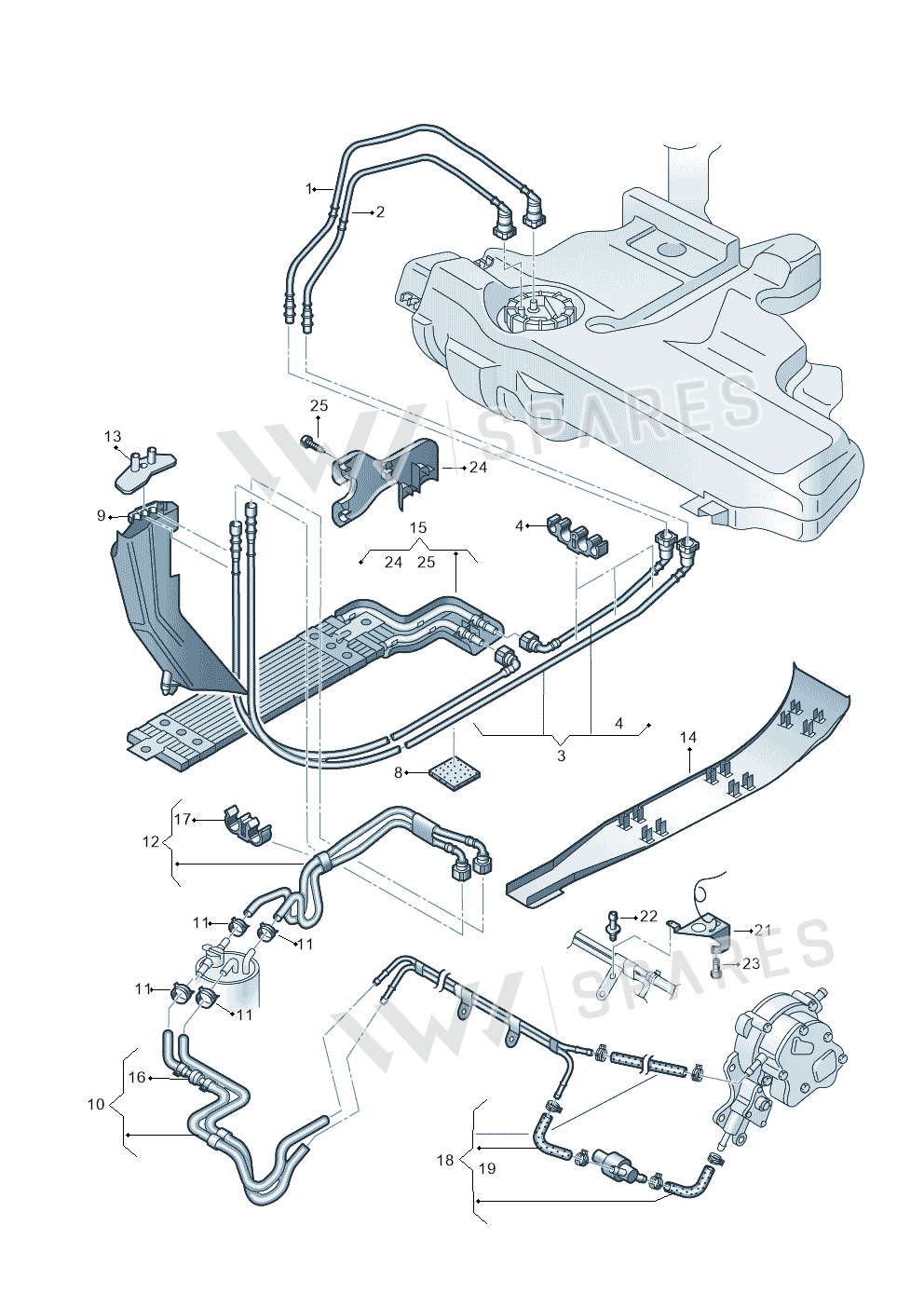

Parts diagram & fitment
10 vehicles1 Set Fuel Pipes — locate 1 Set Fuel Pipes in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Pipe 1J0201293H
- 2Pipe 1J0201294D
- 3Pipe 1J0200059Q
- 4Clip 1H0201449
- 8Sound Abs 1H9864733
- 9Heat Insul 1J0201961B
- 10Pipe 1J0130307T
- 10Pipe 1J0130307M
- 11Clamp N90686701
- 13Cover 1J0201970C
- 14Cover 1J0201488C
- 15Heat Dissi 1J0201894A
- 16Valve 165201542B
- 17Bracket 1J0130325
- 18Pipe 038130308E
- 19Sensor 038906081B
- 21Retaining 7M0103945B
- 22Ball Joint 038103164
- 23Bolt N90328504
- 24Cover 1J0201469A
- 24Cover 1J0201469B
- 25Bolt N90698606
Vehicle fitment table10
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| TOLEDO/LEON/LEON-4 | 2001-2006 | 12 | 1 | ||
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 12 | 1 | ||
| Jetta Wagon | 2001-2001 | 12 | 1 | ||
| AUDI A3/S3/QUATTRO | 2000-2003 | 12 | 1 | ||
| TOLEDO/LEON/LEON-4 | 1998-2001 | 12 | 1 | ||
| Golf | 1998-2000 | 12 | 1 | ||
| AUDI A3/S3/QUATTRO | 1996-2000 | 12 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf "BR.","USA"03>07 | 2002-2007 | 12 | 1 | G0E | |
| Golf BR/US | 2001-2002 | 12 | 1 | ||
| Golf BR/US | 1999-2001 | 12 | 1 | "PR." |
Diagrams & fitment data powered by oemdiagrams.com
1 Set Fuel Pipes is fitted on: TOLEDO/LEON/LEON-4 2001-2006; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 2001-2001; AUDI A3/S3/QUATTRO 2000-2003; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; AUDI A3/S3/QUATTRO 1996-2000; Golf "BR.","USA"03>07 2002-2007; Golf BR/US 2001-2002; Golf BR/US 1999-2001.
