Vane Pump exploded parts diagram — Jetta/Wagon · 2002-2006, position 1
Exploded view
Jetta/Wagon · 2002-2006 · position 1Full diagram ↓
1J0422154D

1J0422154D Vane Pump

£488.19
£403.46 excl. VAT
Supersession roadoldest to newest
  1. 1J0422154DThis pageNot stocked
    Aug 2014
  2. 1J0422152ADiscontinued
    Oct 2021
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

13 vehicles

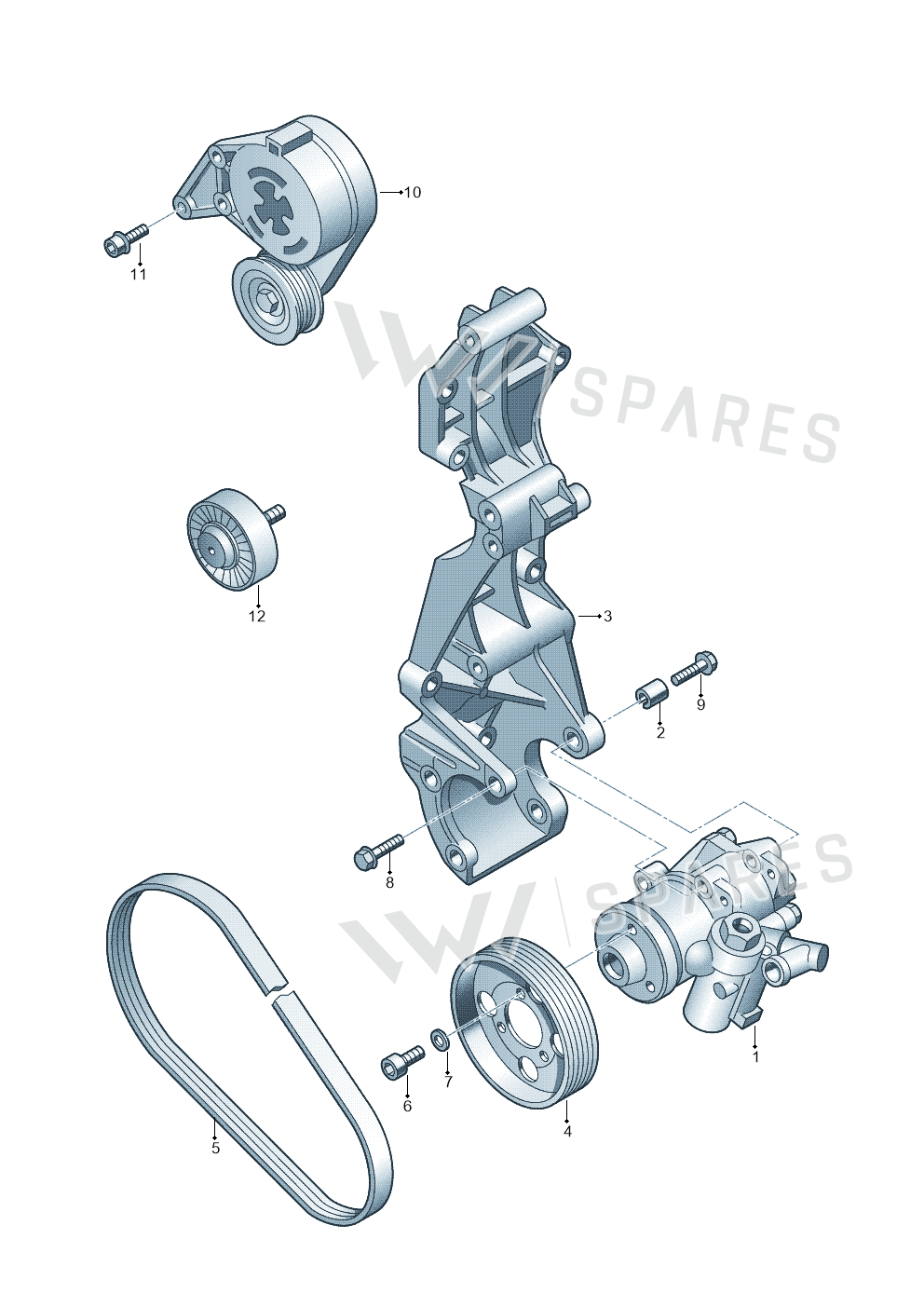

Vane Pump — locate Vane Pump in the official exploded view and explore the surrounding assembly.

Parts in this assembly12
Vehicle fitment table13

Europe (7)

VehicleYearsPos.QtyPR
Jetta/Wagon2002-2006119AA,9AB,9AK,T0D,T9T
New Beetle2001-20051
GOLF/VAR./4MOT. A4 022001-20021
Jetta Wagon 022001-20021
Jetta Wagon2001-20011
New Beetle1998-20011
Golf1998-20001

Other markets (6)

VehicleYearsPos.QtyPR
Golf 'R32' n. "USA"2004-20041
Golf "BR.","USA"03>072002-20071
Jetta USA2001-20051
Golf BR/US2001-20021
Golf BR/US1999-20011
Jetta "USA"99>011998-200111
