1K0121070L Coolant Pipe
- Discontinued Aug 2011
- Discontinued Aug 2011
- Current number
- 1K0121070LThis pageNot stocked
Oct 2016
- Discontinued Aug 20111K0121070BJDiscontinued
Aug 2011 - Discontinued Aug 20111K0121058BRDiscontinued
Aug 2011 - Current number1K0121096ATCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

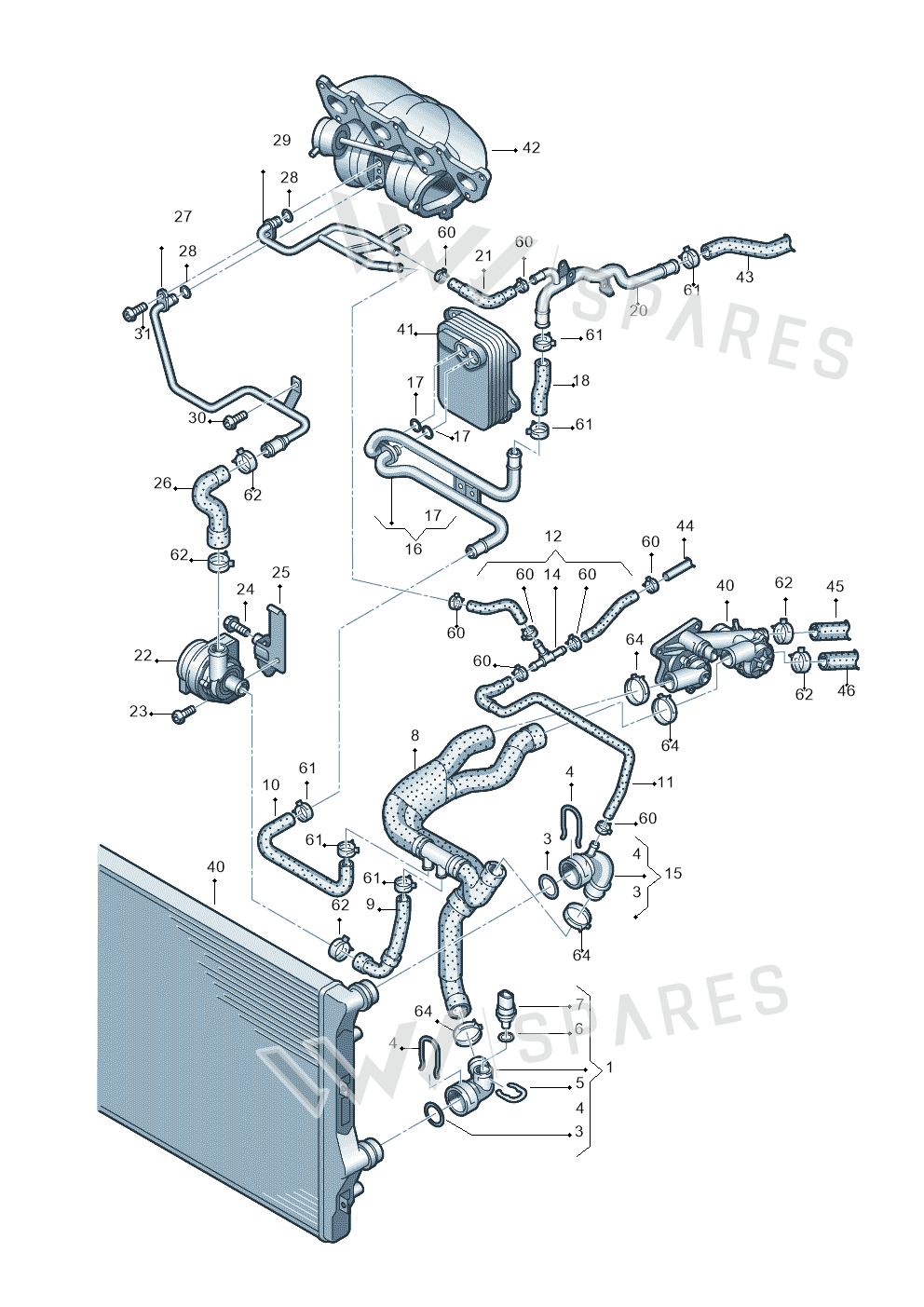

3 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Coupl Piece 1K0122291AD
- 3Seal Ring N90765301
- 4Spring 1J0121142
- 5Spring 032121142
- 6Seal Ring N90316801
- 7Sender 06A919501A
- 8Part 1K0121156CD
- 8Hose 1K0121156CP
- 8Hose 1K0121156CE
- 9Hose 1K0121109AN
- 9Hose 1K0121109AM
- 10Hose 1K0121096BB
- 11Hose 1K0121447DJ
- 11Hose 1K0121447DK
- 14Tpiece N91033401
- 15Coupl Piece 1K0122291BE
- 16Water Pipe 03C121050H
- 16Water Pipe 03C121050J
- 17Seal Ring 03C121437
- 18Hose 1K0121058BH
- 20Water Pipe 1K0121070BJ
- 21Hose 1K0121058BR
- 22Pump 1K0965561F
- 23Bolt N10124408
- 24Bolt N10128110
- 25Bracket 1K0121093AD
- 26Hose 1K0121063E
- 26Hose 1K0121063P
- 27Water Pipe 03C121497C
- 28Seal Ring N90067202
- 29Water Pipe 03C121469C
- 29Water Pipe 03C121469D
- 30Bolt N91073301
- 60Clamp N90686701
- 61Clamp N90686902
- 62Clamp N90687001
- 64Clamp N90687201
Vehicle fitment table3
Europe (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| GOLF VARIANT 07> | 2007- | 20 | 1 | G0K |
| TOURAN | 2005-2006 | 20 | 1 | G0K,TF0 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 20 | 1 | G0K,TF0 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: GOLF VARIANT 07> 2007-; TOURAN 2005-2006; Golf/Rabbit 2005-2007.
