1K0121096AM Coolant Hose
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

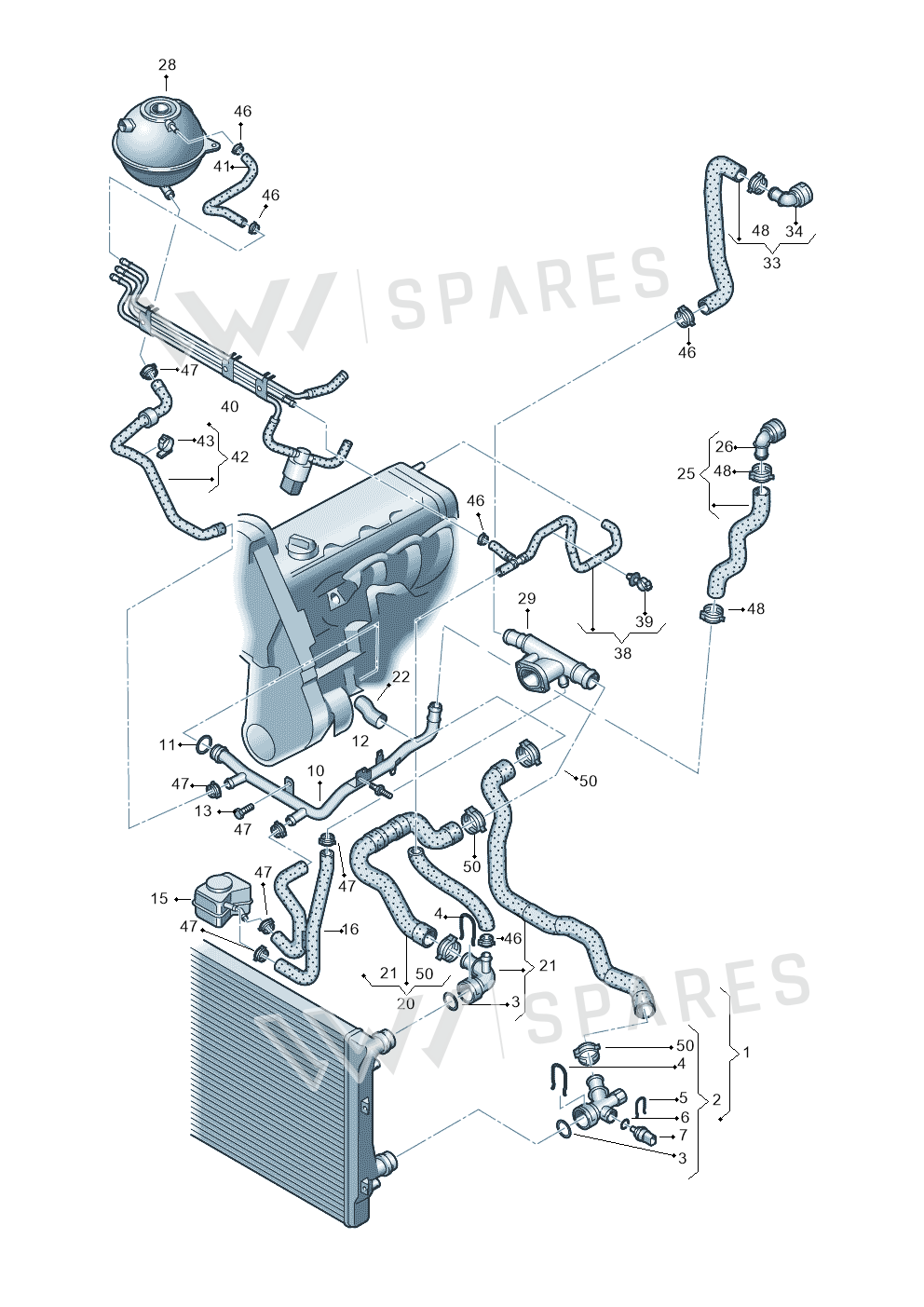

9 vehiclesCoolant Hose — locate Coolant Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Hose 1K0121086AN
- 2Coupl Piece 1K0122291AD
- 3Seal Ring N90765301
- 4Spring 1J0121142
- 5Spring 032121142
- 6Seal Ring N90316801
- 10Water Pipe 038121065CS
- 11Seal Ring 06B121687
- 12Bolt N90767702
- 13Bolt N0102279
- 16Hose 1K0121096AB
- 20Part 1K0122101AC
- 21Coupl Piece 6Q0122291E
- 25Hose 1K0122073T
- 26Coupl Piece 3B0122291B
- 28Tank 1K0121407A
- 33Hose 1K0122157CR
- 38Hose 1K0122447BS
- 39Clip N10436201
- 41Hose 1K0121447T
- 42Hose 1K0122109AR
- 43Bracket 1K0121093AQ
- 46Clamp N90686701
- 47Clamp N90686902
- 48Clamp N90687001
- 50Clamp N90687201
Vehicle fitment table9
Europe (6)
| Vehicle | Years | Pos. | Remark |
|---|---|---|---|
| octavia ambiente | 2008-2013 | 16 | |
| caddy panel van | 2008-2010 | 16 | |
| Touran 1.9 | 2008-2010 | 16 | 1 |
| CADDY | 2004- | 16 | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 16 | |
| GOLF | 2003-2005 | 16 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Remark |
|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 16 | 1 |
| CADDY-FAW "CN" 05> | 2005- | 16 | |
| Golf/Rabbit | 2005-2007 | 16 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Hose is fitted on: octavia ambiente 2008-2013; caddy panel van 2008-2010; Touran 1.9 2008-2010; CADDY 2004-; OCTAVIA/COMBI/4X4 04> 2004-; GOLF 2003-2005; Golf/Rabbit 08> 2007-; CADDY-FAW "CN" 05> 2005-; Golf/Rabbit 2005-2007.
