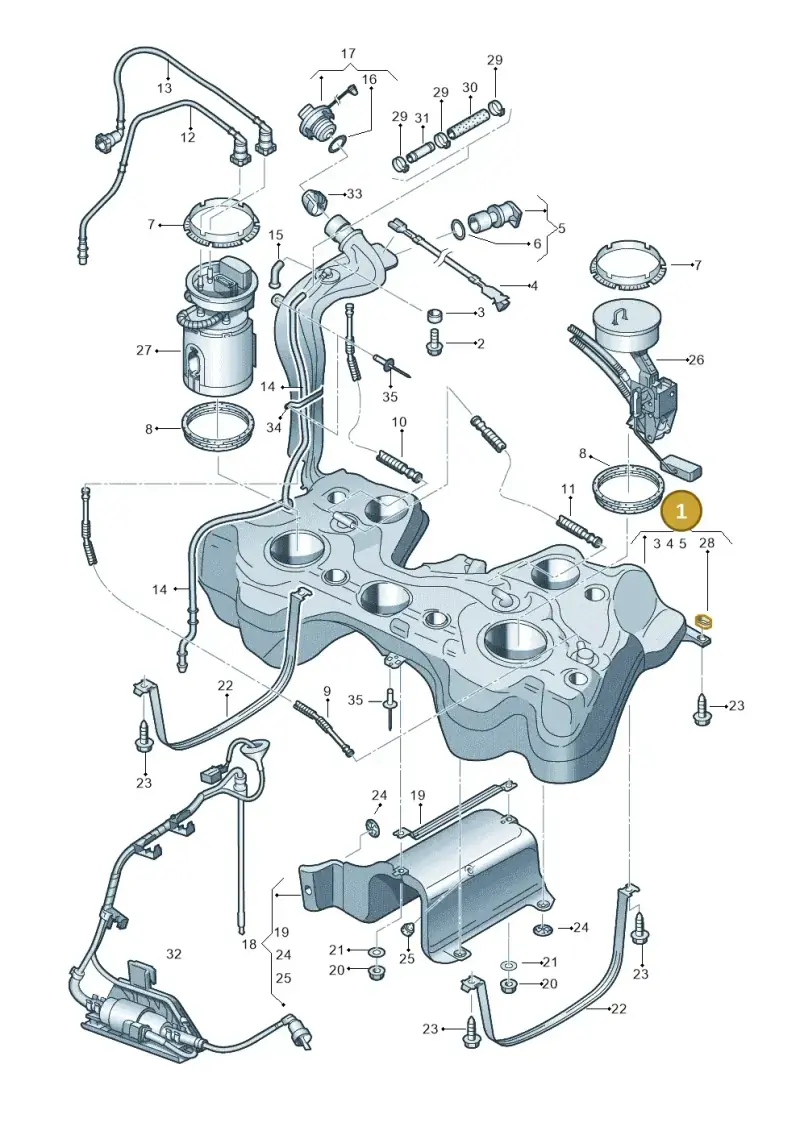

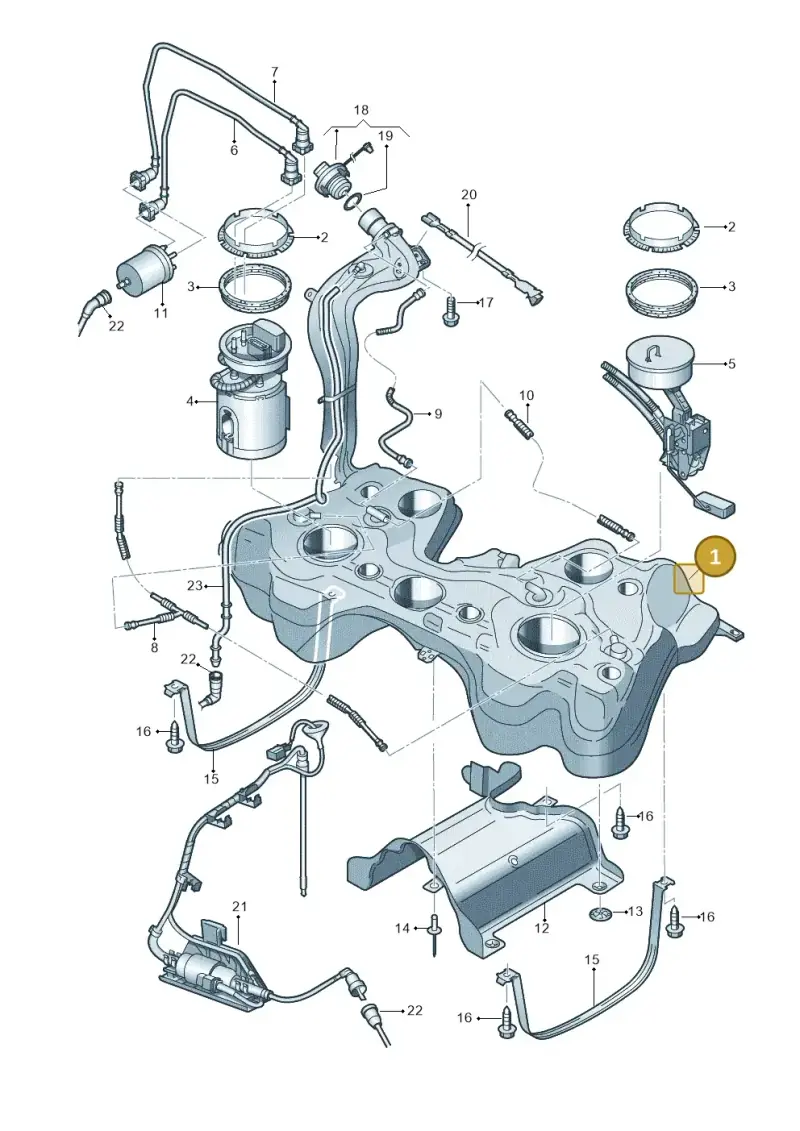

Number 1 marks the part’s position in this exploded view (Skoda Yeti (2013-2017)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Fuel Tank, part number 1K0201060HB. Fits SEAT Altea XL (2013). Shown as position 1 in the fuel, exhaust and cooling diagram 412201100.
Catalogue entry: FUEL TANK Petr. engine.
Fitted with: 1K0201060GB FUEL TANK, 1K0201060GE CONTAINER, 1K0201931D PIPE, N91130801 COLLAR NUT, N0195308 BOLT, N10199201 CLIP.
Technical details
- Category
- Fuel System
- Diagram sheet
- Škoda 412201100, position 1
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 1E1
- 2G7
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
7 vehiclesFuel Tank — locate 1K0201060HB Volkswagen Fuel Tank in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Container 1K0201060GE
- 2Bolt N10189407
- 3Bush 1J0201048C
- 4Line 1J0201142A
- 9Line 1K0201995E
- 10Line 1K0201993S
- 11Line 1K0201993AA
- 11Line 1K0201993R
- 14Part 1K0201931D
- 15End Piece 895201890
- 16Seal Ring 191201557
- 17Ap&cap With Retaining Strap For Fuel Tank Cap 5C0201550AB
- 17Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550AL
- 18Heat Sh 1K0201307F
- 20Collar Nut N91130801
- 22Strap 1K0201655B
- 23Bolt N0195308
- 24Washer N90335004
- 28Bush 1K0201048A
- 29Clip N10199201
- 31Sleeve 191201316A
- 32Metering 1K0201607G
- 33Ins Piece 1K0201112E
- 33Ins Piece 1K0201112D
- 35Pop Rivet N91003401
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Yeti | 2013-2017 | 1 | ||
| superb | 2013-2015 | 1 | 1 | 1E1 |
| Altea XL Reference | 2013-2013 | 1 | 1 | |
| Golf | 2011-2013 | 1 | ||
| Audi RS3 Sportback | 2011-2012 | 1 | 1 | |
| Altea XL Reference | 2010-2013 | 1 | 1 | 1E1 |
| GOLF | 2003-2005 | 1 | 1 | 1E1 |
Diagrams & fitment data powered by oemdiagrams.com
1K0201060HB Volkswagen Fuel Tank is fitted on: Yeti 2013-2017; superb 2013-2015; Altea XL Reference 2013-2013; Golf 2011-2013; Audi RS3 Sportback 2011-2012; Altea XL Reference 2010-2013; GOLF 2003-2005.
