1K0819805C Air Guide Channel
- 1K0819805CThis pageNot stocked
Jan 2004 - 1K0819805DNot stocked
Oct 2019 - 1KM819805Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

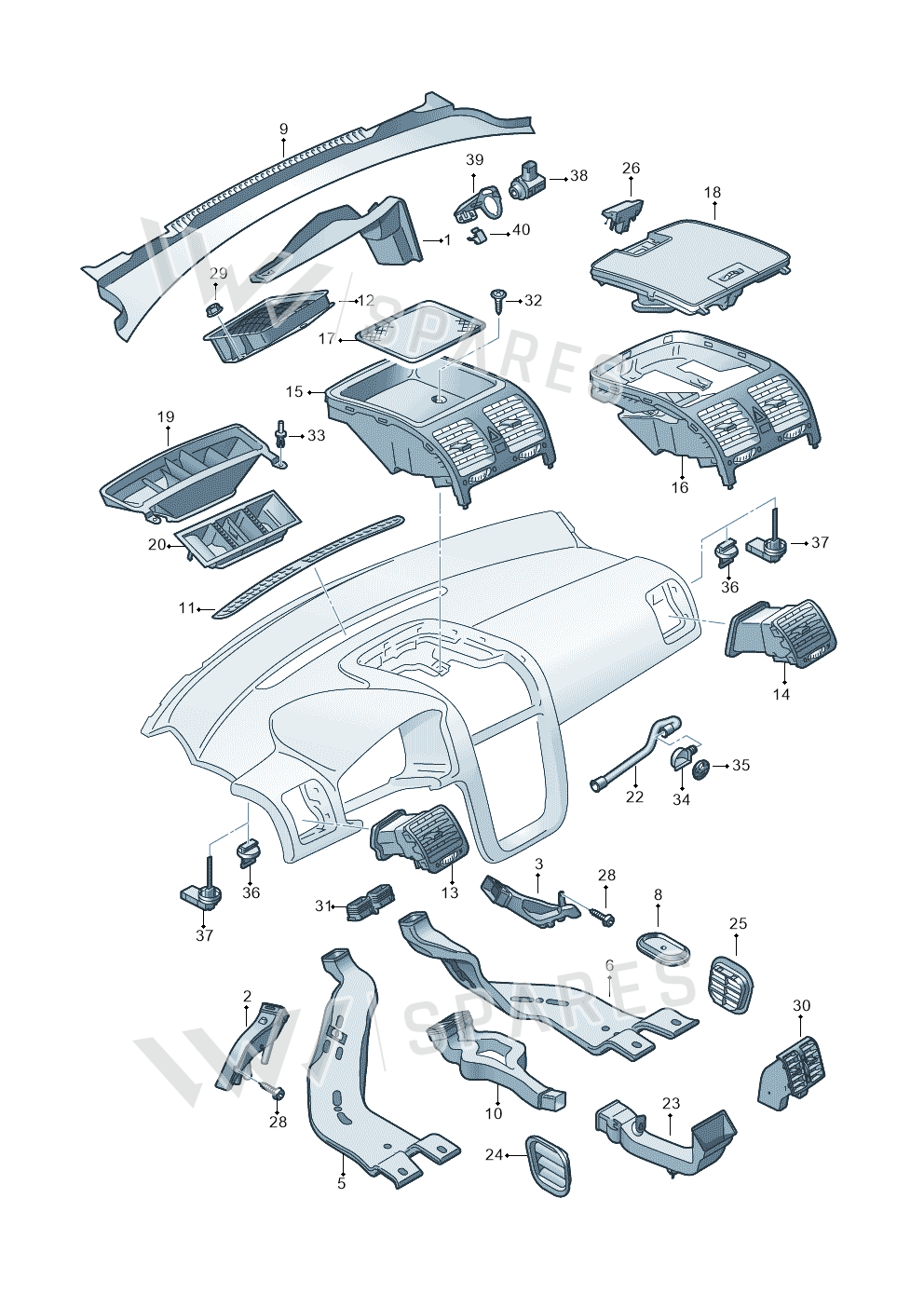

2 vehiclesAir Guide Channel — locate Air Guide Channel in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 1Cover 1K2815159A
- 1Cover 1K1815159A
- 2Vent 1K2819152B
- 2Vent 1K1819151B
- 3Vent 1K2819151A
- 3Vent 1K1819152B
- 5Air ChannelLeft1K0819805D
- 6Air ChannelRight1K0819806D
- 8Cover 1K0819425
- 9Deflector 1K2819415B
- 9Deflector 1K1819415B
- 10Air Guide 5M0819633
- 11Air Vent 1K1857473
- 12Cover 1K0941369A
- 12Manifold 1K0815479B
- 13Air VentLeft1K0819703B
- 14Air VentRight1K0819704D
- 15Air Vent 1K0819728J
- 18Cover 1K0819153C
- 19Intermed 1K2819063B
- 19Intermed 1K1819063B
- 20Intermed 1K2819241
- 20Intermed 1K1819241
- 22Hose 1K1816311
- 22Hose 1K2816311
- 24TrimLeft1K0819465B
- 25TrimRight1K0819466B
- 28Bolt N90698606
- 29Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 30Vent 1K0819203A
- 31Part 1K0819663
- 33Spring Rivet 4D0868307
- 34Union 1K0820731
- 35Valve 3B0816355
- 36Bungs 1T0857489
- 37Temperature Sensor 1K0907543E
Vehicle fitment table2
Europe (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| GOLF | 2003-2005 | 5 | 1 | L0L,L0R |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 5 | 1 | L0L,L0R |
Diagrams & fitment data powered by oemdiagrams.com
Air Guide Channel is fitted on: GOLF 2003-2005; Golf/Rabbit 2005-2007.
