1K1614723E Brake Pipe From Hydraulics To Brake Hose
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

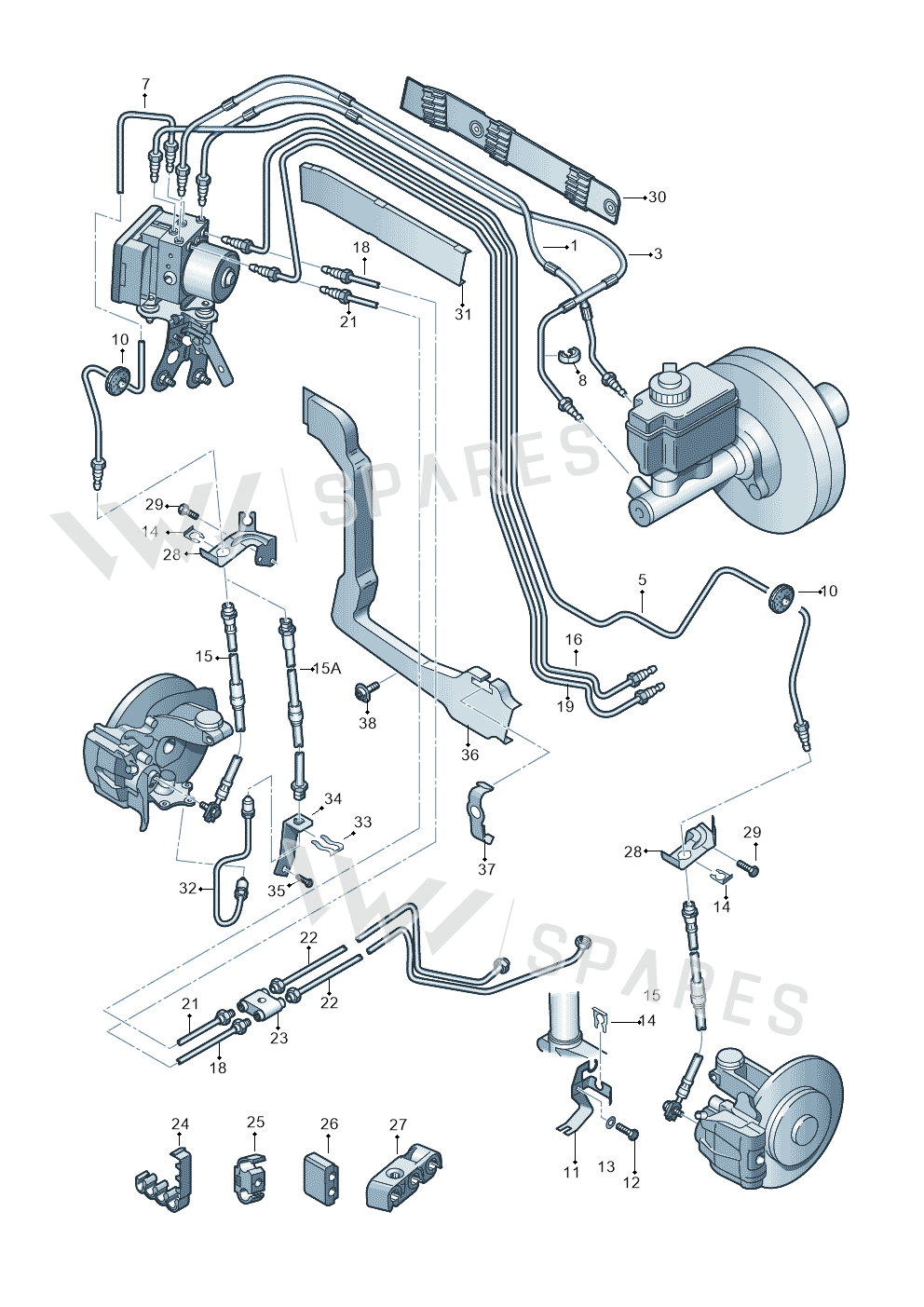

20 vehiclesBrake Pipe From Hydraulics To Brake Hose — locate Brake Pipe From Hydraulics To Brake Hose in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly48
- 1Brake Pipe 1K2614739A
- 1Brake Pipe 1K1614739D
- 1Brake Pipe 1K2614739
- 1Brake Pipe 1K2614739C
- 3Brake Pipe 1K2614740A
- 3Brake Pipe 1K1614740D
- 3Brake Pipe 1K1614740F
- 3Brake Pipe 1K2614740C
- 5Brake PipeLeft1K2614723C
- 5Brake PipeLeft1K1614723D
- 5Brake PipeLeft1K2614723B
- 7Brake PipeRight1K2614724E
- 7Brake PipeRight1K1614724E
- 7Brake PipeRight1K1614724D
- 7Brake PipeRight1K2614724F
- 8Spacer 1J0611853A
- 10Grommet 1K0611751
- 11RetainerRight1K0611842D
- 11RetainerLeft1K0611841E
- 12Bolt N01021527
- 13Washer N01152426
- 14Bracket 191611715
- 15Brake Hose 1K0611701K
- 16Brake PipeLeft1K2614741H
- 16PartLeft1K1614741K
- 16Brake PipeLeft1K2614741S
- 16Brake PipeLeft1K1614741AA
- 18Brake LineLeft1K2614725
- 18Brake LineLeft1K1614725C
- 19Brake PipeRight1K2614742G
- 19Brake PipeRight1K1614742J
- 19Brake PipeRight1K1614742K
- 19Brake PipeRight1K2614742H
- 21Brake LineRight1K2614726
- 21Brake LineRight1K1614726B
- 22Brake LineRight1K0614742L
- 22Brake LineLeft1K0614741K
- 24Bracket 1J0611797E
- 25Clip 8K0611797D
- 26Bracket 1H0611797
- 27Retainer 8K0611797E
- 28Retainer 1K0611845B
- 28Retainer 1K0611845A
- 29Bolt N90245210
- 30Cover 1K2611716A
- 30Cover 1K1611716A
- 30Cover 1K1611716
- 30Cover 1K2611716
Vehicle fitment table20
Europe (16)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Altea XL Reference | 2013-2013 | 5 | 1 | L0L | |
| Altea XL Reference | 2010-2013 | 5 | 1 | L0L | |
| Jetta Vagon 08> | 2008- | 5 | 1 | 1AC | |
| GOLF PLUS 08> | 2007- | 5 | 1 | PR:1AC | L0L |
| GOLF VARIANT 07> | 2007- | 5 | 1 | L0L | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 5 | 1 | L0L | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 5 | 1 | L0L | |
| ALTEA 07> | 2006- | 5 | 1 | L0L | |
| GOLF PLUS 05> | 2005- | 5 | 1 | PR:1AC | L0L |
| JETTA 06> | 2005- | 5 | 1 | L0L | |
| LEON 06> | 2005- | 5 | 1 | L0L | |
| Audi A3/S3/quattro | 2005-2007 | 5 | 1 | L0L | |
| TOLEDO 05> | 2004- | 5 | 1 | L0L | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 5 | 1 | D | |
| ALTEA | 2004-2006 | 5 | 1 | L0L | |
| GOLF | 2003-2005 | 5 | 1 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 5 | 1 | ||
| OCTAVIA "CN."07> | 2007- | 5 | 1 | ||
| Jetta "USA"05> | 2005- | 5 | 1 | 1AC | |
| Golf/Rabbit | 2005-2007 | 5 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Brake Pipe From Hydraulics To Brake Hose is fitted on: Altea XL Reference 2013-2013; Altea XL Reference 2010-2013; Jetta Vagon 08> 2008-; GOLF PLUS 08> 2007-; GOLF VARIANT 07> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; ALTEA 07> 2006-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; LEON 06> 2005-; Audi A3/S3/quattro 2005-2007; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; GOLF 2003-2005; Golf/Rabbit 08> 2007-; OCTAVIA "CN."07> 2007-; Jetta "USA"05> 2005-; Golf/Rabbit 2005-2007.
