1Q0201607C Extraction Unit With Metering Pump
- 1Q0201607CThis pageNot stocked
Feb 2017 - 1Q0201607JCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 476 g
- Shipping size (L × W × H)
- 59 × 36 × 30 cm
- Customs (HS) code
- 87089997
Parts diagram & fitment

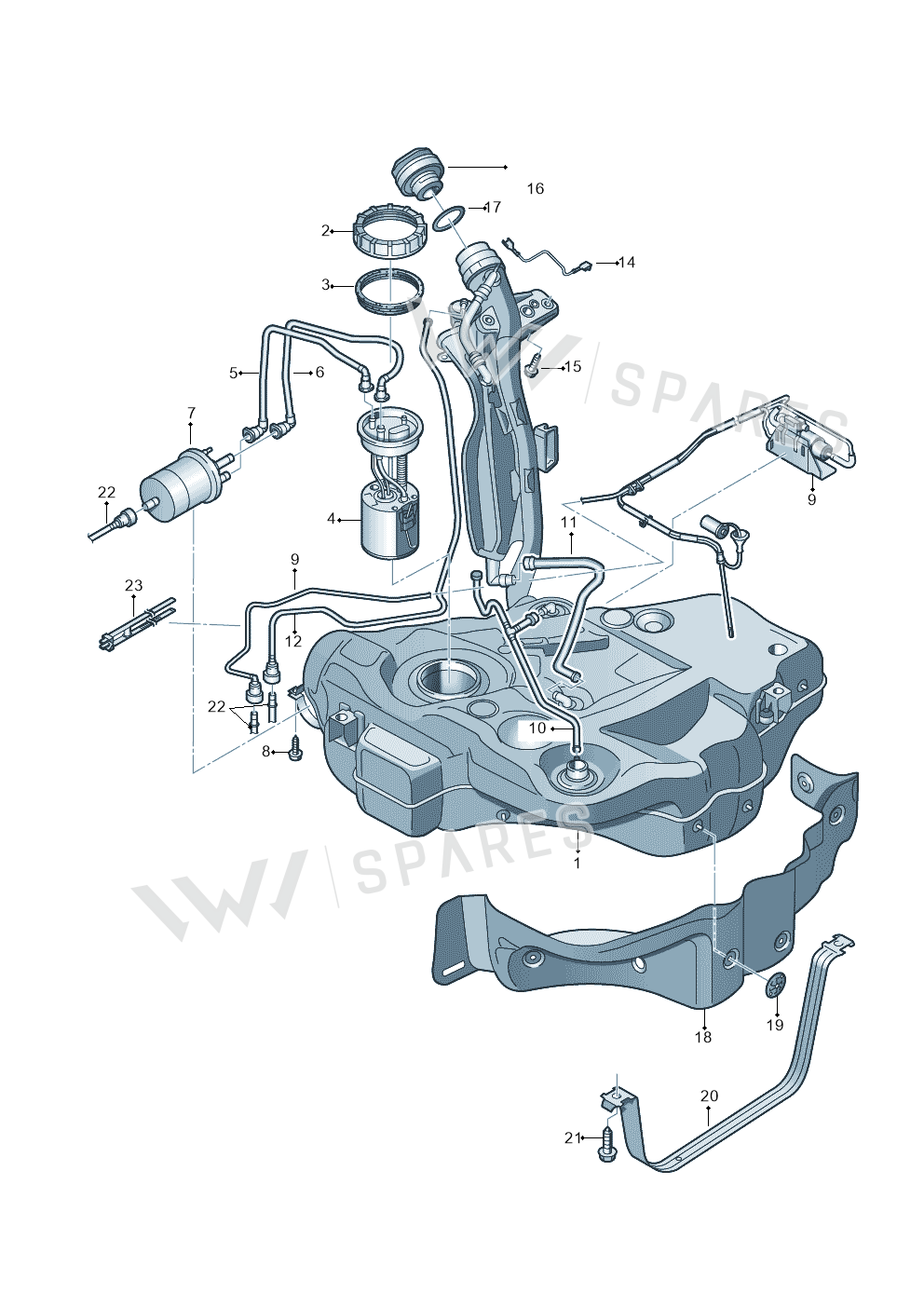

1 vehicleExtraction Unit With Metering Pump — locate Extraction Unit With Metering Pump in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Fuel Tank 1K0201060GT
- 1Fuel Tank 1K0201060HE
- 2Part 1K0201375
- 5Fuel Line 1K0201293B
- 6Fuel Line 1K0201294B
- 7Filter 1K0201051K
- 8Screw N90496802
- 9Part 1Q0201607J
- 10Line 1K0201995F
- 11Line 1K0201993AF
- 12Part 1K0201931G
- 14Line 1J0201142A
- 15Bolt N10192402
- 16Part 6RU201550A
- 17Seal Ring 1K0201557A
- 18Heat ShLeft1Q0201307C
- 19Washer N90335005
- 20Strap 1K0201656C
- 21Bolt N10416003
- 23Binder 4A0820199
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Golf Cabriolet | 2011-2016 | 9 |
Diagrams & fitment data powered by oemdiagrams.com
Extraction Unit With Metering Pump is fitted on: Golf Cabriolet 2011-2016.
