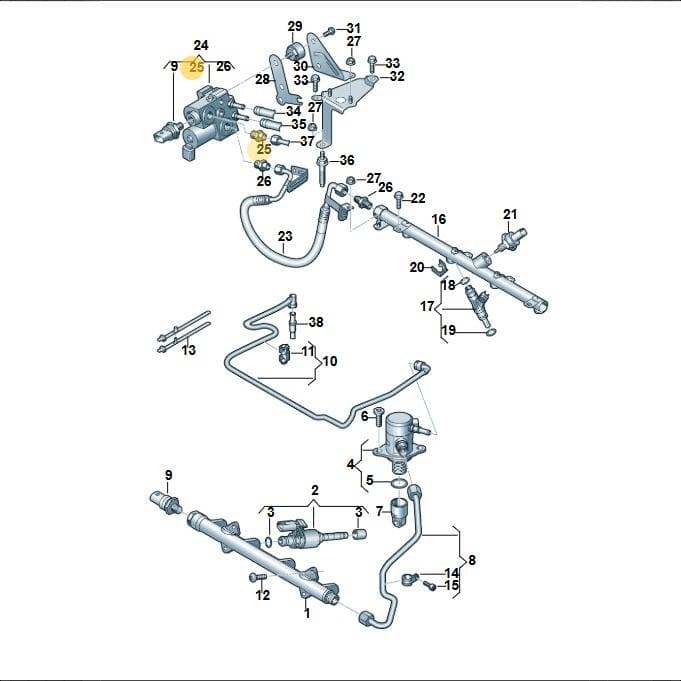

Number 25 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Pipe Insert, part number 1S0201287B. This part connects or seals sections of piping within the fuel system. It is located at position 25 in the diagram. The insert has a length of 0.034 meters and a width of 0.018 meters. Genuine OEM pipe inserts are crucial for maintaining the integrity of fuel lines, preventing leaks and ensuring proper system function.
Catalogue entry: INSERT 6MM.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3.4 × 1.8 × 1.8 cm
- Shipping weight
- 0.03 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Length
- 6 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

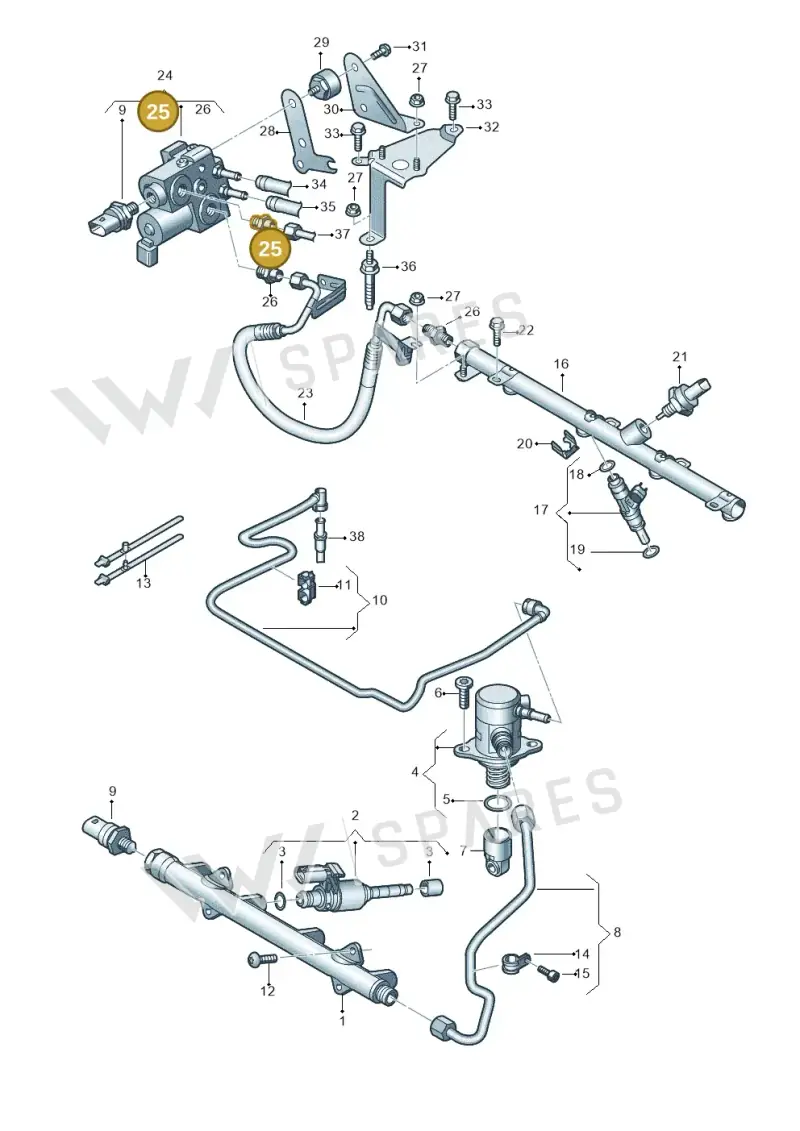

12 vehiclesPipe Insert — locate 1S0201287B Volkswagen Pipe Insert | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 1Rail 05E133320
- 2Valve 04E906036AN
- 3Repair Kit 05E906907
- 4Pump 05E127027D
- 5Seal Ring WHT005184
- 6Bolt N91219101
- 7Tappets 06L109311
- 8Pipe 05E130241A
- 9Part 04C906054C
- 9Sensor 06J906051F
- 9Sensor 06J906054J
- 10Hose 05E133723AG
- 10Hose 05E133723BA
- 10Hose 05E133723K
- 11Bracket 5Q0133687C
- 12Bolt N10156206
- 14Clamp N91275301
- 15Screw N10546403
- 16Rail 05E133317A
- 17Gas Valve 03C906039B
- 18Seal Ring 07C906149
- 19Seal Ring 06A906149B
- 20Clip 06A133047A
- 21Sensor 04E906054B
- 22Screw N10473402
- 23Fuel Line 5Q0133321G
- 24Regulator 5Q0906011B
- 24Regulator 5Q0906011C
- 26Insert 1S0201287C
- 27Ut Hexagon Flange Nut Self-locking Hexagon N91205301
- 28Bracket 5Q0133687S
- 29Rubber Bush 1T0959209
- 30Retaining 5Q0906109E
- 31Screw N10284905
- 32Retaining 5WA906279
- 33Bolt N91096801
Vehicle fitment table12
Europe (12)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Leon style | 2019- | 25 | 1 |
| Kamiq | 2019- | 25 | 1 |
| Octavia | 2019-2024 | 25 | 1 |
| Golf 2.0 BlueMotion | 2019-2024 | 25 | 1 |
| Audi A3 Sportback | 2019-2021 | 25 | 1 |
| Arona FR | 2017- | 25 | 1 |
| Ibiza FR | 2017- | 25 | 1 |
| Polo 1.0 BlueMotion | 2017-2024 | 25 | 1 |
| Octavia | 2017-2020 | 25 | 1 |
| Leon ST Stylance | 2016-2020 | 25 | 1 |
| golf 2.0 | 2016-2020 | 25 | 1 |
| Audi A3 Sportback | 2016-2020 | 25 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
1S0201287B Volkswagen Pipe Insert | Genuine OEM is fitted on: Leon style 2019-; Kamiq 2019-; Octavia 2019-2024; Golf 2.0 BlueMotion 2019-2024; Audi A3 Sportback 2019-2021; Arona FR 2017-; Ibiza FR 2017-; Polo 1.0 BlueMotion 2017-2024; Octavia 2017-2020; Leon ST Stylance 2016-2020; golf 2.0 2016-2020; Audi A3 Sportback 2016-2020.
