1S0823509B Bonnet Lock-Lower Part
- 1S0823509BThis pageNot stocked
- 1S0823509CSuperseded
Nov 2016 - 1S0823509ECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

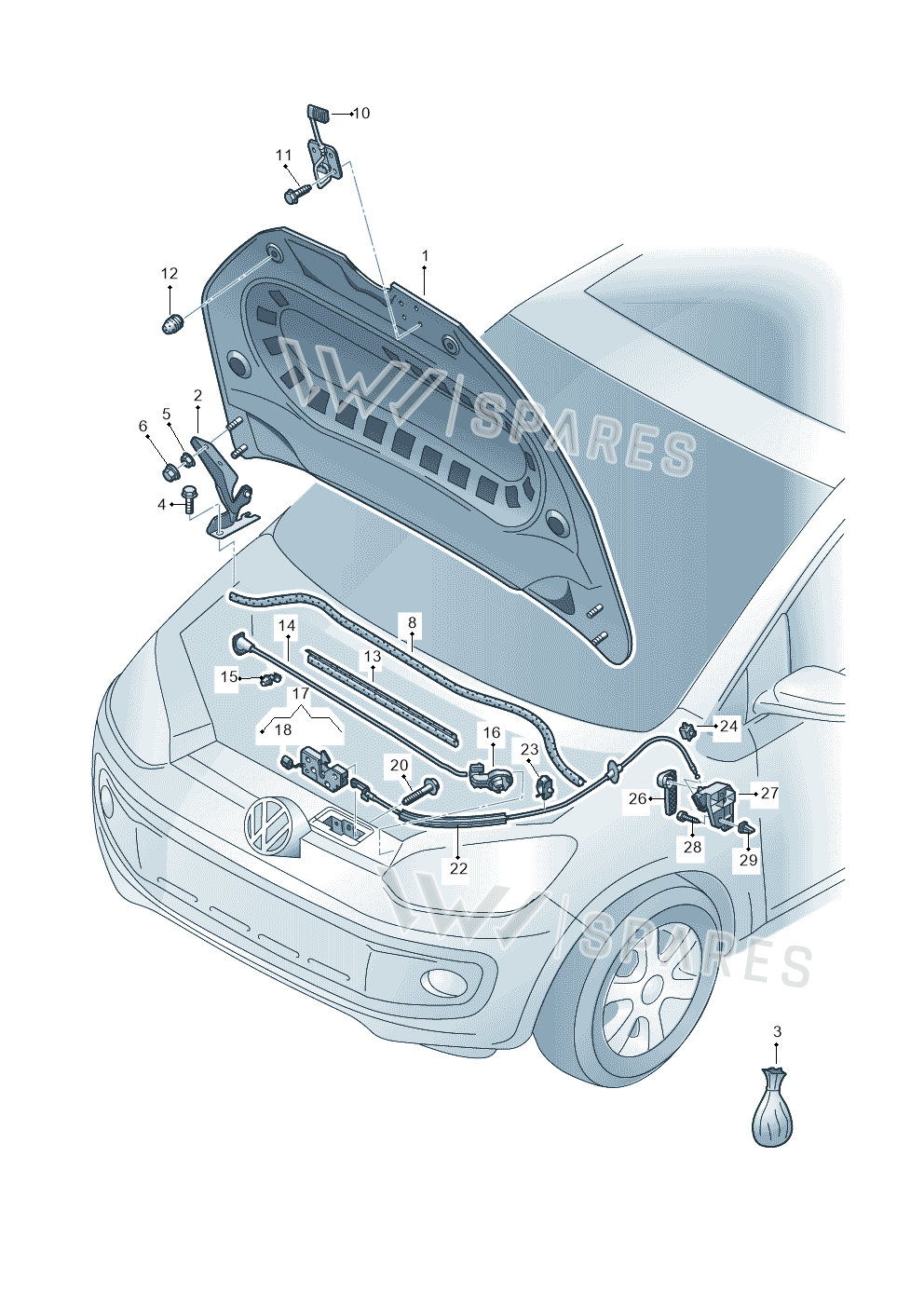

3 vehiclesBonnet Lock-lower Part — locate Bonnet Lock-Lower Part in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Bonnet 1S0823031C
- 2HingeRight1S0823302
- 2HingeLeft1S0823301
- 4Bolt N91205601
- 5Collar Nut N10609203
- 6Part N90968501
- 8Gasket 1SB823723A
- 8Gasket 1SB823723
- 10Catch Hook 1S0823186A
- 10Catch Hook 1S0823186
- 11Bolt N90820401
- 12Buffer 867827500A
- 13Gasket 1SB823737
- 14Support 1S0823363F
- 15Clip 5M0823397B
- 16Bracket 1S0823395B
- 17Lock 1S0823509C
- 18Switch 1S0953236A
- 20Bolt WHT000425
- 22Lid Cable 1SB823531
- 23Clip 321971897
- 24Clip 6Q0823567
- 26Handle 1J1823533C
- 27Bracket 1K1823633B
- 28Bolt N90974701
- 29Part N90833801
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| up! 1.0 TSI | 2013-2017 | 17 | 1 | PR:7AA+7L3 | 7AA |
| Mii reference | 2011-2019 | 17 | |||
| Citigo | 2011-2019 | 27 | 1 | 7L3 |
Diagrams & fitment data powered by oemdiagrams.com
Bonnet Lock-Lower Part is fitted on: up! 1.0 TSI 2013-2017; Mii reference 2011-2019; Citigo 2011-2019.
