1T0809857BGRU Tank Flap (Primed)
- 1T0809857BGRUThis pageNot stocked
Aug 2007 - 1T0809857DGRUNot stocked
Jun 2010 - 1T0809857FGRUCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

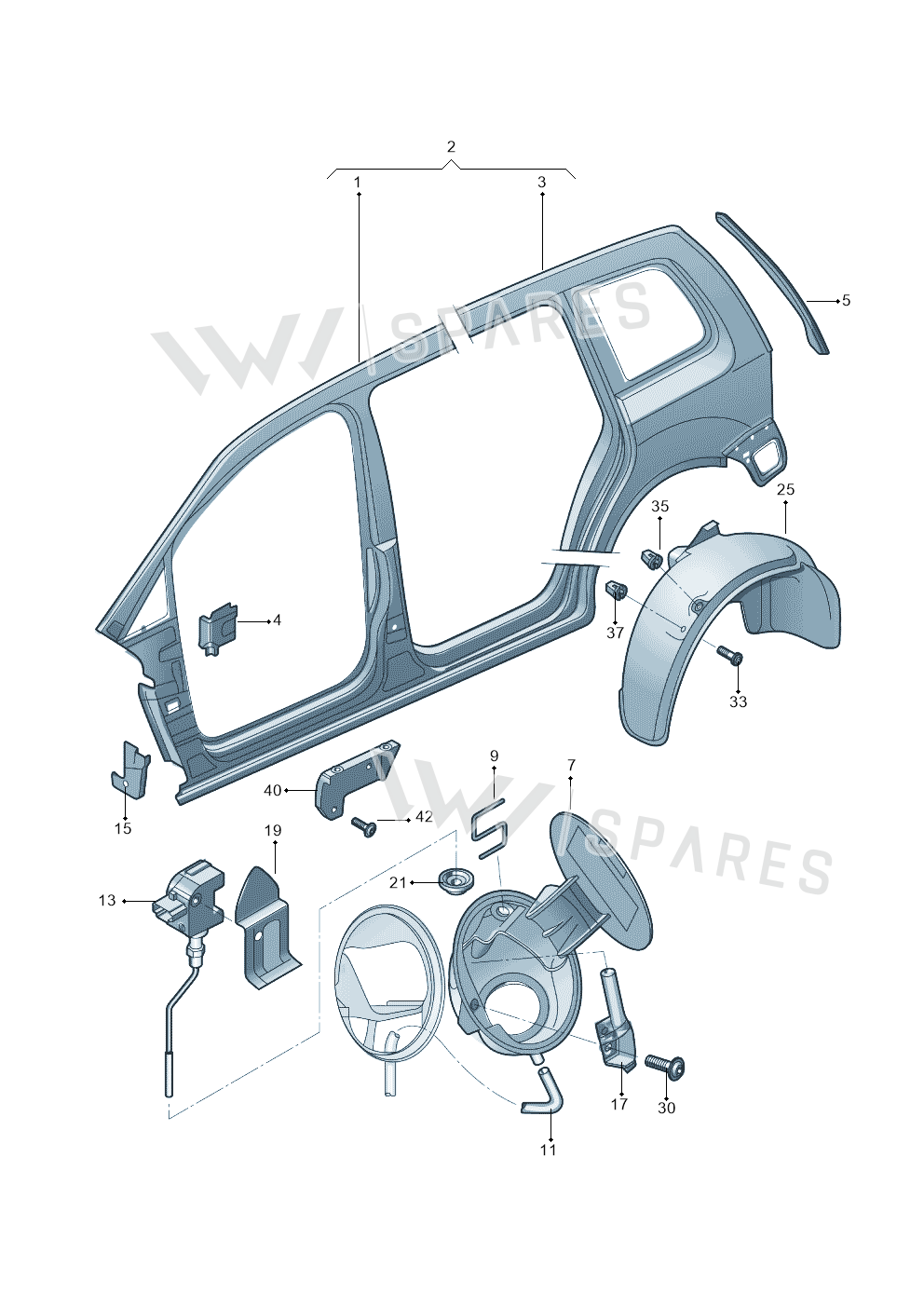

1 vehicleTank Flap (Primed) — locate Tank Flap (Primed) in the official exploded view and explore the surrounding assembly.
You are ordering the primed version — 1T0809857BGRU. The diagram shows its base part number 1T0809857B.
Parts in this assembly30
- 1SectionRight1T0809836A
- 1PartLeft1T0809835A
- 2Side PartLeft1T0809605C
- 2Side PartRight1T0809606C
- 2Side PartLeft1TD809605
- 2Side PartRight1TD809606
- 3SectionRight1T0809844A
- 3SectionLeft1T0809843
- 4ReinforceRight1T0810210C
- 4ReinforceLeft1T0810209C
- 5Seal ChannelRight1T0809644A
- 5Seal ChannelLeft1T0809643A
- 7Tank Flap 1T0809857B
- 11Hose 3D0809937B
- 13Element 1T0810773A
- 15PlateRight1T0810844
- 15PlateLeft1T0810843
- 17Sleeve 1T0810899B
- 19BracketRight1T0810931
- 21Seal Ring 3B0810911A
- 25LinerRight1T0810972F
- 25LinerLeft1T0810971D
- 30Bolt N90918701
- 33Bolt N10354602
- 33Bolt N10354601
- 35Part N10516801
- 37Part 6N0809966A
- 40BracketRight1T0810334A
- 40BracketLeft1T0810333A
- 42Bolt N90949201
Vehicle fitment table1
Other markets (1)
| Vehicle | Years | Pos. |
|---|---|---|
| TOURAN (SVW) "CN"04> | 2004- | 7 |
Diagrams & fitment data powered by oemdiagrams.com
Tank Flap (Primed) is fitted on: TOURAN (SVW) "CN"04> 2004-.
