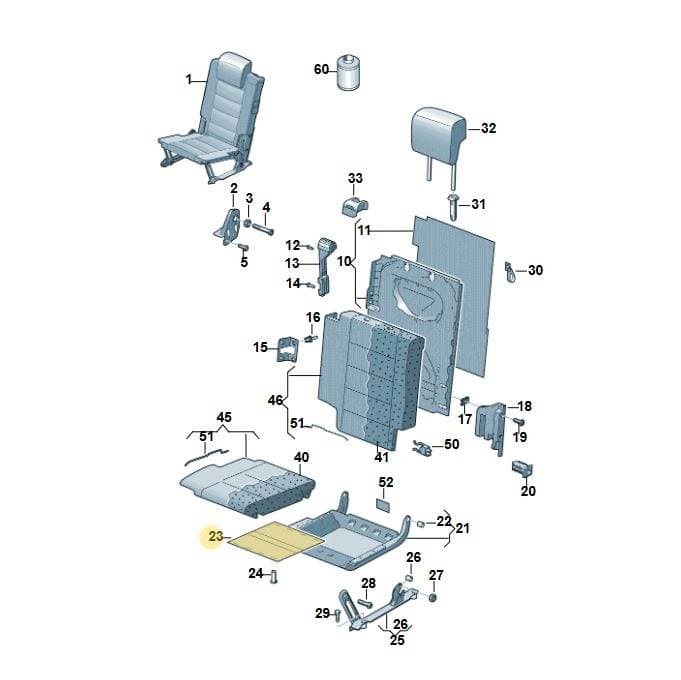

Number 23 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Spring Mat, part number 1T0885773. This part is a layer of springs or elastic material that provides cushioning and support within a seat. It is located at position 23 in the seat assembly. The mat measures 0.3m x 0.29m x 0.003m and weighs 0.204 kg. Genuine OEM spring mats are designed with precise tension and material composition for optimal comfort and durability.
Technical details
- Category
- Seats
- Customs (HS) code
- 94019990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 30 × 29 × 0.3 cm
- Shipping weight
- 0.2 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesSpring Mat — locate 1T0885773 Volkswagen Spring Mat | Seat Cushioning in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 2HooksLeft1T0885473
- 2HooksRight1T0885474
- 3Ut"hex Nut Self-locking With Washer Hex Nut N90848403
- 4Part 1T0885619
- 5Bolt N10403203
- 10Frame-backLeft1T0885501A
- 10Frame-backRight1T0885502A
- 11TrimLeft1T0885753
- 11TrimRight1T0885754
- 12Screw N10507201
- 13LockLeft1T0885737
- 13LockRight1T0885738
- 14Screw N10561802
- 15Trim 1T0885220
- 16Spring Rivet N91050001
- 17Part N90698703
- 18CoverLeft1T0885315A
- 18CoverRight1T0885316
- 18CoverLeft1T0885317A
- 18CoverRight1T0885318
- 19Bolt N91136801
- 20Bungs 1T0885397
- 21Seat FrameLeft1T0885305
- 21Seat FrameRight1T0885306
- 22Bush 1T0885097
- 25RetainerLeft1T0885865
- 25RetainerLeft1T0885865A
- 25RetainerRight1T0885866
- 25RetainerRight1T0885866A
- 27Collar Nut N90295502
- 28Screw N91049401
- 29Bolt N91025301
- 30Loop 1T0886843
- 31Guide 3B0886919
- 31Guide 3B0886919A
- 32Headrest 1T0885901P
- 32Headrest 1T0885901Q
- 32Headrest 1T0885901R
- 33Cover 1T0885219
- 33Cover 1T0885219A
- 40Seat CushLeft1T0885375
- 40Seat CushLeft1T0885375B
- 40Seat CushRight1T0885376
- 40Seat CushRight1T0885376B
- 41PaddingLeft1T0885775C
- 41PaddingLeft1T0885775D
- 41PaddingLeft1T0885775E
- 41PaddingRight1T0885776C
Vehicle fitment table6
Europe (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Touran 2.0 | 2010-2015 | 23 | 3 | |
| Touran 1.9 | 2008-2010 | 15 | 3 | |
| TOURAN | 2006- | 15 | 3 | |
| TOURAN | 2005-2006 | 15 | 3 | |
| TOURAN | 2003-2005 | 15 | 3 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| TOURAN (SVW) "CN"04> | 2004- | 15 | 3 | 5KT |
Diagrams & fitment data powered by oemdiagrams.com
1T0885773 Volkswagen Spring Mat | Seat Cushioning is fitted on: Touran 2.0 2010-2015; Touran 1.9 2008-2010; TOURAN 2006-; TOURAN 2005-2006; TOURAN 2003-2005; TOURAN (SVW) "CN"04> 2004-.
