281711249 Bracket
- 281711249This pageNot stocked
Oct 2002 - 7H0711249Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

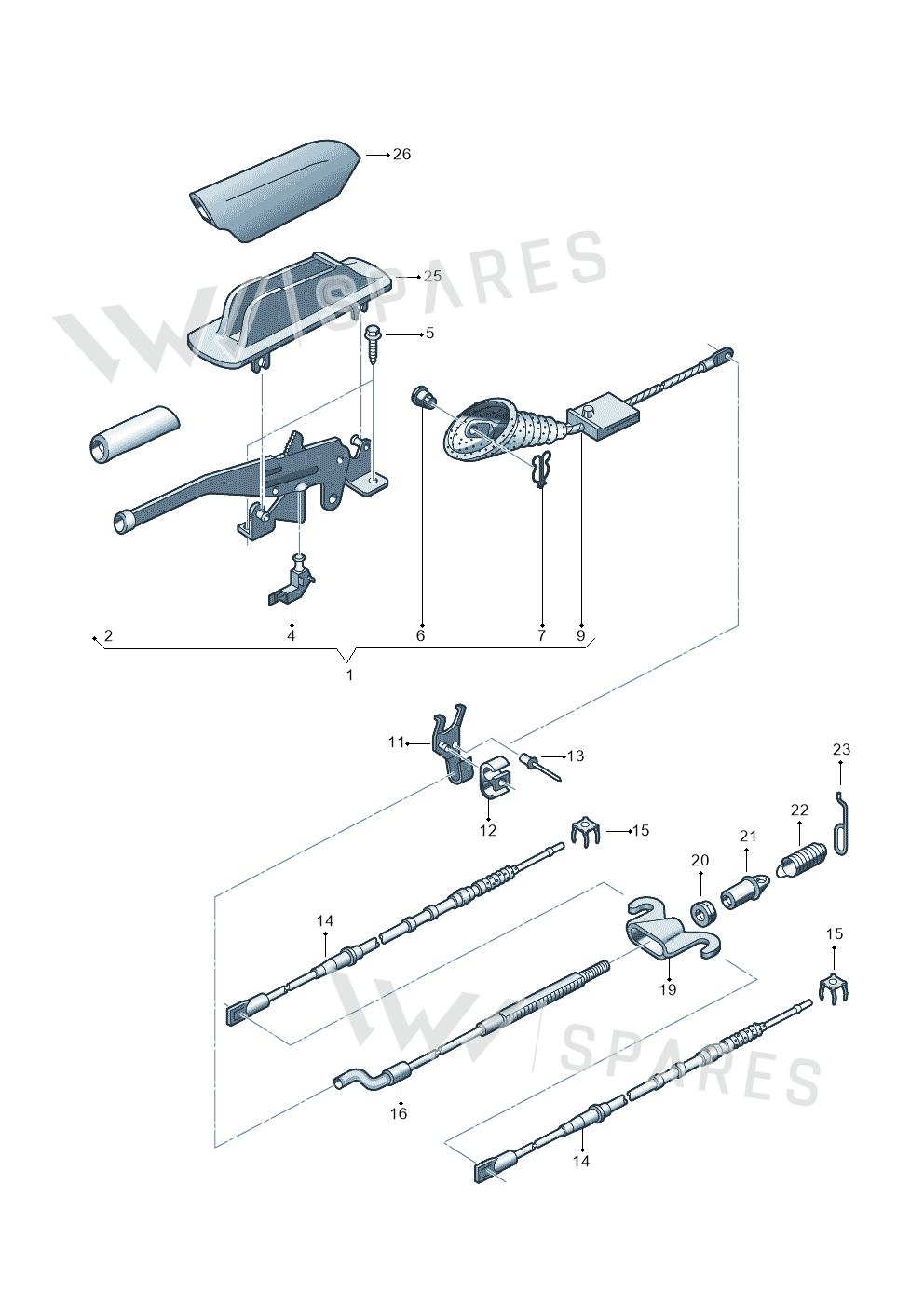

5 vehiclesBracket — locate Bracket in the official exploded view and explore the surrounding assembly.
Parts in this assembly16
- 1Part 7M3711301E
- 1Lever 7M3711301D
- 2Handle 7M3711327A
- 2Handle 7M3711327
- 4Switch 1H0947561A
- 5Bolt N0195024
- 6Part 7M0711341
- 7Part N90530101
- 9Cable 7M3711476
- 16Cable 7M3711472
- 19Lever 7M3711481
- 20Ut"hex Nut Self-locking With Washer Hex Nut N90286703
- 21Bracket 701711367
- 22Spring 701711247
- 25Trim 7M0711468B
- 26Cover 7M0711464B
Vehicle fitment table5
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| ALHAMBRA/4MOTION | 2000-2002 | 23 | 1 |
| TRANSPORTER SYNCRO | 1995-1995 | 27, 15 | 1 |
| LT, LT 4x4 (28-55) | 1982-1989 | 1 | 1 |
| LT 28-40 F>28-d-007273 | 1975-1982 | 1 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Eurovan F>>70-T 96 | 1995-1995 | 27 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Bracket is fitted on: ALHAMBRA/4MOTION 2000-2002; TRANSPORTER SYNCRO 1995-1995; LT, LT 4x4 (28-55) 1982-1989; LT 28-40 F>28-d-007273 1975-1982; Eurovan F>>70-T 96 1995-1995.
