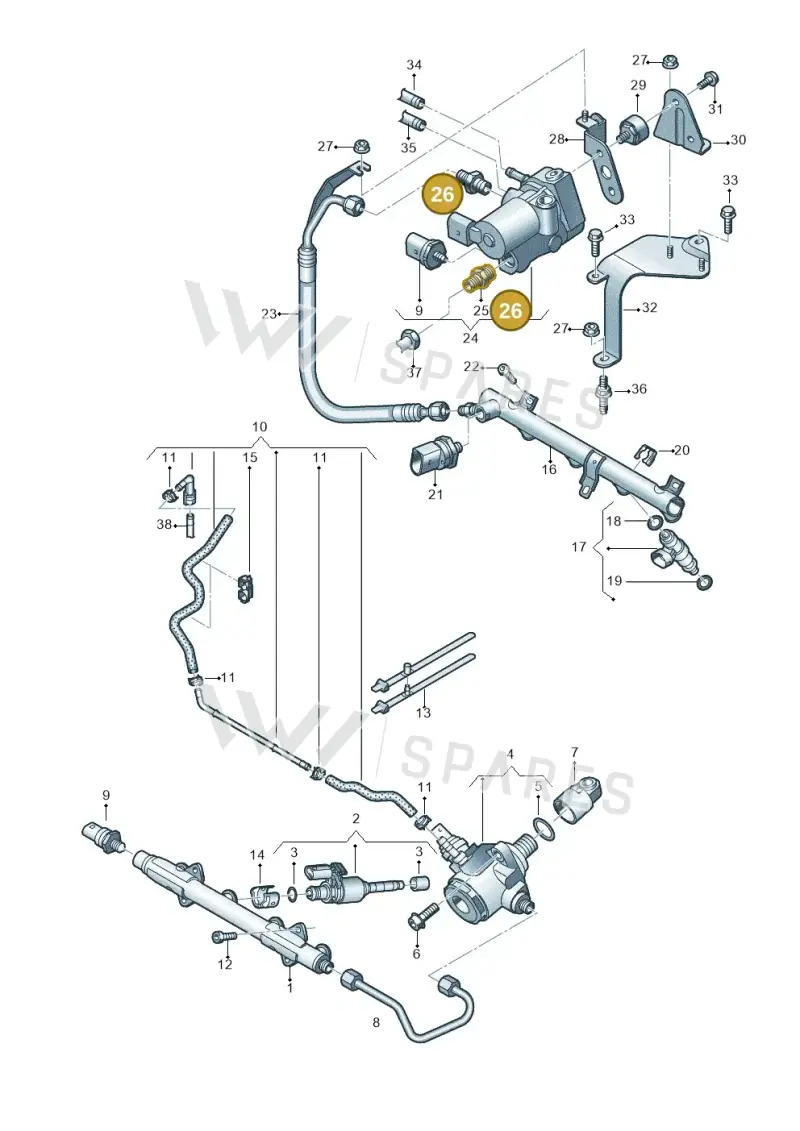

Number 22 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Line Pipe Union, part number 2K0201287A. This union is used to securely connect different sections of the fuel line pipe, ensuring a continuous and leak-free path for fuel delivery. It is an integral part of the fuel system. Weighing 0.02741 kg, this genuine OEM part provides a secure and leak-free connection in the fuel system, critical for safety and efficient fuel delivery.
Catalogue entry: CONNECTION 8MM.
Technical details
- Category
- Fuel System
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3.5 × 2.3 × 2.3 cm
- Shipping weight
- 0.03 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Length
- 8 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
26 vehiclesPipe Union — locate 2K0201287A Volkswagen Fuel Line Pipe Union | OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly35
- 1Rail 04E133320D
- 2Valve 04E906036Q
- 3Part 04E998907A
- 3Part 06H998907A
- 4Pump 04E127026AG
- 5Seal Ring WHT005184
- 6Screw N91128701
- 7Tappets 06L109311
- 8Pipe 04E130241AA
- 9Sensor 06J906051F
- 10Fuel Line 04E133723N
- 11Clamp N91020301
- 12Screw N10546403
- 13Binder 4A0820199
- 14Support Element 04E133036A
- 15Bracket 5Q0133687C
- 16Rail 04E133317F
- 17Gas Valve 03C906039A
- 17Gas Valve 03C906039B
- 18Seal Ring 07C906149
- 19Seal Ring 06A906149B
- 20Clip 06A133047A
- 21Sensor 04E906054
- 21Sensor 04E906054B
- 22Bolt WHT002603
- 23Fuel Line 5Q0133321C
- 24Regulator 1S0906011B
- 25Insert 1S0201287A
- 27Collar Nut N01508210
- 28Bracket 5Q0133687H
- 29Rubber Bush 1T0959209
- 30Retaining 5Q0906109C
- 31Bolt N10680303
- 32Retaining 5Q0906109D
- 33Bolt N10653301
Vehicle fitment table26
Europe (23)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Octavia | 2017-2020 | 26 | 1 |
| up! 1.0 BlueMotion | 2016-2023 | 22 | 1 |
| golf 2.0 | 2016-2020 | 26 | 1 |
| Leon ST Stylance | 2016-2020 | 26 | 1 |
| Audi A3 Sportback | 2016-2020 | 26 | 1 |
| caddy kombi | 2015-2020 | 26 | 1 |
| Golf Estate | 2013-2017 | 26 | 1 |
| Golf 1.4 BlueMotion | 2012-2017 | 26 | 1 |
| Octavia | 2012-2017 | 26 | 1 |
| Leon ST Stylance | 2012-2016 | 26 | 1 |
| Audi A3 Sportback | 2012-2016 | 26 | 1 |
| Mii reference | 2011-2019 | 22 | 1 |
| Citigo | 2011-2019 | 22 | 1 |
| up! BlueMotion | 2011-2016 | 22 | 1 |
| Caddy Maxi Kombi | 2010-2015 | 23 | 1 |
| Touran 2.0 | 2010-2015 | 23 | 1 |
| Passat saloon | 2010-2015 | 22 | 1 |
| passat estate | 2008-2011 | 22 | 1 |
| caddy panel van | 2008-2010 | 23, 46 | |
| Touran 1.9 | 2008-2010 | 23, 51 | 1 |
| TOURAN | 2006- | 51 | |
| TOURAN | 2005-2006 | 51 | |
| CADDY | 2004- | 23, 6 |
Other markets (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| santana | 2012-2023 | 22 | 1 |
| Lavida | 2012-2021 | 22 | 1 |
| Jetta 1.6 | 2012-2019 | 22 | 1 |
