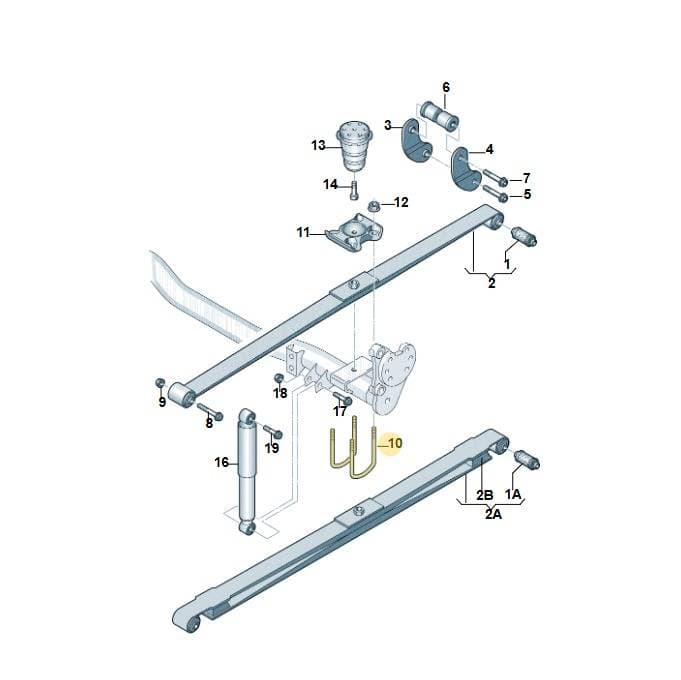

Number 10 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Spring Shackle, part number 2K0599173H. This component connects leaf springs to the vehicle frame, allowing for suspension movement. It is positioned as part 10 in the diagram. Weighing 0.229 kg with dimensions of 0.14m x 0.095m x 0.013m, its specific geometry is crucial for proper suspension articulation. Genuine OEM ensures the correct material strength and fatigue resistance for a safe and durable connection.
Catalogue entry: CLIP 130 ×4; for models with wheelbase: 2682.
Fitted with: 6K9501541 RUBB. BUSH, N10696901 BOLT, N0150816 COLLAR NUT, 2K0599173L CLIP, 2K0599175A PLATE, N10402904 COLLAR NUT.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 14 × 9.5 × 1.3 cm
- Shipping weight
- 0.23 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 0E1
- 1BA
- 1BH
- 1BJ
- 2MH
- K4A
- A9H
- A9L
- A9T
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
5 vehiclesSpring Shackle — locate 2K0599173H Volkswagen Spring Shackle | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Rubber Bush 6K9501541
- 2Part 2K0511151B
- 2Part 2K0511151N
- 2Spring 2K5511151AA
- 2Spring 2K5511151Q
- 2APart 2K0511151AD
- 2BBuffer 2K0511155A
- 3StrapLeft2K0599193
- 3StrapRight2K0599194
- 4StrapRight2K0599196A
- 4StrapLeft2K0599195A
- 5Bolt N10696901
- 6Rubber Bush 2K0511171B
- 7Bolt N91002102
- 9Collar Nut N0150816
- 10Clip 2K0599173J
- 10Clip 2K0599173L
- 11Plate 2K0599175A
- 12Ut Hexagon Nut Self-locking Hexagon Nut N90942901
- 13Buffer 2K0511153C
- 13Buffer 2K0511153E
- 13Buffer 2K0511153B
- 13Buffer 2K0511153D
- 14Screw N90441103
- 16Shock Abs 2K0513029N
- 16Shock Abs 2K0513029M
- 16Shock Abs 2K0513029B
- 16Shock Abs 2K0513029P
- 17Bolt N10262202
- 19Bolt WHT003467
Compatible / alternative parts(1)
Vehicle fitment table5
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| caddy kombi | 2015-2020 | 10 | 4 | PR | :A8 |
| Caddy Maxi Kombi | 2010-2015 | 10 | 4 | PR | :A8 |
| caddy panel van | 2008-2010 | 10 | 4 | PR:A9J+1BA, | |
| CADDY | 2004- | 10 | 4 | A9M |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| CADDY-FAW "CN" 05> | 2005- | 10 | 1 |
