2K0816721A Refrigerant Line
- 2K0816721AThis pageNot stocked
Feb 2018 - 2K0816721DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

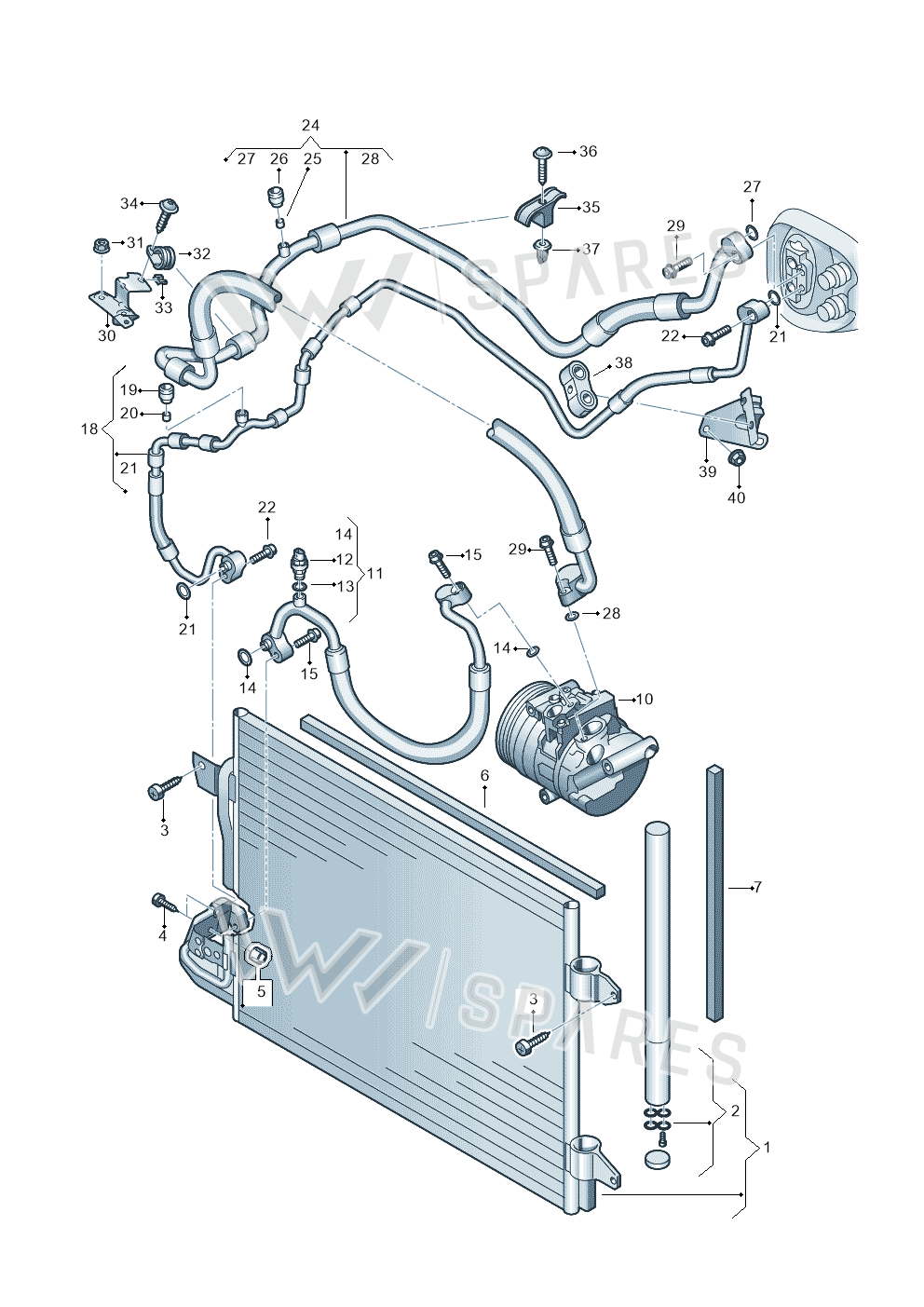

1 vehicleRefrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1A C Conden 1K0820411AH
- 2Insert 5K0298403
- 2Insert 1K0298403A
- 3Bolt N90817003
- 4Screw N10553902
- 5Bracket 1K0820758
- 6Seal 321820061D
- 7Seal 321819017
- 11Hose 1K0820721CA
- 11Line 2K0816721
- 11Line 2K0816721B
- 11Line 2K0816721C
- 11Line 2K0816721D
- 11Line 2K0816721E
- 12Sensor 5K0959126
- 13Seal Ring 8E0260749
- 14Seal Ring 4E0260749A
- 15Screw N10414402
- 18Hose 2K2820741
- 18Hose 1T0820741AB
- 18Hose 2K1820741
- 18Hose 2K0820741C
- 18Hose 2K1816741A
- 18Hose 2K2816741A
- 19Part 3C0820581
- 19Protective Cap 5Q0816581
- 19Protective Cap 5Q0816581A
- 20Valve 8E0820855
- 21Seal Ring 3D0260749C
- 24Hose 2K1820743B
- 24Hose 2K2820743
- 24Hose 2K2820743A
- 24Hose 2K2820743B
- 24Hose 1T0820743BR
- 24Hose 2K1820743
- 24Hose 2K1820743A
- 24Hose 2K1820743C
- 24Hose 2K1816743
- 24Hose 2K1816743A
- 24Hose 2K1816743B
- 24Hose 2K1816743C
- 24Hose 2K2816743C
- 24Hose 2K2816743D
- 24Hose 2K2816743E
- 26Part 3C0820231
- 26Protective Cap 5Q0816231
- 27Seal Ring 4E0260749B
- 28Seal Ring 8E0260749C
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Remark | PR |
|---|---|---|---|---|
| caddy kombi | 2015-2020 | 11 | 1 | PR |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Line is fitted on: caddy kombi 2015-2020.
